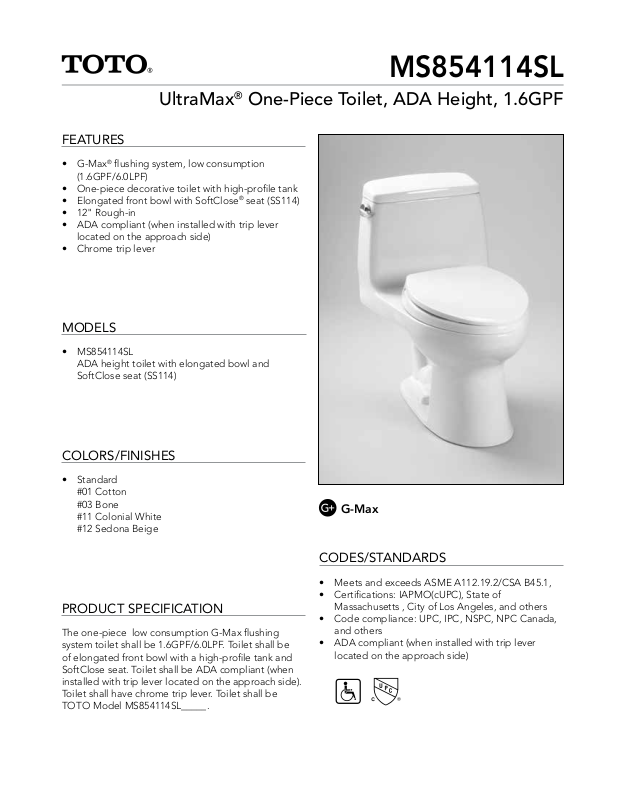

UltraMax® One-Piece Toilet, ADA Height, 1.6GPF
FEATURES
• G-Max® flushing system, low consumption
(1.6GPF/6.0LPF)
• One-piece decorative toilet with high-profile tank
• Elongated front bowl with SoftClose® seat (SS114)
• 12" Rough-in
• ADA compliant (when installed with trip lever
located on the approach side)
• Chrome trip lever
MODELS
• MS854114SL
ADA height toilet with elongated bowl and
SoftClose seat (SS114)
MS854114SL
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
PRODUCT SPECIFICATION
The one-piece low consumption G-Max flushing
system toilet shall be 1.6GPF/6.0LPF. Toilet shall be
of elongated front bowl with a high-profile tank and
SoftClose seat. Toilet shall be ADA compliant (when
installed with trip lever located on the approach side).
Toilet shall have chrome trip lever. Toilet shall be
TOTO Model MS854114SL_____.
G-Max
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
MS854114SL
UltraMax® One-Piece Toilet, ADA Height, 1.6GPF
SPECIFICATIONS
• Water Use 1.6 GPF/6.0 LPF
• Flush System G-Max
• Min. Water Pressure 8 psi (static)
• Water Surface 10-5/16" x 8-1/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 99 lbs.
• Shipping Dimensions 32"L x 20"W x 17-3/4" H1 x
®
28-3/4" H2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifications are subject to change without notice
# SS-00370 v.05
