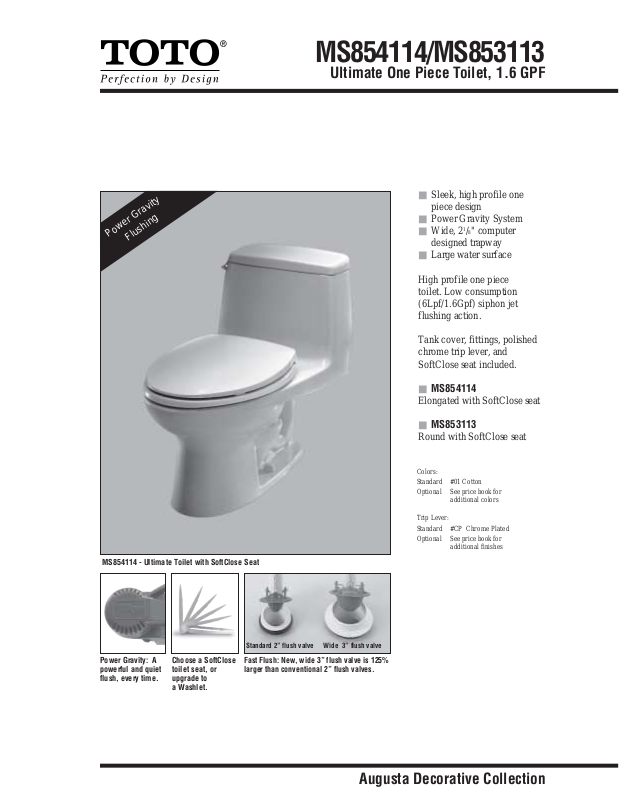

Page 1
■ Sleek, high profile one
piece design
■ Power Gravity System
■ Wide, 21/8" computer
designed trapway
■ Large water surface
High profile one piece
toilet. Low consumption
(6Lpf/1.6Gpf) siphon jet
flushing action.
Tank cover, fittings, polished
chrome trip lever, and
SoftClose seat included.
■ MS854114
Elongated with SoftClose seat
■ MS853113
Round with SoftClose seat
MS854114/MS853113
Ultimate One Piece Toilet, 1.6 GPF
MS854114 - Ultimate Toilet with SoftClose Seat
Augusta Decorative Collection
Power Gravity
Flushing
Power Gravity: A
powerful and quiet
flush, every time.
Fast Flush: New, wide 3” flush valve is 125%
larger than conventional 2” flush valves.
Wide 3” flush valveStandard 2” flush valve
Choose a SoftClose
toilet seat, or
upgrade to
a Washlet.
Colors:
Standard #01 Cotton
Optional See price book for
additional colors
Trip Lever:
Standard #CP Chrome Plated
Optional See price book for
additional finishes
Page 2
5-1/2"
(140mm)
12"(305mm)
27-1/8"
(690mm)
16-1/2"(420mm)
1"
(25mm)
18-1/2" / 16-1/2" (470/420mm)
28-1/8" / 26-1/4" (715/665mm)
14-5/8"
(370mm)
1/2" supply
9-7/8" (250mm)
5-1/8" (130mm)
Finished Floor
Finished Floor
Finished Wall
5"*
(127mm)
MS854114/MS853113 - Ultimate Toilet
■PERFORMANCE
The TOTO Power Gravity low consumption one
piece toilet received high ratings during
ANSI/ASME testing at independent laboratories.
Designed with a powerful siphon jet flushing
action, the bowl offers a large water surface and a
100% glazed trapway.
■SPECIFICATIONS
Water Use: 6Lpf/1.6 Gpf
Flush System: Gravity Feed
(Power Gravity System)
Min. Water Pressure:
8 psi (Static)
Water Surface: 10" x 8"
Trap Dia.: 2-1/8"
Rough-in: 12"
Trap Seal: 2-3/8"
Warranty: Five Year Limited Warranty
Material: Vitreous China
Shipping Weight:
MS854114/MS853113 89 lbs.
(Includes SoftClose Seat)
Shipping Dimensions:
MS854114/MS853113
303/4"L x 181/8"W x 271/8"H
Fixture dimensions and hydraulic performance meet
or exceed ANSI/ASME standard A112.19.2M and
CAN/CSA B 45 requirements.
Listing / Approvals: IAPMO/UPC, CSA, City of Los
Angeles, State of Massachusetts, and others.
These dimensions and specifications are subject to
change without notice.
U.S. Patent: D379.496 D406.329
5.850.639 5.918.325
MS854114/MS853113
Ultimate One Piece Toilet, 1.6 GPF
(MS854114 / MS853113)
(MS854114 / MS853113)
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (770) 282-8686 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 02/03 #A10080
Printed on recycled paper
REV 02/03
