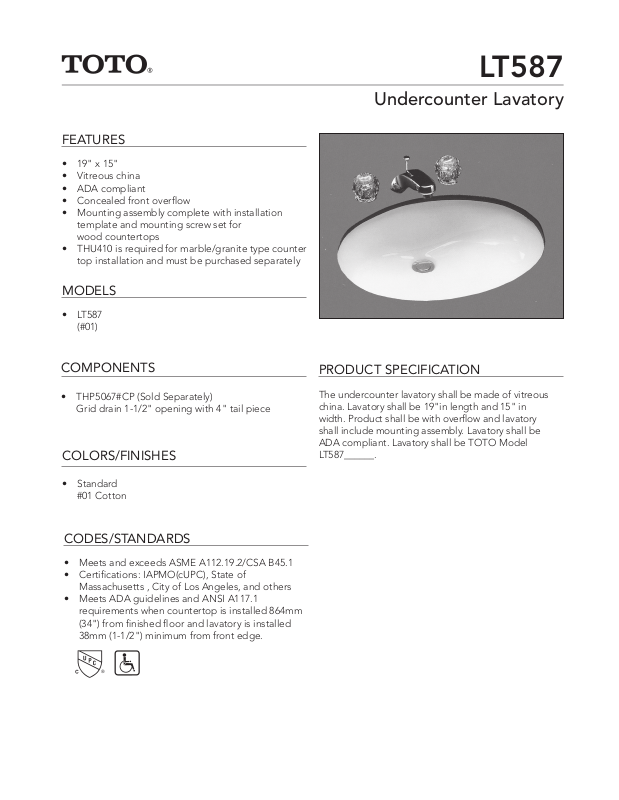

Page 1
FEATURES
• 19" x 15"
• Vitreous china
• ADA compliant
• Concealed front overflow
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
MODELS
• LT587
(#01)
LT587
Undercounter Lavatory
COMPONENTS
• THP5067#CP (Sold Separately)
Grid drain 1-1/2" opening with 4" tail piece
COLORS/FINISHES
• Standard
#01 Cotton
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
38mm (1-1/2") minimum from front edge.
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 19"in length and 15" in
width. Product shall be with overflow and lavatory
shall include mounting assembly. Lavatory shall be
ADA compliant. Lavatory shall be TOTO Model
LT587______.
Page 2
LT587
8"
(203mm)
9"
(229mm)
27"
(686mm)
34"
(864mm)
18"
(457mm)
6"
(152mm)
Mounting Hardware
Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 21-1/4"W x 17-1/4"D
• Basin 19"W x 15"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 19.5 lbs.
• Shipping Dimensions 18-1/2"L x 22"W x 8-1/8"H
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
15"
(381mm)
1-1/8" (28mm)
(305mm)
*13-1/8"
(333mm)
1-1/8"
(28mm)
1-1/8" (28mm)
*12"
19" (483mm)
18" (457mm)
*8" (203mm)
14"
(355mm)
*2-1/2" (63mm)
2-5/8"
(68mm)
1-1/8" (28mm)
*5-1/8" (131mm)
1/2" (12mm)
7-1/2"
(191mm)
ADA Compliance Check
24” (610mm)
17-1/4” (437mm)
1-1/2”
(37mm)
27”
(686mm)
6”
(152mm)
1/4” (6mm)
9”
(229mm)
34”
(864mm)
*Suggested Dimension
These dimensions and specifications are subject to change without notice
17”
(432mm)
