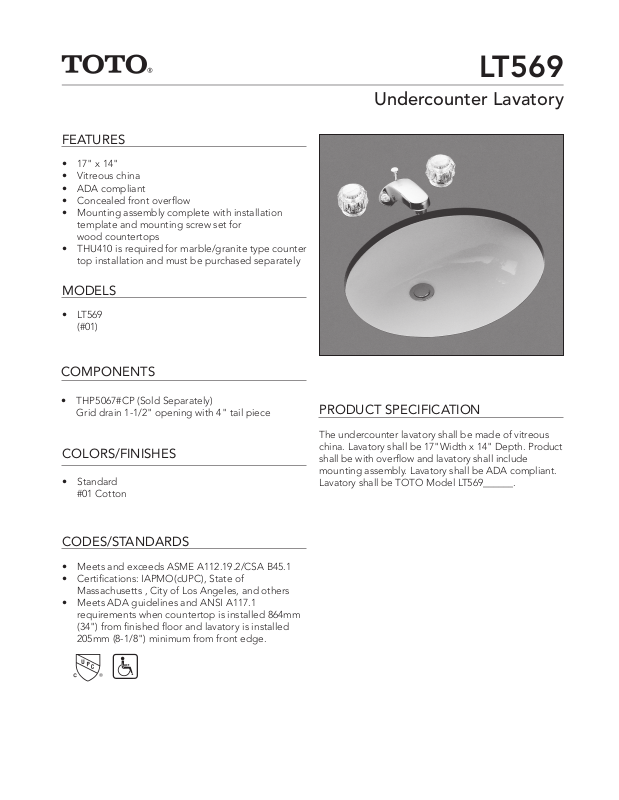

FEATURES
• 17" x 14"
• Vitreous china
• ADA compliant
• Concealed front overflow
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
MODELS
• LT569
(#01)
LT569
Undercounter Lavatory
COMPONENTS
• THP5067#CP (Sold Separately)
Grid drain 1-1/2" opening with 4" tail piece
COLORS/FINISHES
• Standard
#01 Cotton
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 17"Width x 14" Depth. Product
shall be with overflow and lavatory shall include
mounting assembly. Lavatory shall be ADA compliant.
Lavatory shall be TOTO Model LT569______.
Page 2

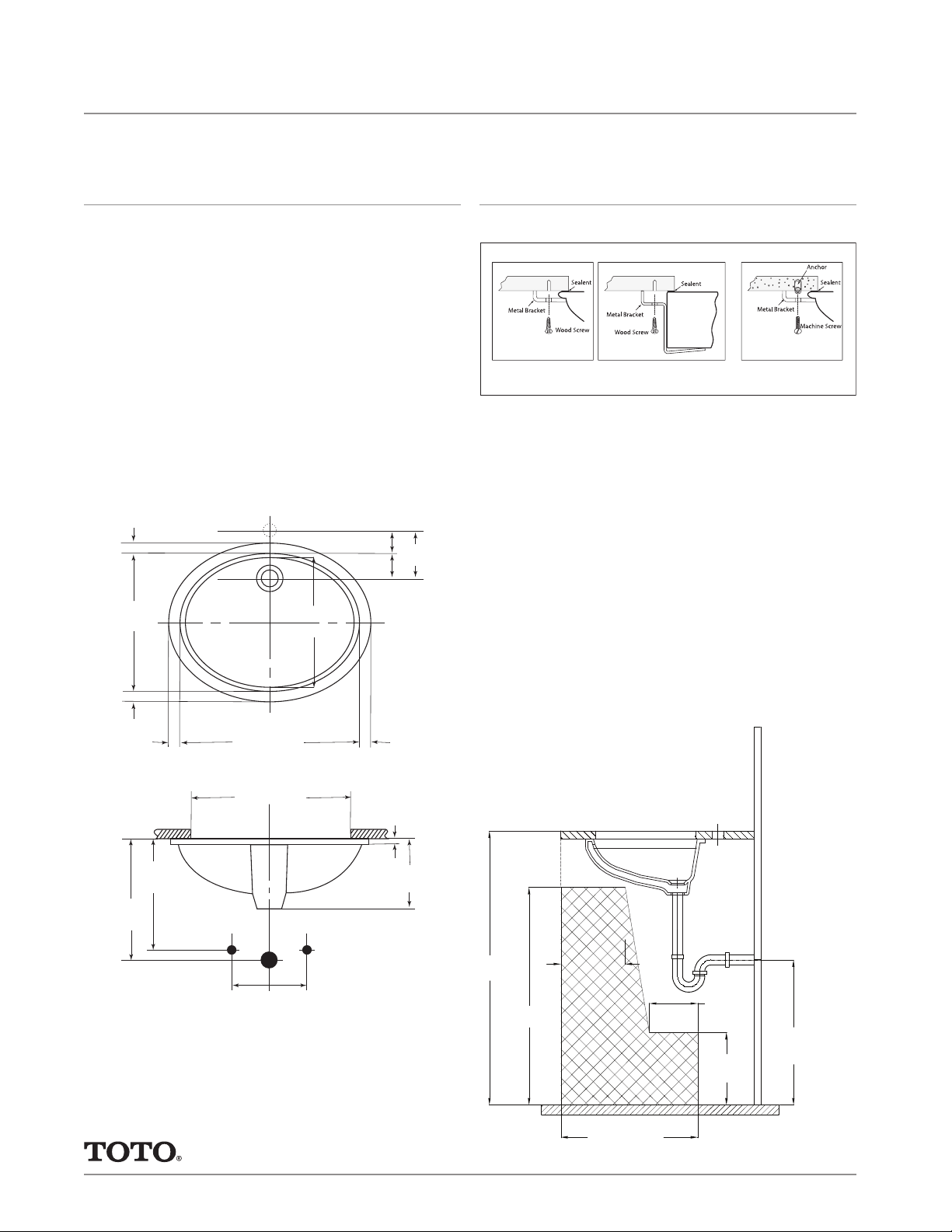

LT569
(432mm)
Mounting Hardware
Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 19-1/4"W x 16-1/4"D
• Basin 17"W x 14"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 17.4 lbs.
• Shipping Dimensions 22"W x 8-1/2"H x 18-1/2"L
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
14"
(355mm)
1-1/8" (28mm)
*13-1/8"
(333mm)
1-1/8" (28mm)
1-1/8" (28mm)
*12"
(305mm)
17" (432mm)
16" (406mm)
*8" (203mm)
2-1/2" (63mm)
2-5/8"
(68mm)
13"
(329mm)
1-1/8" (28mm)
*Suggested Dimension
5-1/8"
(131mm)
1/2" (12mm)
7-1/2"
(191mm)
ADA Compliance Check
34"
(864mm)
27"
(686mm)
8"
(203mm)
6"
(152mm)
9"
(229mm)
18"
(457mm)
17"
These dimensions and specifications are subject to change without notice
# SS-00333 v.06Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO
