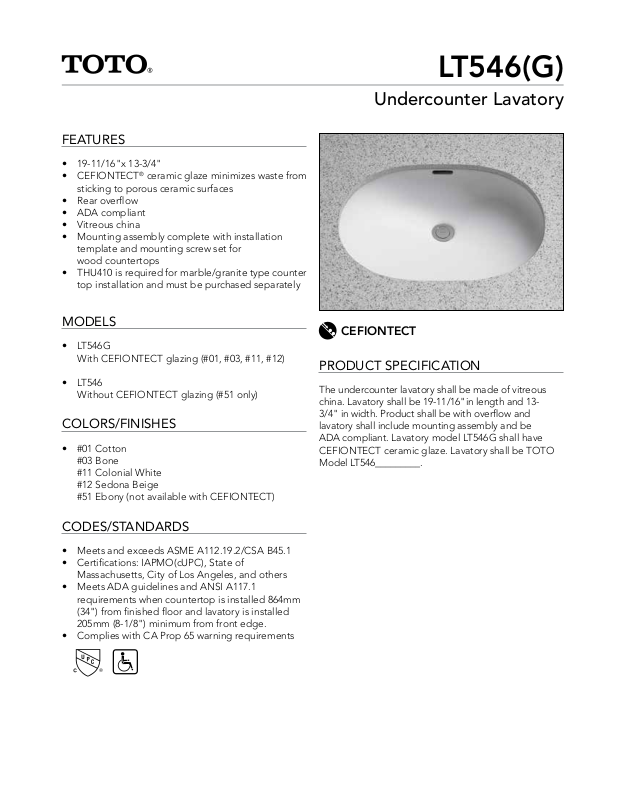

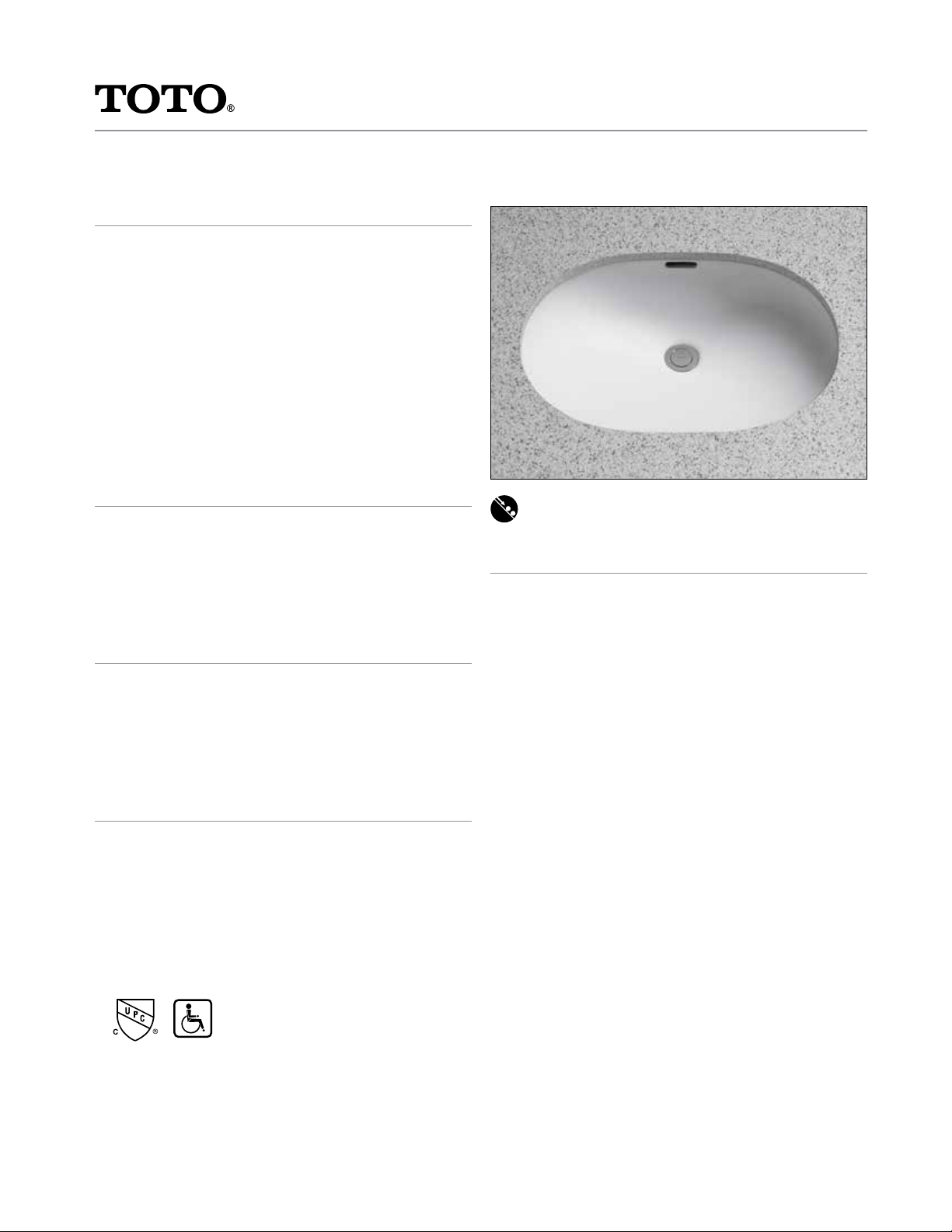

FEATURES
• 19-11/16"x 13-3/4"
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces
• Rear overflow
• ADA compliant
• Vitreous china
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
LT546(G)
Undercounter Lavatory
MODELS
• LT546G
With CEFIONTECT glazing (#01, #03, #11, #12)
• LT546
Without CEFIONTECT glazing (#51 only)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CEFIONTECT)
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.
• Complies with CA Prop 65 warning requirements
CEFIONTECT
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 19-11/16"in length and 133/4" in width. Product shall be with overflow and
lavatory shall include mounting assembly and be
ADA compliant. Lavatory model LT546G shall have
CEFIONTECT ceramic glaze. Lavatory shall be TOTO
Model LT546_________.
Page 2
LT546(G)
17" [432mm]
Mounting Hardware
Undercounter Lavatory
SPECIFICATIONS
• Waste 1-1/4" O.D.
• Size 21-5/8"W x 15-3/4"D
• Basin 19-11/16"W x 13-3/4"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 20.8 lbs.
• Shipping Dimensions 22-5/8"W x 17"L x 9-5/8"H

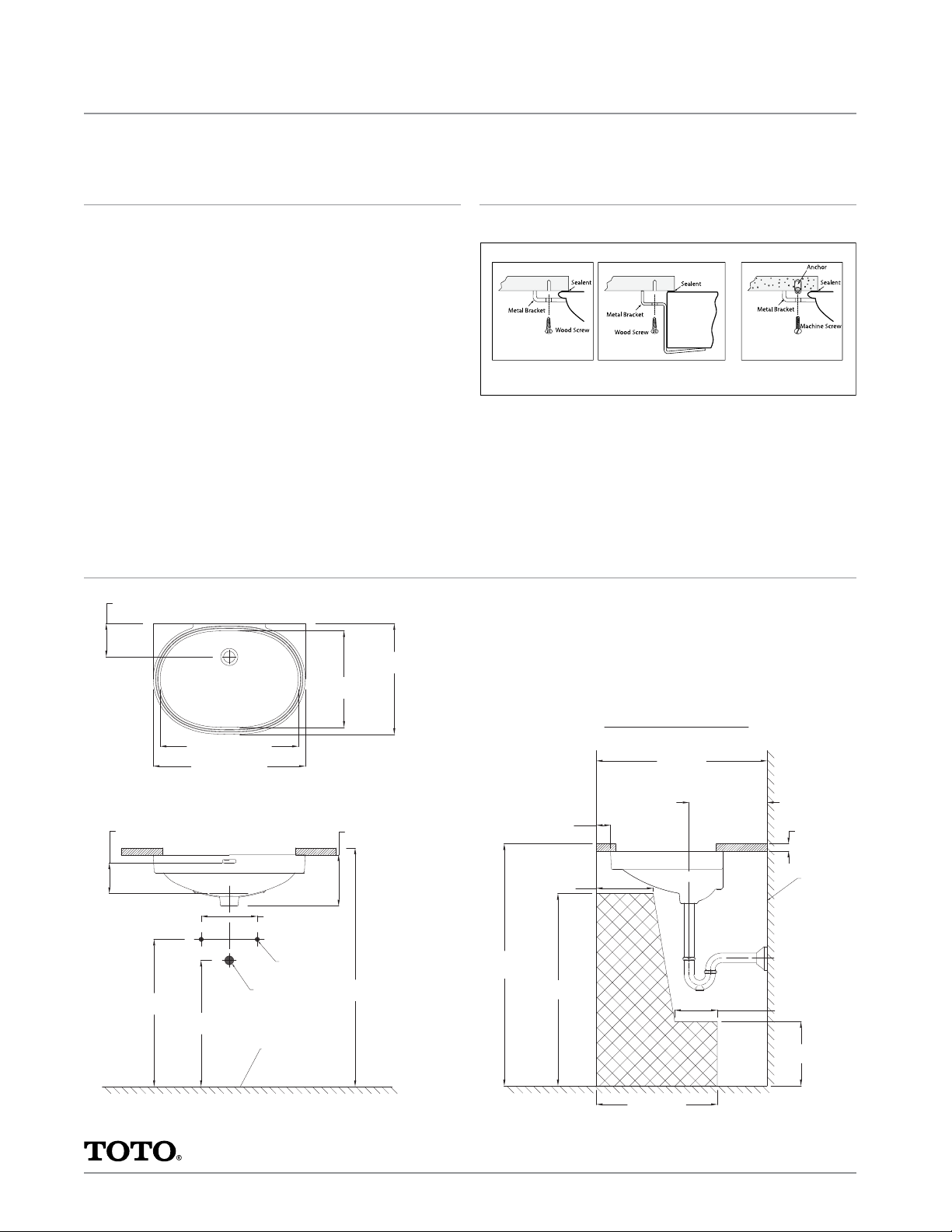

DIMENSIONS
4-11/16" [120mm]
INSTALLATION NOTES
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
4-5/16" [110mm]
WATER LEVEL
*SUGGESTED DIMENSIONS
21" [533mm]*
19-11/16" [500mm]
21-5/8" [550mm]
18" [457mm]*
8" [203mm]
SUPPLIES
1-1/4" O.D.
WASTE
FINISHED FLOOR
15-3/4" [400mm]
13-3/4" [350mm]
7-5/16" [185mm]
34" [864mm]*
2" [51mm] MIN.
34" [864mm]
MAX.
8" [203mm]
27" [686mm]
ADA COMPLIANCE CHECK
24" [610mm]
11" [279mm]*
1" [25mm]
FINISHED WALL
6" [152mm]
9" [229mm]
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
#SS-00291 v.06
