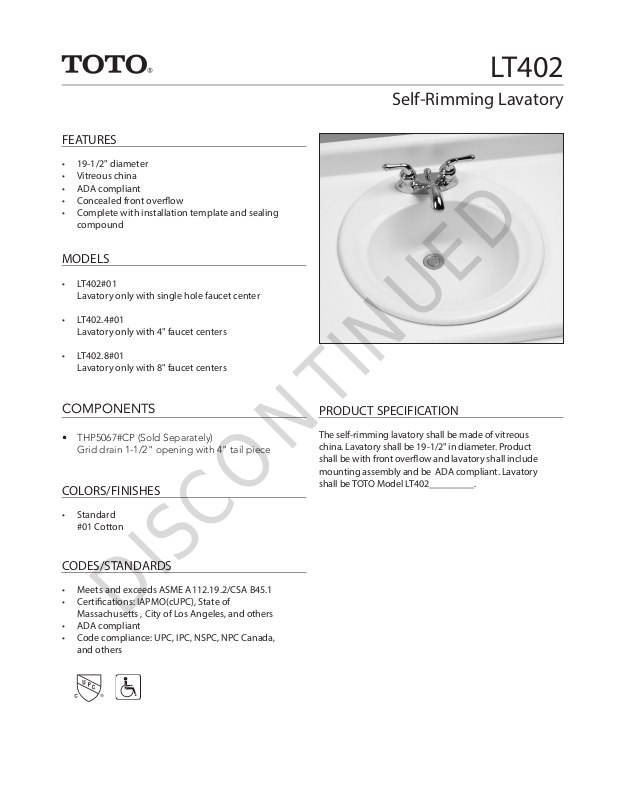

Page 1
FEATURES
DISCONTINUED
• 19-1/2" diameter
• Vitreous china
• ADA compliant
• Concealed front overow
• Complete with installation template and sealing
compound
MODELS
• LT402#01
Lavatory only with single hole faucet center
• LT402.4#01
Lavatory only with 4" faucet centers
• LT402.8#01
Lavatory only with 8" faucet centers
LT402
Self-Rimming Lavatory
COMPONENTS
• THP5067#CP (Sold Separately)
Grid drain 1-1/2" opening with 4" tail piece
COLORS/FINISHES
• Standard
#01 Cotton
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• ADA compliant
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The self-rimming lavatory shall be made of vitreous
china. Lavatory shall be 19-1/2" in diameter. Product
shall be with front overow and lavatory shall include
mounting assembly and be ADA compliant. Lavatory
shall be TOTO Model LT402_________.
Page 2
LT402
(787mm)
*Suggested dimension
DISCONTINUED
SPECIFICATIONS
• Waste 1-1/4" O.D.
• Size 19-1/2"diameter
• Basin 14-1/4"W x 14"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 20-1/2 lbs.
• Shipping Dimensions 19-5/8"L x 19-5/8"W x
9-1/2"H
Self-Rimming Lavatory
4" (102mm)
14-1/4"
(362mm)
*14"
(356mm)
8" (203mm)
Supplies
1-1/4" O.D. Waste
14" (356mm)
19-1/2" (495mm)
8-1/4"
(210mm)
2-1/2" (64mm)
7-1/4"
(184mm)
19-1/2"
(495mm)
1/2" (13mm)
*13"
(330mm)
*31"
ADA Compliance Check
8"
(203mm)
34"
(864mm)
27"
(686mm)
6"
(152mm)
9"
(229mm)
18"
(457mm)
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
Printed in U.S.A. | © TOTO LTD. 07/09 | Printed on recycled paper ♻
17"
(432mm)
# SS-00330 v.06
