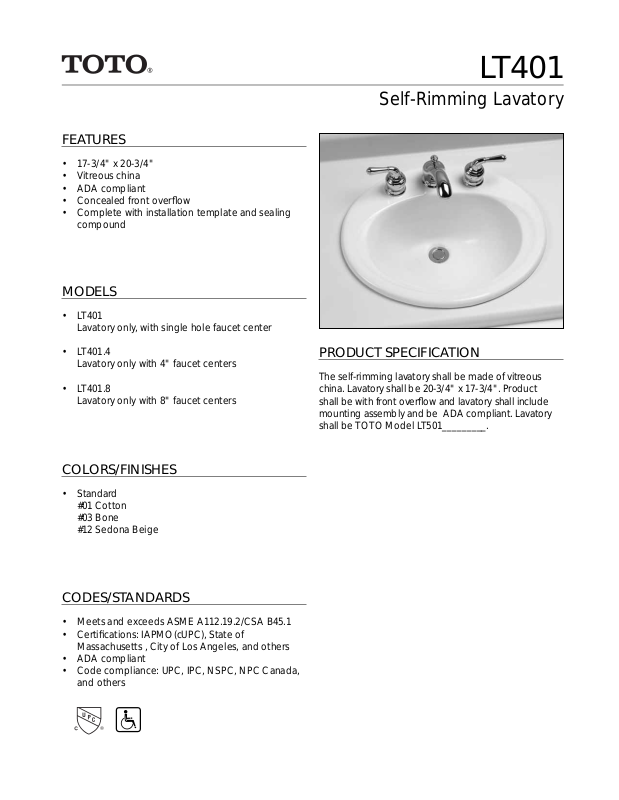

Page 1
FEATURES
• 17-3/4" x 20-3/4"
• Vitreous china
• ADA compliant
• Concealed front overfl ow
• Complete with installation template and sealing
compound
MODELS
• LT401
Lavatory only, with single hole faucet center
LT401
Self-Rimming Lavatory
• LT401.4
Lavatory only with 4" faucet centers
• LT401.8
Lavatory only with 8" faucet centers
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#12 Sedona Beige
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• ADA compliant
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The self-rimming lavatory shall be made of vitreous
china. Lavatory shall be 20-3/4" x 17-3/4". Product
shall be with front overfl ow and lavatory shall include
mounting assembly and be ADA compliant. Lavatory
shall be TOTO Model LT501_________.
Page 2
LT401
SPECIFICATIONS
• Waste 1-1/4" O.D.
• Size 20-3/8"W x 17-3/4"D
• Basin 15-1/2"W x 11"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight LT401/LT401.4/LT401.8
21-1/2 lbs.
• Shipping Dimensions LT401/L T401.4/LT401.8
21-1/4"L x 18-1/4"W x
9-1/2"H
Self-Rimming Lavatory
4" (102mm)
11-1/4"
(286mm)
*14"
(356mm)
8" (203mm)
Supplies
1-1/4" O.D. Waste
15-1/2" (394mm)
20-3/8" (518mm)
8-1/4"
(210mm)
2" (51mm)
6-3/4"
(172mm)
(450mm)
1/2" (13mm)
*13"
(330mm)
17-3/4"
*34"
(864mm)
ADA Compliance Check
8"
(203mm)
34"
(864mm)
27"
(686mm)
6"
(152mm)
9"
(229mm)
18"
(457mm)
*Suggested dimension
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
17"
(432mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO LTD. 07/09 | Printed on recycled paper ƛ
#SS-00331 v.03
