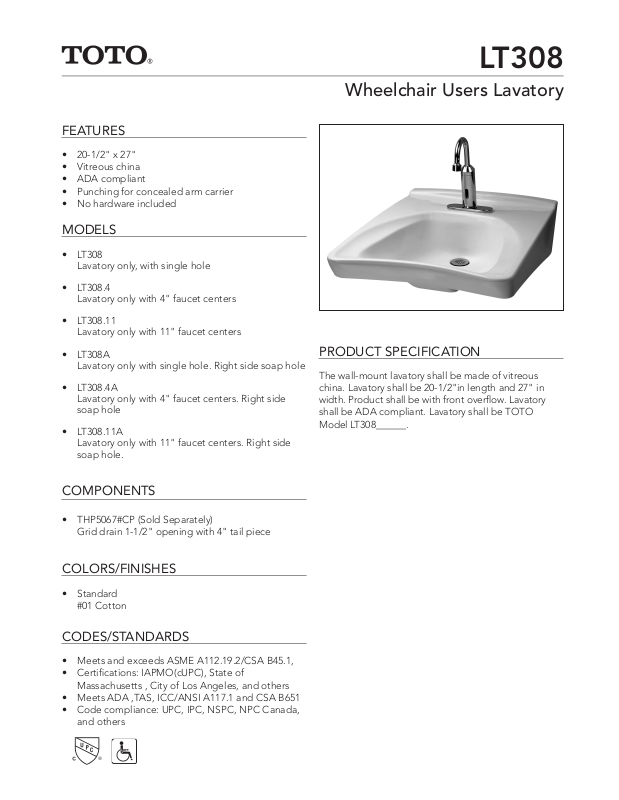

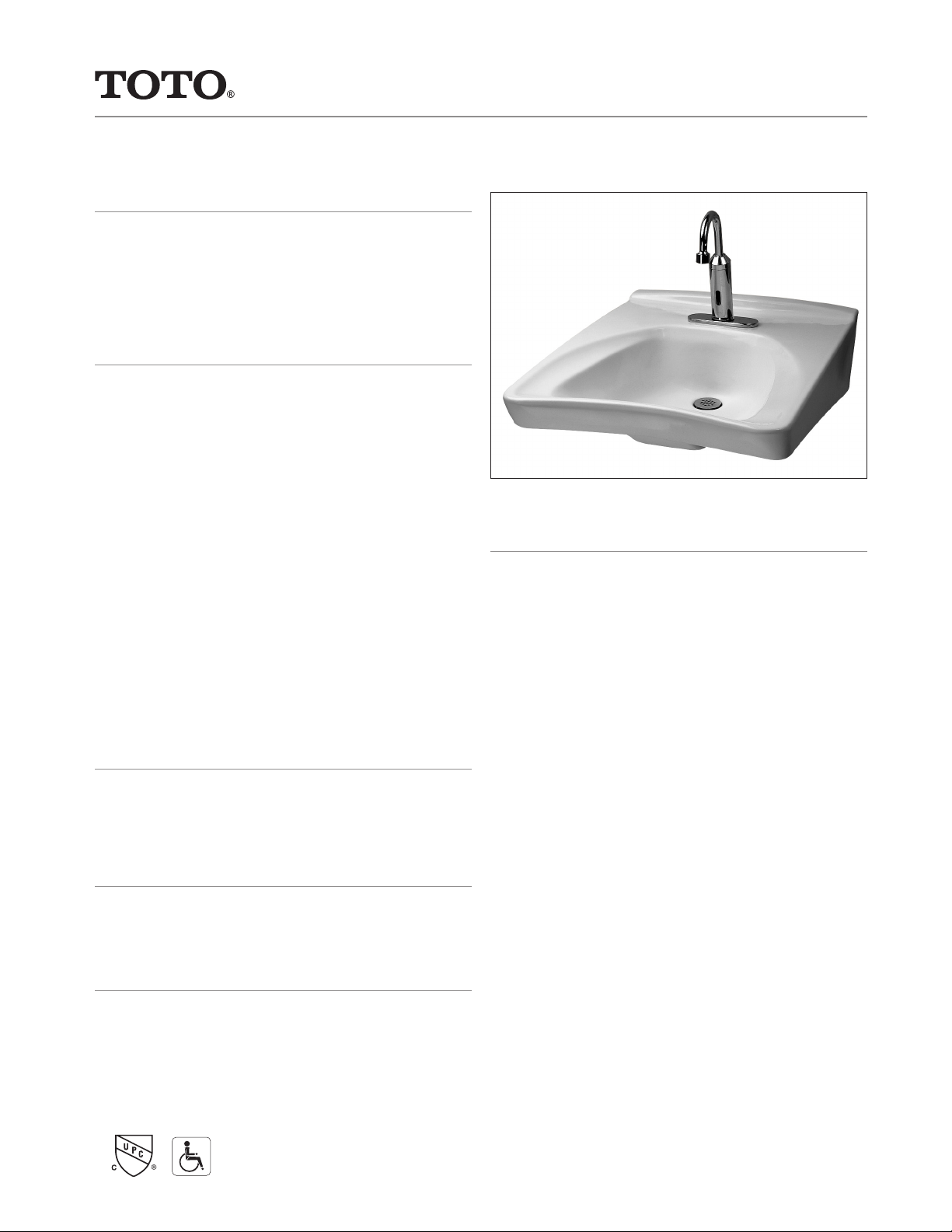

FEATURES
• 20-1/2" x 27"
• Vitreous china
• ADA compliant
• Punching for concealed arm carrier
• No hardware included
MODELS
• LT308
Lavatory only, with single hole
• LT308.4
Lavatory only with 4" faucet centers
• LT308.11
Lavatory only with 11" faucet centers
LT308
Wheelchair Users Lavatory
• LT308A
Lavatory only with single hole. Right side soap hole
• LT308.4A
Lavatory only with 4" faucet centers. Right side
soap hole
• LT308.11A
Lavatory only with 11" faucet centers. Right side
soap hole.
COMPONENTS
• THP5067#CP (Sold Separately)
Grid drain 1-1/2" opening with 4" tail piece
COLORS/FINISHES
• Standard
#01 Cotton
CODES/STANDARDS
PRODUCT SPECIFICATION
The wall-mount lavatory shall be made of vitreous
china. Lavatory shall be 20-1/2"in length and 27" in
width. Product shall be with front overflow. Lavatory
shall be ADA compliant. Lavatory shall be TOTO
Model LT308______.
• Meets and exceeds ASME A112.19.2/CSA B45.1,
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA ,TAS, ICC/ANSI A117.1 and CSA B651
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
Page 2
LT308
Wheelchair Users Lavatory

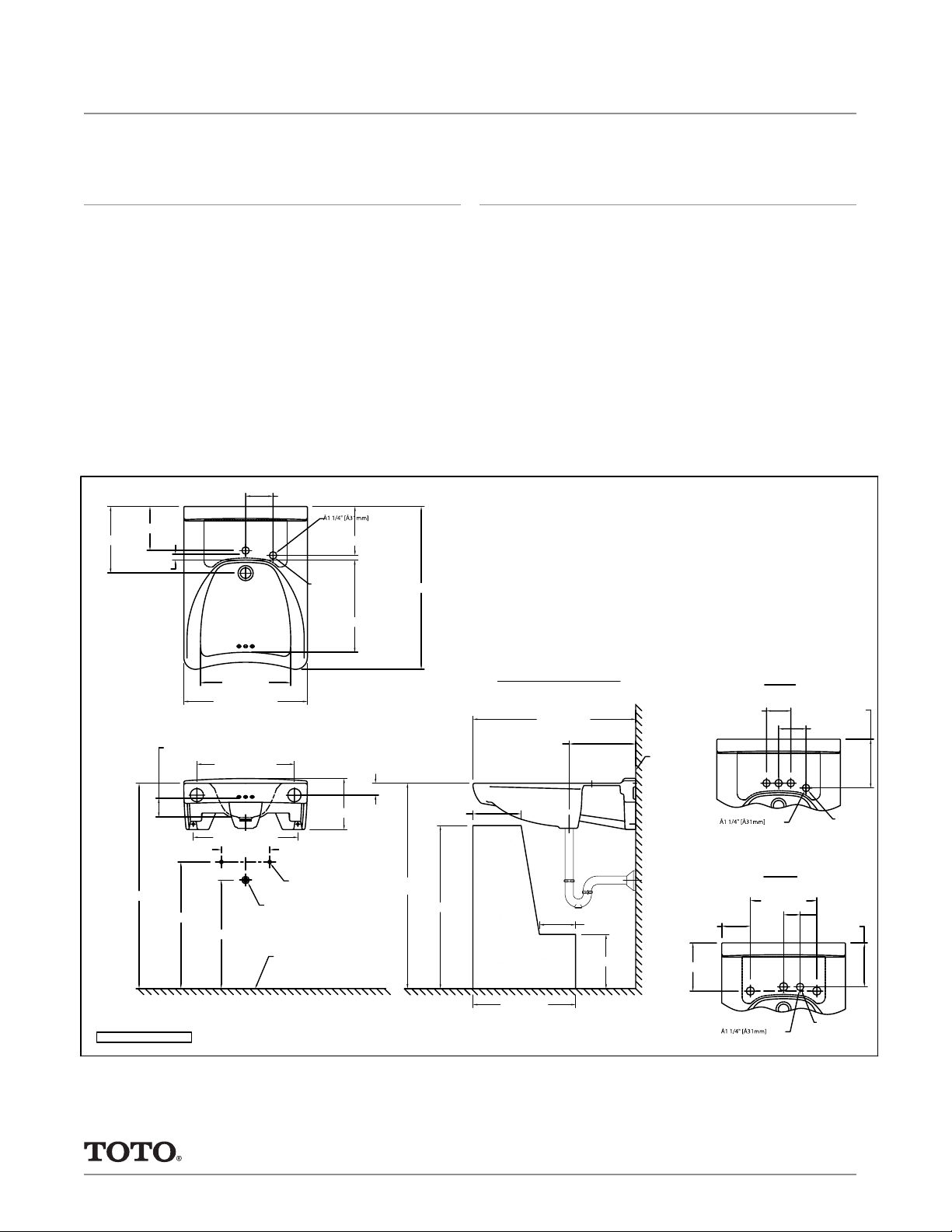

SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 20-1/2"W x 27"D
• Basin 15-1/8"W x 14-3/4"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight LT308/LT308.4/LT308.11
56 lbs.
• Shipping Dimensions LT308/LT308.4/LT308.11
29-1/8"L x 22-7/8"W x
10-5/8"H
4 1/2" [115mm]
7 1/4" [185mm]
11" [280mm]
1" [25mm]
34" [864mm]*
3 1/8" [79mm]
WATER LEVEL
21" [533mm]*
20 1/2" [520mm]
16 1/8" [410mm]
17 3/8" [440mm]
18" [457mm]*
15" [380mm]
8" [203mm]
1-1/4" O.D.
WASTE
FINISHED FLOOR
SUPPLIES
8 1/8" [205mm]
OPTIONAL
SOAP HOLE
DISPENSOR
15 1/4" [388mm]
8 1/2" [215mm]
2" [50mm]
27" [685mm]
34" [864mm]
MAX.
8" [203mm]
27" [686mm]
TOTO recommends the use of Jay R. Smith 0700 (- 27 M31) (Concealed Arms) or equal.
ADA COMPLIANCE CHECK
11" [280mm]*
BARRIER FREE CLEARANCE
27" [685mm]*
6" [152mm]
9" [229mm]
FINISHED
WALL
4 3/4" [120mm]
8" [203mm]
4" [102mm]
LT308.4
LT308.11
11" [280mm]
8 1/8" [205mm]
4 1/2" [115mm]
2 3/4" [69mm]
7 1/4" [185mm]
OPTIONAL
SOAP HOLE
DISPENSOR
*SUGGESTED DIMENSIONS
RD-00185, LT308, V.02
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
17" [432mm]
OPTIONAL
SOAP HOLE
DISPENSOR
#SS-00335 v.09
