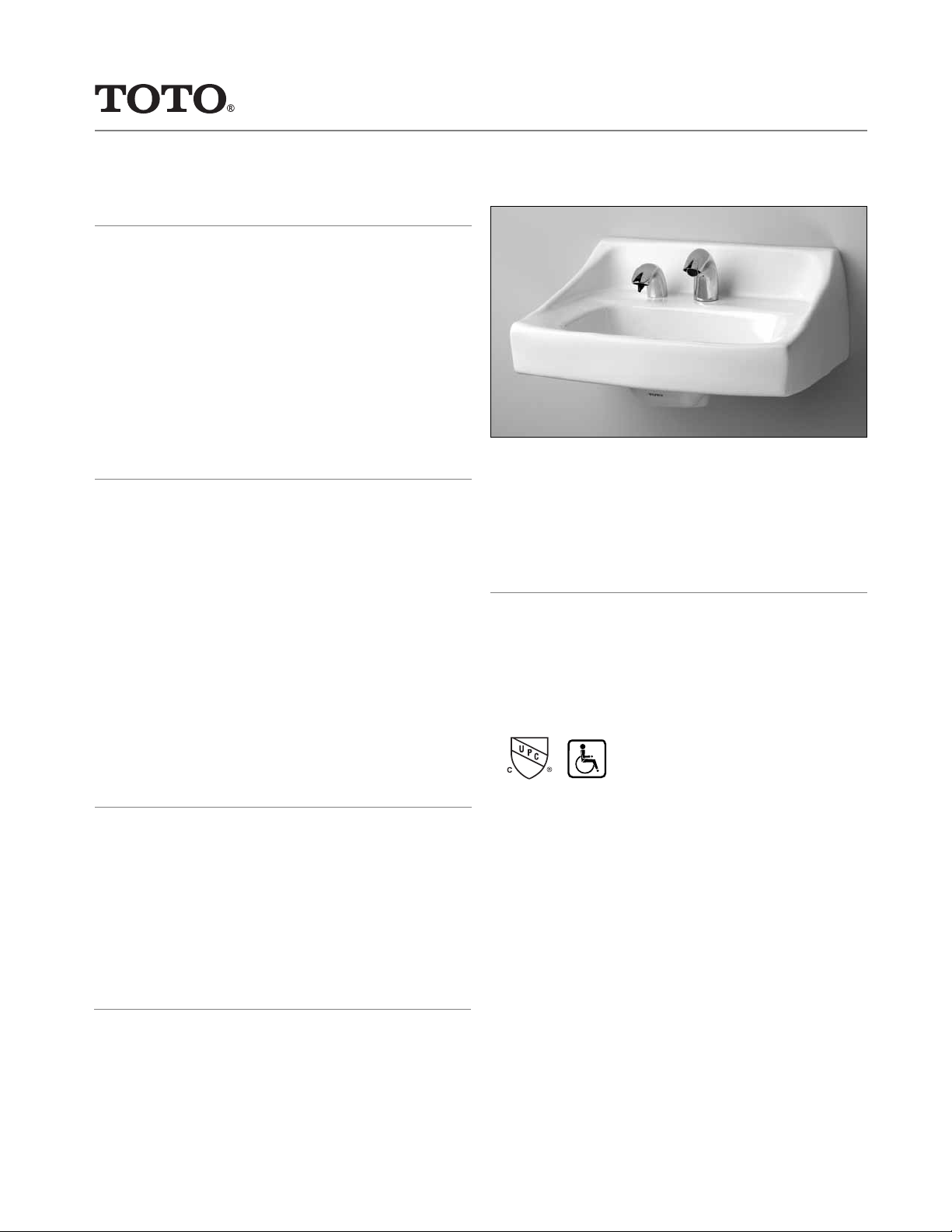

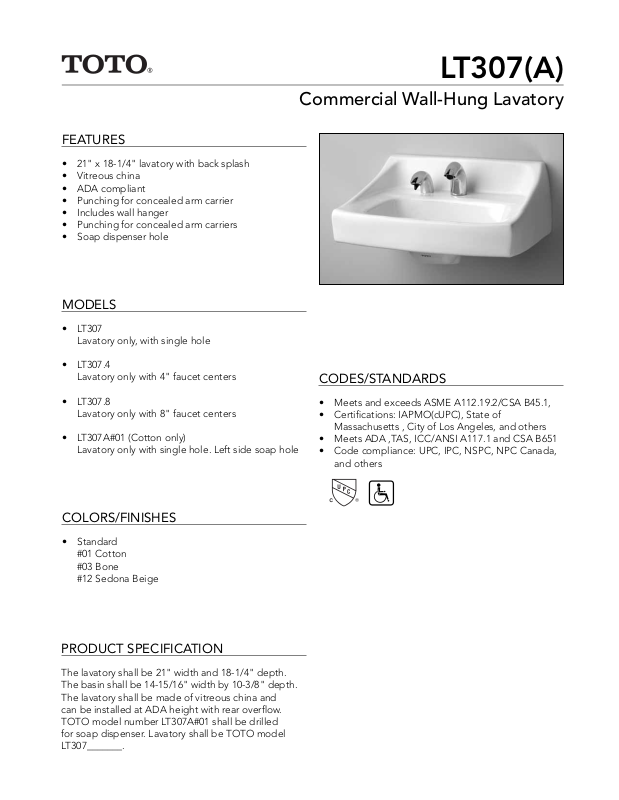

FEATURES
• 21" x 18-1/4" lavatory with back splash
• Vitreous china
• ADA compliant
• Punching for concealed arm carrier
• Includes wall hanger
• Punching for concealed arm carriers
• Soap dispenser hole
MODELS
• LT307
Lavatory only, with single hole
• LT307.4
Lavatory only with 4" faucet centers
LT307(A)
Commercial Wall-Hung Lavatory
CODES/STANDARDS
• LT307.8
Lavatory only with 8" faucet centers
• LT307A#01 (Cotton only)
Lavatory only with single hole. Left side soap hole
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#12 Sedona Beige
PRODUCT SPECIFICATION
The lavatory shall be 21" width and 18-1/4" depth.
The basin shall be 14-15/16" width by 10-3/8" depth.
The lavatory shall be made of vitreous china and
can be installed at ADA height with rear overfl ow.
TOTO model number LT307A#01 shall be drilled
for soap dispenser. Lavatory shall be TOTO model
LT307_______.
• Meets and exceeds ASME A112.19.2/CSA B45.1,
• Certifi cations: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA ,TAS, ICC/ANSI A117.1 and CSA B651
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
Page 2
LT307(A)
L
Commercial Wall-Hung Lavatory

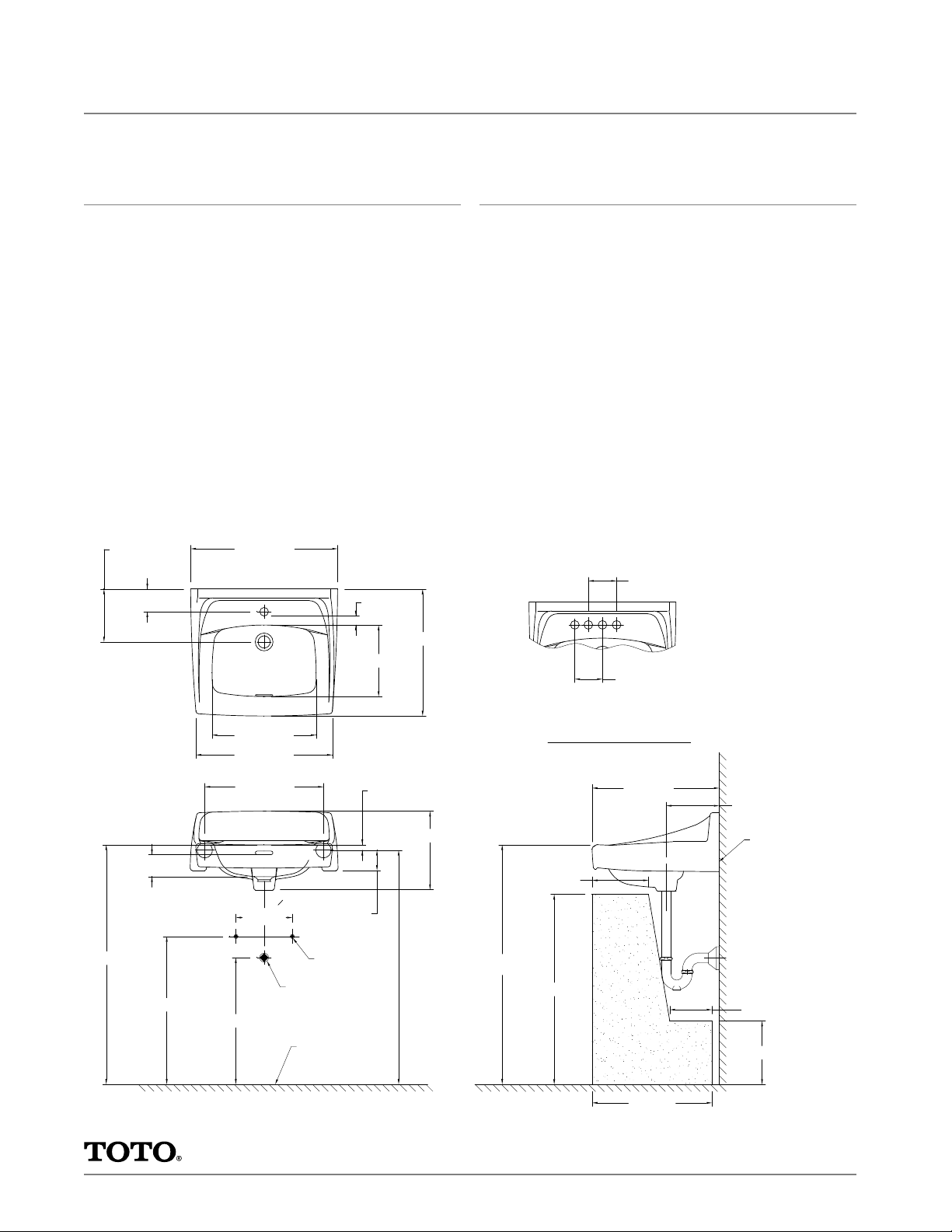

SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 21"W x 18-1/4"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 40 lbs.
• Shipping Dimensions 22-5/8"L x 19-1/8"W x
13-3/4"H
7-1/2" (191mm)
3-1/4" (82mm)
20-7/8" (530mm)
1-1/4" (33mm)
18" (458mm)
10-1/8" (258mm)
TOTO recommends the use of Jay R. Smith 0700
(Concealed Arms) with 19" arms 0800 (Wall Support
Plate).
8" (204mm) LT307.8
4" (102mm)
3-7/8" (100mm)
LT307.4
LT307A
14-3/4" (375mm)
19-3/8" (492mm)
34" (864mm)*
3-1/8" (79mm)
WATER LEVEL
21" (533mm)*
*SUGGESTED DIMENSIONS
16-7/8" (428mm)
8" (203mm)
18" (457mm)*
2-7/8" (73mm)
SUPPLIES
1-1/4" O.D.
WASTE
FINISHED FLOOR
3/4" (20mm)
11-1/8" (283mm)
33-1/4" (844mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
ADA COMPLIANCE CHECK
18" (458mm)*
7-1/2" (191mm)*
FINISHED WAL
8" (203mm)
34" (864mm)
MAX.
27" (686mm)
BARRIER FREE CLEARANCE
17" (432mm)
6" (152mm)
9" (229mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO LTD. 05/12 | Printed on recycled paper ♻
# SS-00336 v.07
