Toto TL960DDLQCP Specifications

FEATURES

• Durable brass construction

• Washerless ceramic disk valve cartridge

• Accommodates 8”-16” spread

• Metal pop-up waste assembly

• Water saving 1.5 gpm

COLORS/FINISHES

• #CP Polished Chrome

• #BN Brushed Nickel

• #PN Polished Nickel

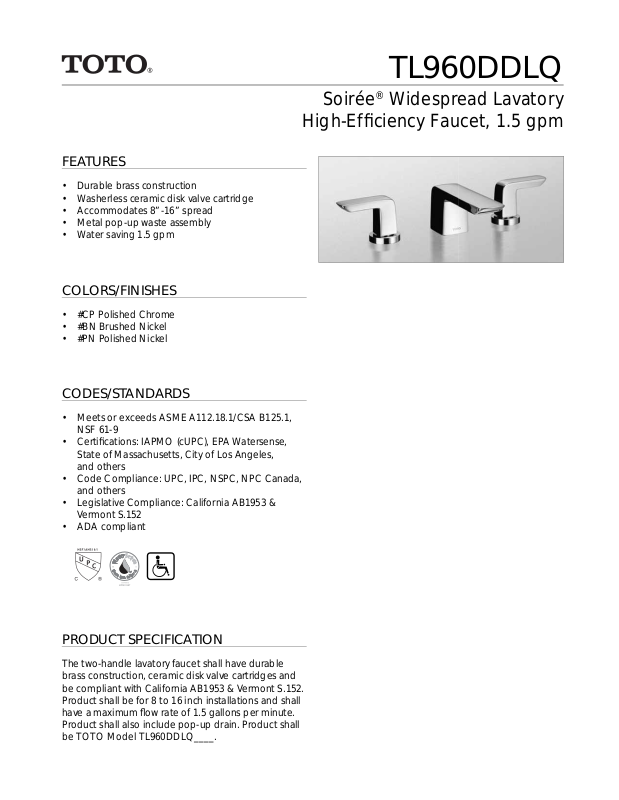

TL960DDLQ

Soirée® Widespread Lavatory

High-Effi ciency Faucet, 1.5 gpm

CODES/STANDARDS

• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9

• Certifi cations: IAPMO (cUPC), EPA Watersense,
State of Massachusetts, City of Los Angeles,

and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others

• Legislative Compliance: California AB1953 &
Vermont S.152

• ADA compliant

PRODUCT SPECIFICATION

The two-handle lavatory faucet shall have durable
brass construction, ceramic disk valve cartridges and
be compliant with California AB1953 & Vermont S.152.
Product shall be for 8 to 16 inch installations and shall
have a maximum fl ow rate of 1.5 gallons per minute.
Product shall also include pop-up drain. Product shall
be TOTO Model TL960DDLQ____.

TL960DDLQ

Soirée® Widespread Lavatory High-Effi ciency Faucet, 1.5 gpm

SPECIFICATIONS

• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)

• Material Brass

• Shipping Weight 11.5 lbs.

• Shipping Dimensions 20-1/2"L x 9-3/4"W x
3-1/2"H

• Maximum Flow Rate 1.5 gpm (5.7 lpm)

0 100 200 300 400 500

2.5 9.5

2.0

1.5

1.0

Flow rate (gpm)

0.5

0.0

0 20 40 60 80

2-13/16”

(72mm)

2-1/2” (64mm)

Ø1-13/16”

(46mm)

Pressure (kPa)

Pressure (psi)

8” (203mm) to 16” (406mm)

1-3/4” (45mm)

7.6

Flow rate (lpm)

5.7

3.8

1.9

0.0

Mounting Hole
ø1-5/16” (33mm) to
ø1-7/16” (37mm)

2-11/16” (68mm)

2-5/16” (59mm)

Deck Thickness

1-1/2” (38mm) MAX

6” (152mm)

4-1/2” (115mm)

1-1/2” (38mm)

1/2” NPSM

Ph: [phone] | Fax: [phone] | www.totousa.com

ø1-1/4” (32mm)

These dimensions and specifi cations are subject to change without notice

# SS-00469, v.02
