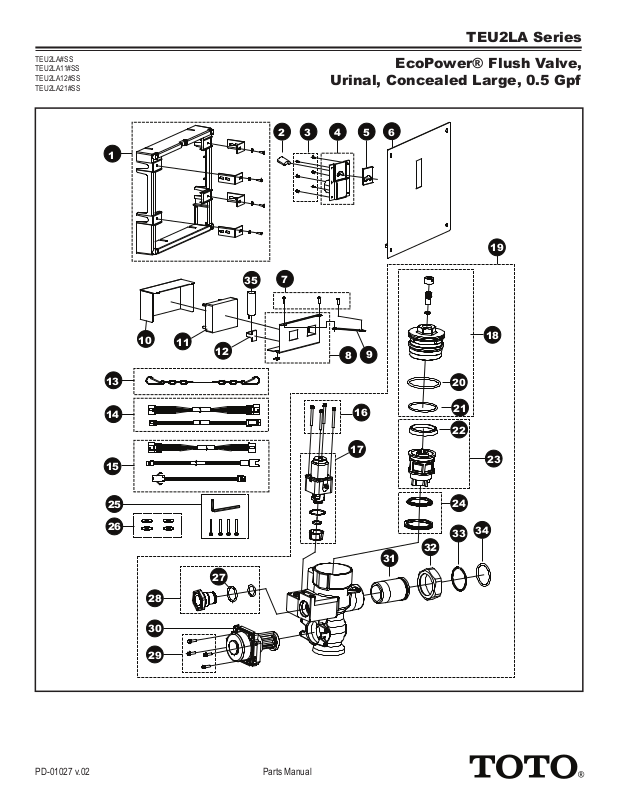

Toto TEU2LA11SS User Manual
TEU2LA Series
TEU2LA#SS
TEU2LA11#SS
TEU2LA12#SS
TEU2LA21#SS
EcoPower® Flush Valve,
Urinal, Concealed Large, 0.5 Gpf
6
2
3
1
7
10
35
11
12
5
4
19
18
9
8
13
14
15
25
26
28
30
29
27
16
17
31
32
20
21
22
24
33
23
34
PD-01027 v.02 Parts Manual
TEU2LA Series
TEU2LA#SS
TEU2LA11#SS
TEU2LA12#SS
TEU2LA21#SS
Item Part Description
1 TH559EDV341 Frame assembly, large cover
2 THP3187 Sensor
3 THP3215 Screw, sensor bracket, concealed (6/bag)
4 THP3214 Bracket, sensor, w/ push button
5 THP3213 Glass, sensor window, concealed
6 THP3211 Cover plate, large
7 THP3204 Screws, valve body, cover (5/bag)
8 THP3217 Housing, controller, concealed
9 THP3218 Mount stay, controller box
10 THP3216 Cover, box, controller, concealed
11 THP3198 Controller unit, A
12 TH559EDV517 Clamp set (10/bag)
13 TH559EDV345 Chain, cover plate
14 THP3221 Harness, concealed (2 type/bag)
15 THP3209 Extension harness (3 type/bag)
16 THP3192 Screw, solenoid valve, (4/bag)
17 THP3190 Solenoid valve assembly
18 THP3188 Valve cap assembly
19 THP3228 Valve assy, concealed, urinal
20 THP3189 O-ring, piston cap, top, large (10/bag)
21 TH305SV112 O-ring, valve cap botm (10/bag)
22 TH305SV103 U-packing, piston (10/bag)
23 TH323V104R Piston assembly
24 TH321 Seat packing set
25 THP3233 Screw w/wrench set
26 THP3219 Washer, plastic (4/bag)
27 THP3013 O-ring, cap (10/bag)
28 THP3220 Plug
29 TH559EDV505 Screw, EcoPower generator (4/bag)
30 THP3234 EcoPower generator, urinal
31 TH305SV114 Tailpiece
32 TH305SV113 Nut, tailpiece/angle stop
33 TH305SV105 Locking ring set, tailpiece (10/bag)
34 TH305SV106 O-ring, tailpiece/angle stop
35 THP3053 Back-up battery
EcoPower® Flush Valve,
Urinal, Concealed Large, 0.5 Gpf
Vacuum Breaker Sets
VB13RB-11 Back Spud, 3/4" Outlet, Concealed
VB9RB-12 Top Spud, 3/4" Outlet, Concealed
VB13RB-21 Back Spud, 1-1/4" Outlet, Concealed
Note: for additional information, refer to the individual vacuum breaker parts sheets.
PD-01027 v.02 Parts Manual
