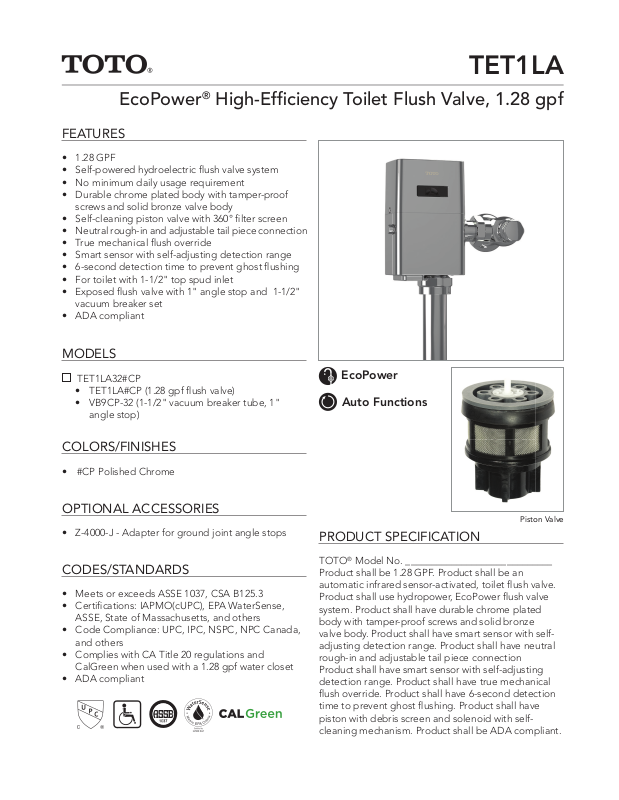

Toto TET1LA32CP Specifications
EcoPower® High-Effi ciency Toilet Flush Valve, 1.28 gpf
FEATURES
• 1.28 GPF
• Self-powered hydroelectric fl ush valve system
• No minimum daily usage requirement
• Durable chrome plated body with tamper-proof
screws and solid bronze valve body
• Self-cleaning piston valve with 360° fi lter screen
• Neutral rough-in and adjustable tail piece connection
• True mechanical fl ush override
• Smart sensor with self-adjusting detection range
• 6-second detection time to prevent ghost fl ushing
• For toilet with 1-1/2" top spud inlet
• Exposed fl ush valve with 1" angle stop and 1-1/2"
vacuum breaker set
• ADA compliant
MODELS
TET1LA
TET1LA32#CP
• TET1LA#CP (1.28 gpf fl ush valve)
• VB9CP-32 (1-1/2" vacuum breaker tube, 1"
angle stop)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• Z-4000-J - Adapter for ground joint angle stops
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
ASSE, State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA Title 20 regulations and
CalGreen when used with a 1.28 gpf water closet
• ADA compliant
EcoPower
Auto Functions
Piston Valve
PRODUCT SPECIFICATION
®
TOTO
Product shall be 1.28 GPF. Product shall be an
automatic infrared sensor-activated, toilet fl ush valve.
Product shall use hydropower, EcoPower fl ush valve
system. Product shall have durable chrome plated
body with tamper-proof screws and solid bronze
valve body. Product shall have smart sensor with selfadjusting detection range. Product shall have neutral
rough-in and adjustable tail piece connection
Product shall have smart sensor with self-adjusting
detection range. Product shall have true mechanical
fl ush override. Product shall have 6-second detection
time to prevent ghost fl ushing. Product shall have
piston with debris screen and solenoid with selfcleaning mechanism. Product shall be ADA compliant.
Model No. _____________________________
TET1LA
TET1GA, TET1LA
TEU1GA, TEU1LA
TEU1LA
EcoPower
®
High-Efficiency Toilet Flush Valve, 1.28 gpf
SPECIFICATIONS
• Material Bronze casting
• Power supply EcoPower
• Sensor detection time Factory setting at six
(6) seconds minimum
• Sensor detection range Self-adjusting to
environment
• Discharge quantity Preset to 1.28 gpf/
4.8 lpf
• Operating temperature 32°-104°F (0°-40°C)
• Water supply pressure 35 psi - 125 psi*
• Water supply connection 1" NPT
• Warranty Three year limited
*Water pressures over 80 psi are not recommended for most plumbing
fixtures. Check your local plumbing code for details.
DIAGRAM
33-1/2"
(850mm)
INSTALLATION NOTES
For commercial applications only.
Warning: Failure to properly adjust angle stop to
the appropriate level can potentially cause property
damage.
For detailed installation instructions, please refer to
the installation manual.
Max flow rate to be used with
TET1LA___________: 1.28 gpf
Confirm with local codes and standards for floor drain
requirement. Adjust control stop for proper flow rate
to the fixture.
7”
(178mm)
4-9/16”
(115mm)
Max 19-11/16”
(Max 500mm)
4-3/4”±1/2”
(120±13mm)
Inlet Supply
1” NPT
4-1/4”
(108mm)
* Min.11-1/8” (282mm)
11-1/2” (292mm) (w/o cutting)
1-1/2”
NPSM
* Check local codes
15°
Grab Bar
** Ø1-1/4”~2”
(32~51mm)
** Min. 1-1/2”
(38mm)
3-3/16” (81mm)
Min. 2-1/4” (57mm)
** 1-1/2” (38mm)
Inlet supply 1” NPT
** 33”~36”
(840~915mm)
ADA Grab bar combination
Max. 29”(737mm)
(for Ø1-1/4” Grab bar)
Max. 28-3/4”(730mm)
(for Ø1-1/2” Grab bar)
Max. 28-1/4”(718mm)
(for Ø2” Grab bar)
** ADA 2010 Section 609
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-01160, v.01
