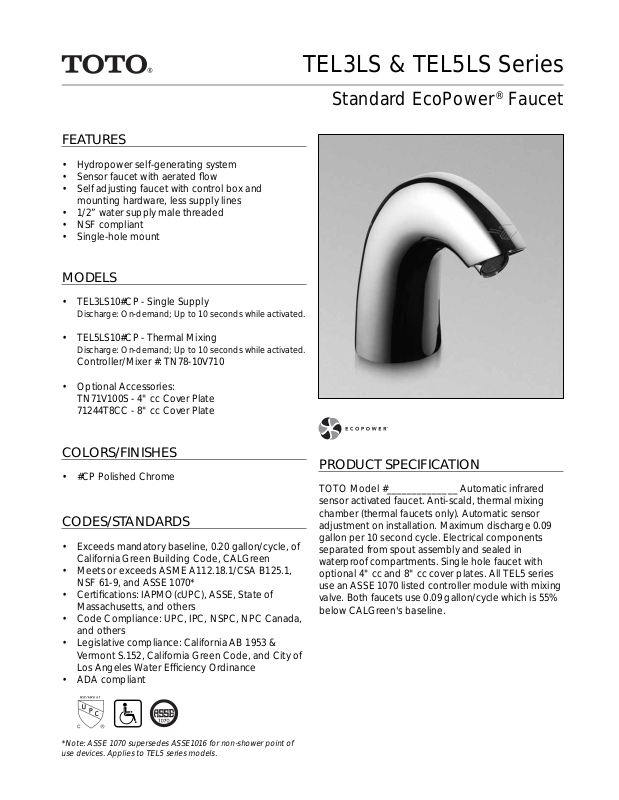

Toto TEL5LS10CP Specifications

FEATURES

• Hydropower self-generating system

• Sensor faucet with aerated fl ow

• Self adjusting faucet with control box and
mounting hardware, less supply lines

• 1/2” water supply male threaded

• NSF compliant

• Single-hole mount

MODELS

• TEL3LS10#CP - Single Supply

Discharge: On-demand; Up to 10 seconds while activated.

• TEL5LS10#CP - Thermal Mixing

Discharge: On-demand; Up to 10 seconds while activated.
Controller/Mixer #: TN78-10V710

TEL3LS & TEL5LS Series

Standard EcoPower® Faucet

• Optional Accessories:

TN71V100S - 4" cc Cover Plate
71244T8CC - 8" cc Cover Plate

COLORS/FINISHES

• #CP Polished Chrome

CODES/STANDARDS

• Exceeds mandatory baseline, 0.20 gallon/cycle, of
California Green Building Code, CALGreen

• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, and ASSE 1070*

• Certifi cations: IAPMO(cUPC), ASSE, State of
Massachusetts, and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others

• Legislative compliance: California AB 1953 &
Vermont S.152, California Green Code, and City of
Los Angeles Water Effi ciency Ordinance

• ADA compliant

PRODUCT SPECIFICATION

TOTO Model #______________ Automatic infrared
sensor activated faucet. Anti-scald, thermal mixing
chamber (thermal faucets only). Automatic sensor
adjustment on installation. Maximum discharge 0.09
gallon per 10 second cycle. Electrical components
separated from spout assembly and sealed in
waterproof compartments. Single hole faucet with
optional 4" cc and 8" cc cover plates. All TEL5 series
use an ASSE 1070 listed controller module with mixing
valve. Both faucets use 0.09 gallon/cycle which is 55%
below CALGreen's baseline.

*Note: ASSE 1070 supersedes ASSE1016 for non-shower point of
use devices. Applies to TEL5 series models.

TEL3LS & TEL5LS Series

Standard EcoPower® Faucet

SPECIFICATIONS

• Warranty Three year warranty

• Material Bronze with polished
chrome fi nish

• Power Supply Hydropower self-generating
system

• Hot/Cold-water Supply Minimum required water
pressure: 20PSI

Maximum water pressure:

125PSI*

• Water Supply Connect 1/2" NPSM

• Water Consumption 0.09 gallons per cycle (max);

0.5 gallons per minute

• Water Saving Function Automatically turns OFF
when user removes hands
Maximum continuous run
time is 10

• Detection time ON feature: Immediate

OFF feature: 1 second delay

• Detection range Factory set at 2-1/4"

Faucet automatically sets the

detection range according
to the size of the basin

• Discharge water Thermal Mixing Faucet:

temperature control Cold water - 104°F (Max)

range (When used under standard
conditions)

• Anti-scald safety Provides the user protection

feature against exposure to

excessive water temperature

(Thermal mixing faucet, only)

NOTE

Following the Federal mandate for water effi ciency
outlined in the Environmental Protection Act of 1992,
Faucets can be rated for water consumption based on
two categories: fl ow rate and water consumption.

With the “Water Consumption” standard, a faucet
must not use more than 0.25 gallon of water per cycle.
The TOTO® faucet with a 10 second cycle uses 0.09
gallon of water, or 0.5 gallon per minute. This is a 64%
below the base line of 0.25 gallon per cycle.

Furthermore, an innovative design feature
incorporated into all TOTO electronic faucets is an
"ON-DEMAND" mode. This means that the faucet will
only delver water as needed and will not run the entire
duration of its rated cycle - either 10 or 60 seconds.
This guarantees additional water savings.

TOTO uses water consumption because it is the most
accurate method of measuring water use. This method
of measurement can be incorporated into water usage
calculations for various effi ciency programs. For more
information, please consult www.totousa.com.

*Water pressures over 80 psi are not recommended for most
plumbing fi xtures.

3-15/16"

20-3/4"

(527mm)

10-1/4"

(260mm)

(100mm)

60°

4-1/2"

(114mm)

10-1/4"

(260mm)

Water supply

F.L .

Maximum deck thickness 2" (50mm)

Ph: [phone] | Fax: [phone] | www.totousa.com

(50mm)

6"

(152mm)

2"

31"

(787mm)

Single Supply

2-15/16"
(75mm)

3-15/16"

16-7/8"

(428mm)

17-1/8"

(436mm)

(100mm)

60°

#SS-00422, v.05

(152mm)

1"

(25mm)

2"

(50mm)

1-1/2"

(38mm)

6"

3-3/4"
(95mm)

1"

(25mm)

Thermal Mixing

2-15/16"
(75mm)

34"

(864mm)

4-1/2"

(114mm)

10-1/4"

(260mm)

HOT

COLD

1-3/16"

(30mm)

5-1/2"

(140mm)

These dimensions and specifi cations are subject to change without notice

8" (203mm)

F.L .

Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ƛ

1-2/3"
(42mm)

6-1/2"
(165mm)
