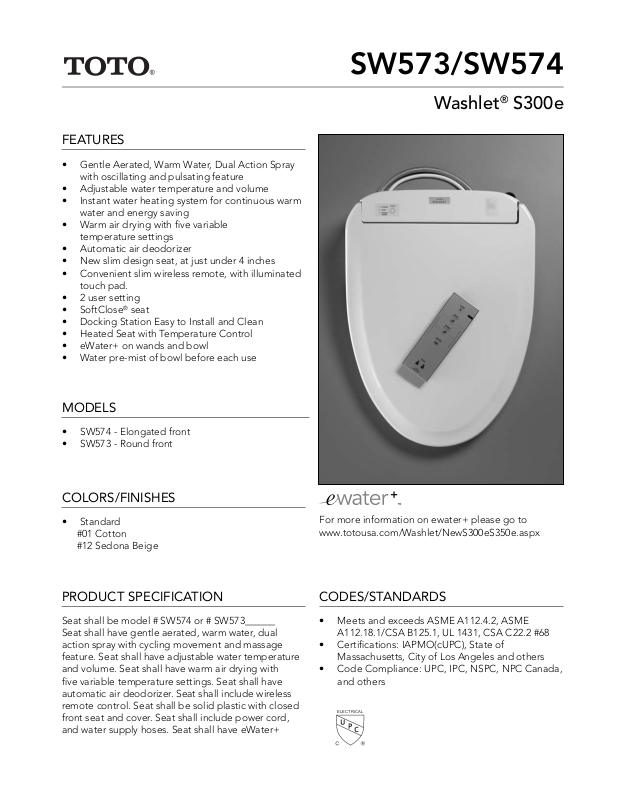

Toto SW57301 User Manual

FEATURES

• Gentle Aerated, Warm Water, Dual Action Spray with oscillating and pulsating feature

• Adjustable water temperature and volume

• Instant water heating system for continuous warm water and energy saving

• Warm air drying with ﬁ ve variable temperature settings

• Automatic air deodorizer

• New slim design seat, at just under 4 inches

• Convenient slim wireless remote, with illuminated touch pad.

• 2 user setting

• SoftClose® seat

• Docking Station Easy to Install and Clean

• Heated Seat with Temperature Control

• eWater+ on wands and bowl

• Water pre-mist of bowl before each use

SW573/SW574

Washlet® S300e

MODELS

• SW574 - Elongated front

• SW573 - Round front

COLORS/FINISHES

• Standard

#01 Cotton #12 Sedona Beige

PRODUCT SPECIFICATION

Seat shall be model # SW574 or # SW573______ Seat shall have gentle aerated, warm water, dual action spray with cycling movement and massage feature. Seat shall have adjustable water temperature and volume. Seat shall have warm air drying with ﬁ ve variable temperature settings. Seat shall have automatic air deodorizer. Seat shall include wireless remote control. Seat shall be solid plastic with closed front seat and cover. Seat shall include power cord, and water supply hoses. Seat shall have eWater+

For more information on ewater+ please go to www.totousa.com/Washlet/NewS300eS350e.aspx

CODES/STANDARDS

• Meets and exceeds ASME A112.4.2, ASME A112.18.1/CSA B125.1, UL 1431, CSA C22.2 #68

• Certiﬁ cations: IAPMO(cUPC), State of Massachusetts, City of Los Angeles and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada, and others

ELECTRICAL

SW573/SW574

SPECIFICATIONS

Washlet® S300e

• Power Rating: 120V AC, 60Hz, 835W

• Power Cord: Maximum length:

3.94 ft/120 cm, 3 prong grounded plug

• Water Feature: Adjustable Water Flow Rate: Front washing - 10.2 -

14.1 oz/min

Wide Front - from 11.5 -

14.1 oz/min Rear washing 9.0 -

14.1 oz/min

Soft Rear - from 10.2 -

14.1 oz/min

• Washing Spray Temp: Minimum: 86˚F/30˚C Maximum: 104˚F/40˚C

• Safety Device: Thermal fuse.

• Drying Feature: Air temperature: High: about 140ºF/60ºC Low: about 95ºF/35ºC

• Dryer Air Capacity: 10.24ft3/min

• Seat Warming Feature: Surface Temperature:

Minimum: 82˚F/28˚C Maximum: 97˚F/36˚C

• Safety Device: Thermal fuse

• Water Supply Pressure: Minimum: 7.25 psi

Maximum: 108.75 psi

• Ambient Temperature: Range:

32˚F/1˚C to 104˚F/40˚C

• Warranty: One Year Limited Warranty

• Shipping weight: 13.5lbs.

• Shipping dimensions: 23” x 19-1/4” x 5-1/2”

INSTALLATION NOTES

• Washlet S300e may not ﬁ t certain toilet bowl

designs.

• If possible, with your order, please include your

model number (from the underside of the tank lid).

• Warning: Rated power consumption 835W

18-7/8" (480mm)

(Round)

20-3/4" (529mm)

(Elongated)

15-5/16"

(389mm)

5-1/2"

(140mm)

3/8"

(10mm)

3-15/16"

(100mm)

It is highly recommended to use a surge protector to prevent damage in the event of a power surge.

* GFCI Outlet Min. 12” off floor

1-5/8" (42mm)

* The 3-prong cord on the Washlet is on the left side and is 3' long. The GFCI outlet needs to have 120V, 10amps.

Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com

These dimensions and speciﬁ cations are subject to change without notice

# SS-00637 v.03
