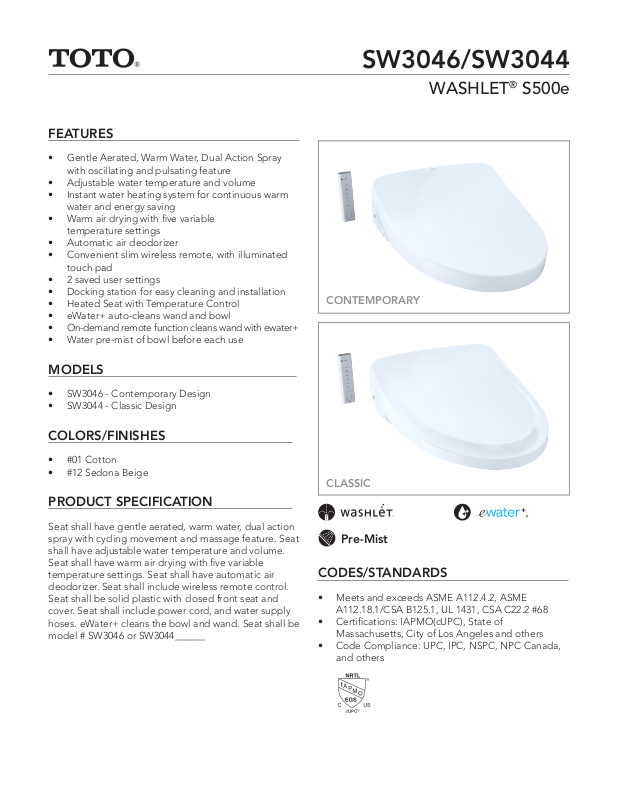

Toto SW304401, SW304601 Specifications
FEATURES
• Gentle Aerated, Warm Water, Dual Action Spray
with oscillating and pulsating feature
• Adjustable water temperature and volume
• Instant water heating system for continuous warm
water and energy saving
• Warm air drying with five variable
temperature settings
• Automatic air deodorizer
• Convenient slim wireless remote, with illuminated
touch pad
• 2 saved user settings
• Docking station for easy cleaning and installation
• Heated Seat with Temperature Control
• eWater+ auto-cleans wand and bowl
• On-demand remote function cleans wand with ewater+
• Water pre-mist of bowl before each use
SW3046/SW3044
WASHLET® S500e
CONTEMPORARY
MODELS
• SW3046 - Contemporary Design
• SW3044 - Classic Design
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
PRODUCT SPECIFICATION
Seat shall have gentle aerated, warm water, dual action
spray with cycling movement and massage feature. Seat
shall have adjustable water temperature and volume.
Seat shall have warm air drying with five variable
temperature settings. Seat shall have automatic air
deodorizer. Seat shall include wireless remote control.
Seat shall be solid plastic with closed front seat and
cover. Seat shall include power cord, and water supply
hoses. eWater+ cleans the bowl and wand. Seat shall be
model # SW3046 or SW3044______
CLASSIC
Pre-Mist
CODES/STANDARDS
• Meets and exceeds ASME A112.4.2, ASME
A112.18.1/CSA B125.1, UL 1431, CSA C22.2 #68
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
SW3046/SW3044
15 1/16"
15 1/16"
[200mm]
5 1/2"
[140mm]
15 1/16"
[383mm]
20 15/16"
[531mm]
11 13/16"
[300mm]
7 7/8"
[200mm]
[588mm]
5 1/2"
[140mm]
15 1/16"
[383mm]
11 13/16"
[300mm]
20 11/16"
[526mm]
7 7/8"
[200mm]
[588mm]
5 1/2"
[140mm]
15 1/16"
[383mm]
20 15/16"
[531mm]
11 13/16"
[300mm]
4 13/16"
5 1/2"
[140mm]
15 1/16"
[383mm]
11 13/16"
[300mm]
20 11/16"
[526mm]
5"
WASHLET S500e
SPECIFICATIONS
Power Rating
Power Consumption
Max Power
Consumption
Power Cord Length
Spray Volume
Spray Features
Warm Air
Dryer Features
AC 120 V 60 Hz
1288W
1444W
3.94 ft (1.2 m)
Rear Cleansing:
0.08 – 0.11 gal/min
Rear Soft Cleansing:
0.08 – 0.11 gal/min
Front Cleansing:
0.08 – 0.11 gal/min
Wide Front Cleansing:
0.08 – 0.11 gal/min
Adjustable Surface Temp:
86 – 104 ºF (30 – 40 ºC)
Safety Device:
Temperature Fuse
Adjustable Air Temp:
95 – 140 ºF (35 – 60 ºC)
Airflow Volume:
10.24 ft3/min (0.29 m3/min)
Safety Device:
Temperature Fuse
INSTALLATION NOTES
• WASHLET S500e may not fit certain toilet bowl designs
• If possible, with your order, please include your
model number (from the underside of the tank lid).
• It is highly recommended to use a surge protector
to prevent damage in the event of a power surge.
• For use with potable water only. Do not use with
recycled water.
• Warning: Rated power consumption 1288W
DIMENSIONS
SW3046 (Contemporary)
[122mm]
1 7/16"
[37mm]
1/4"
[7mm]
[383mm]
23 3/16"
5 1/2"
[140mm]
11 13/16"
[300mm]
7 7/8"
[200mm]
20 15/16"
[531mm]
Adjustable Surface Temp:
Heated Seat
Features
82 – 97 ºF (28 – 36 ºC)
Safety Device:
Temperature Fuse
Minimum:
Water Supply
Pressure
7.25 PSI (Dynamic)
Maximum:
108.75 PSI (Static)
Ambient Temp.
Shipping Weight
Warranty
Shipping
Dimensions
32 – 104 ºF (0 – 40 ºC)
One Year Limited Warranty
SW3046:
15.0 lbs
SW3044:
15.2 lbs
SW3046 & SW3044:
23-1/2"L x 18-1/2"W x 6-1/2"H
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SW3044 (Classic)
[383mm]
[127mm]
1 7/16"
[37mm]
1/4"
[7mm]
23 1/8"
These dimensions and specications are subject to change without notice
5 1/2"
[140mm]
11 13/16"
[300mm]
7 7/8"
20 11/16"
[526mm]
# SS-01332 v.02
