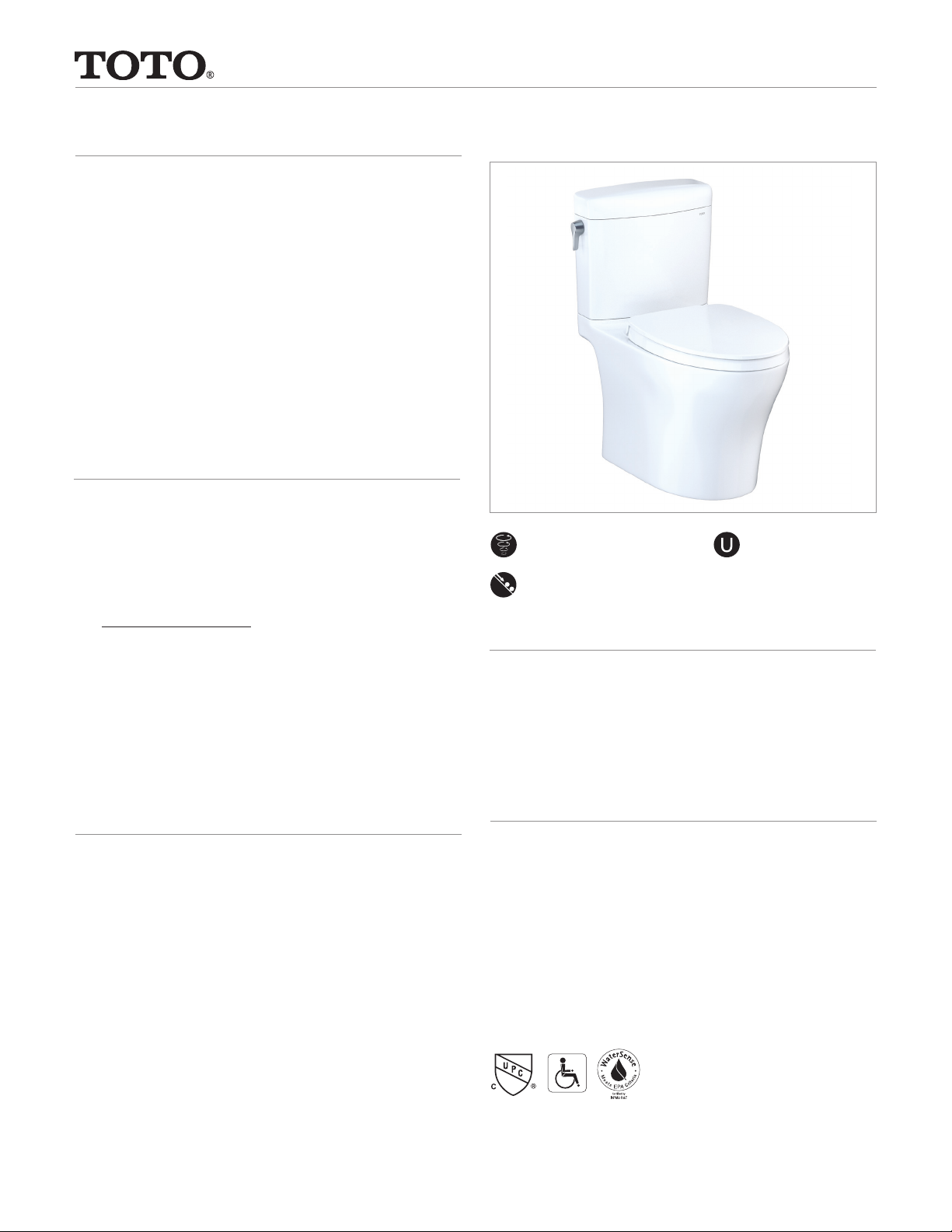

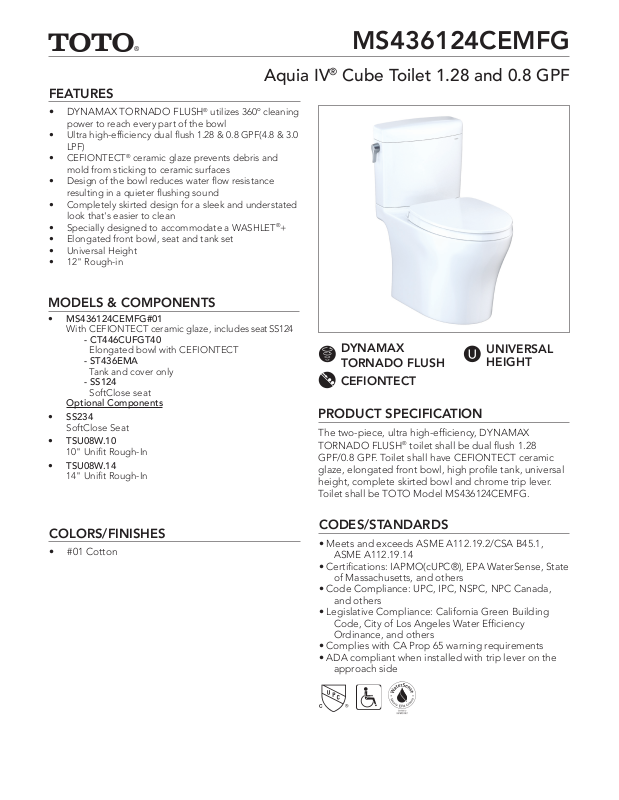

Aquia IV® Cube Toilet 1.28 and 0.8 GPF

FEATURES

• DYNAMAX TORNADO FLUSH

power to reach every part of the bowl

• Ultra high-efciency dual ush 1.28 & 0.8 GPF(4.8 & 3.0

LPF)

• CEFIONTECT® ceramic glaze prevents debris and

mold from sticking to ceramic surfaces

• Design of the bowl reduces water ow resistance resulting in a quieter ushing sound

• Completely skirted design for a sleek and understated look that's easier to clean

• Specially designed to accommodate a WASHLET®+

• Elongated front bowl, seat and tank set

• Universal Height

• 12" Rough-in

MODELS & COMPONENTS

• MS436124CEMFG#01

With CEFIONTECT ceramic glaze, includes seat SS124

- CT446CUFGT40

Elongated bowl with CEFIONTECT

- ST436EMA

Tank and cover only

- SS124

SoftClose seat

Optional Components

• SS234

SoftClose Seat

• TSU08W.10

10" Unit Rough-In

• TSU08W.14

14" Unit Rough-In

utilizes 360º cleaning

MS436124CEMFG

DYNAMAX TORNADO FLUSH

CEFIONTECT

PRODUCT SPECIFICATION

The two-piece, ultra high-efciency, DYNAMAX

TORNADO FLUSH® toilet shall be dual ush 1.28

GPF/0.8 GPF. Toilet shall have CEFIONTECT ceramic glaze, elongated front bowl, high prole tank, universal height, complete skirted bowl and chrome trip lever. Toilet shall be TOTO Model MS436124CEMFG.

UNIVERSAL HEIGHT

COLORS/FINISHES

• #01 Cotton

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14

• Certications: IAPMO(cUPC®), EPA WaterSense, State of Massachusetts, and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada, and others

• Legislative Compliance: California Green Building Code, City of Los Angeles Water Efciency Ordinance, and others

• Complies with CA Prop 65 warning requirements

• ADA compliant when installed with trip lever on the approach side

Page 2

MS436124CEMFG

MS436124CEMFG & MS436124CUMFG

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

Aquia IV® Cube Toilet 1.28 and 0.8 GPF

SPECIFICATIONS

Water Use

Flush System

Min. Water Pressure

Water Surface

Trap Diameter

Rough-in

Trap Seal

Warranty

Material

Shipping Weight

Shipping

Dimensions

1.28 & 0.8 GPF (4.8 & 3.0 LPF)

DYNAMAX TORNADO FLUSH

8 psi (Flowing)

5-5/8" x 4-1/8"

2-1/2"

12" (10" and 14" options available)

2-1/8"

One Year Limited Warranty

Vitreous China

CT446CUFGT40

85 lbs

ST436EMA

29 lbs

CT446CUFGT40

30-3/4"L x 17-3/8"W x 20-1/2"H

ST436EMA

17-1/4"L x 7-1/8"W x 15-1/4"H

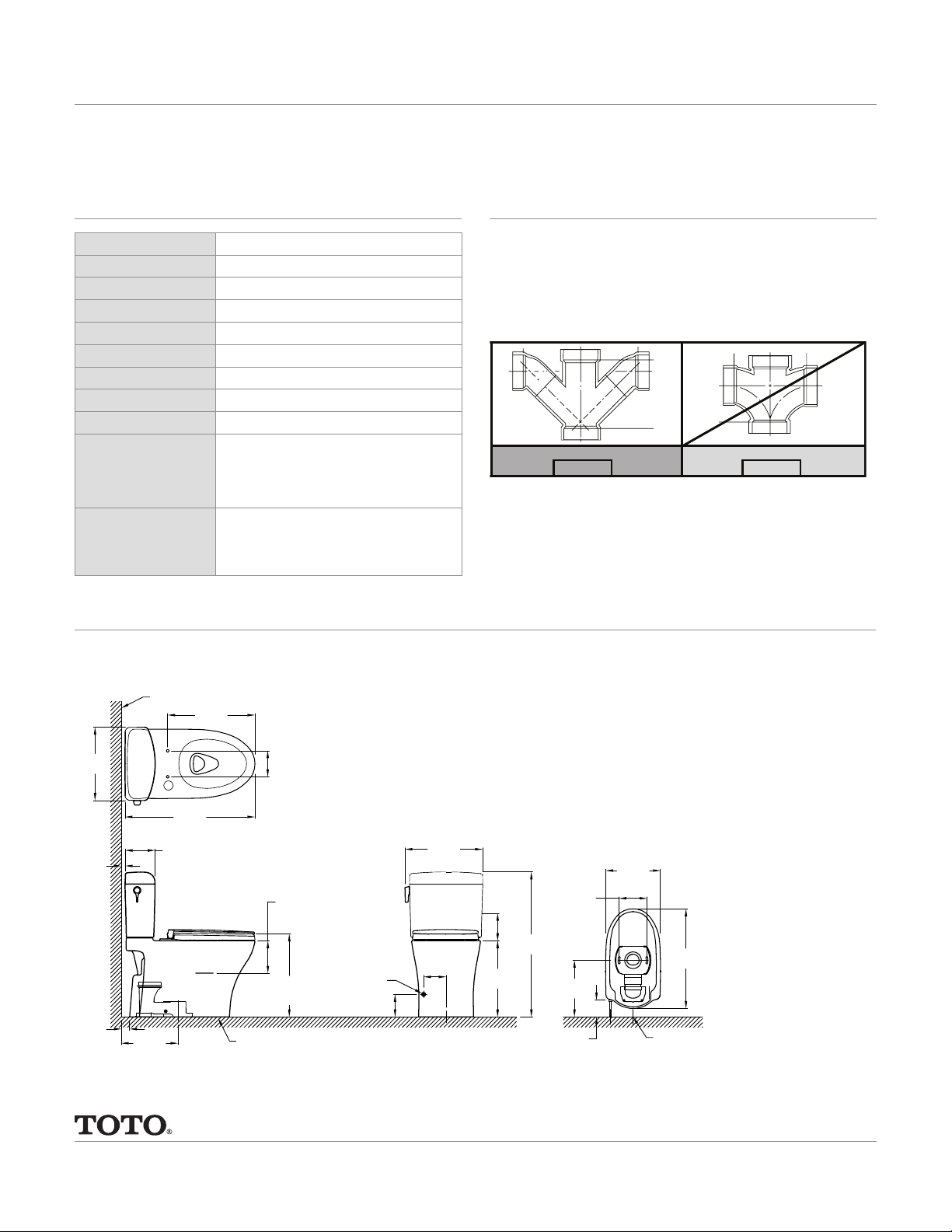

DIMENSIONS

INSTALLATION NOTES

Back-to-Back Toilet Installations:

TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

To maintain adequate wall gap between the back of

the tank and wall, mount the oor ange at a nominal 12” rough-in distance.

Finished Wall

18 1/2"

[470mm]

Finished Floor

5 1/2"

[140mm]

6 7/8"

[175mm]

Seat Height

17 5/8"

[447mm]

Supply

as Req'd

*4 3/4"

[121mm]

16 1/2"

[419mm]

*4 3/4"

[121mm]

* Suggested Dimension

15 9/16"

[395mm]

13/16"

[21mm]

1 3/4"

[45mm]

12"

[305mm]

27 9/16" [700mm]

6 3/8"

[161mm]

11 5/8"

[296mm]

5 3/4"

[147mm]

30 3/4"

[781mm]

16 1/8"

[410mm]

Max. protrusion

w/ shutoff valve

[152mm]

12"

[305mm]

3 9/16"

[90mm]

21 1/8"

[537mm]

Finished Wall

These dimensions and specications are subject to change without notice

# SS-01692 v.01
