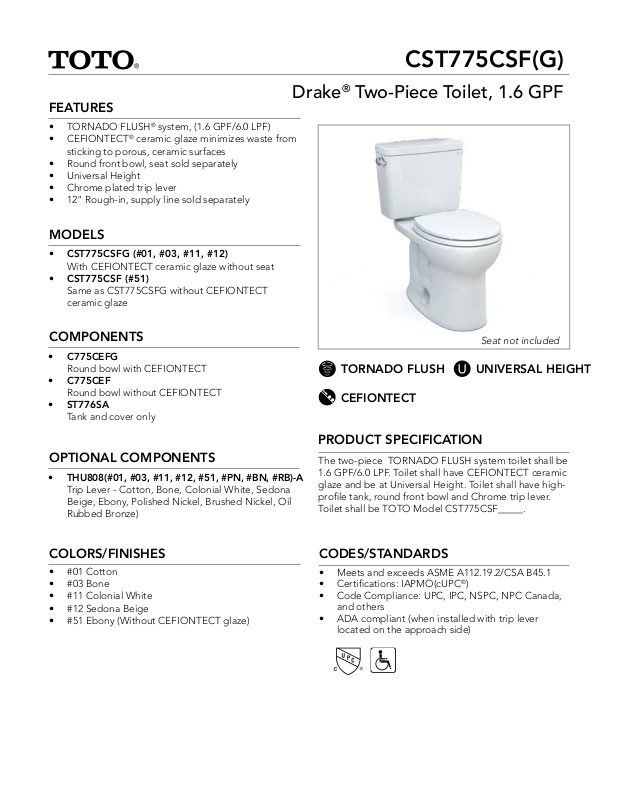

Page 1
FEATURES
• TORNADO FLUSH® system, (1.6 GPF/6.0 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous, ceramic surfaces
• Round front bowl, seat sold separately
• Universal Height
• Chrome plated trip lever
• 12" Rough-in, supply line sold separately
MODELS
• CST775CSFG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze without seat
• CST775CSF (#51)
Same as CST775CSFG without CEFIONTECT
ceramic glaze
CST775CSF(G)
Drake® Two-Piece Toilet, 1.6 GPF
COMPONENTS
• C775CEFG
Round bowl with CEFIONTECT
• C775CEF
Round bowl without CEFIONTECT
• ST776SA
Tank and cover only
OPTIONAL COMPONENTS
• THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona
Beige, Ebony, Polished Nickel, Brushed Nickel, Oil
Rubbed Bronze)
COLORS/FINISHES
• #01 Cotton
• #03 Bone
• #11 Colonial White
• #12 Sedona Beige
• #51 Ebony (Without CEFIONTECT glaze)
Seat not included
TORNADO FLUSH
UNIVERSAL HEIGHT
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece TORNADO FLUSH system toilet shall be
1.6 GPF/6.0 LPF. Toilet shall have CEFIONTECT ceramic
glaze and be at Universal Height. Toilet shall have highprofile tank, round front bowl and Chrome trip lever.
Toilet shall be TOTO Model CST775CSF_____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®)
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
CST775CSF(G)
CST775C(S)(E)FG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Two-Piece Toilet, 1.6 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.6 GPF (6.0 LPF)
TORNADO FLUSH
8 psi (Flowing)
9" x 6-5/8"
2-1/8"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
C775CEF(G)
53 lbs.
ST776SA
32 lbs.
C775CEF(G)
27-5/8" L x 15-1/2" W1 x 11-1/8" W2 x 18" H
ST776SA
18-3/4" L x 8-7/8" W x 16-1/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 12”
rough-in distance.
16 1/8"
[410 mm]
13/16"
[20 mm]
Finished Wall
Finished Wall
Finished Wall
Finished Wall
Finished Wall
26 3/8"
[670 mm]
7 3/8"
[187 mm]
1 9/16"
[40 mm]
16 9/16"
[420 mm]
Finished
Floor
5 1/2"
[140 mm]
Water Level
Water Level
Water Level
5 1/2"
5 1/2"
5 1/2"
[140 mm]
[140 mm]
[140 mm]
16 1/8"
[410 mm]
14"
[355 mm]
Supply
as Req'd
* Suggested
Dimension
* 7 1/2"
[190 mm]
17 3/16"
[436 mm]
* 4 5/16"
[109 mm]
30 1/8"
[766 mm]
6"
[152 mm]
12"
[305 mm]
9 13/16"
[250 mm]
[590 mm]
Finished
Wall
23 1/4"
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-02034 v.02
