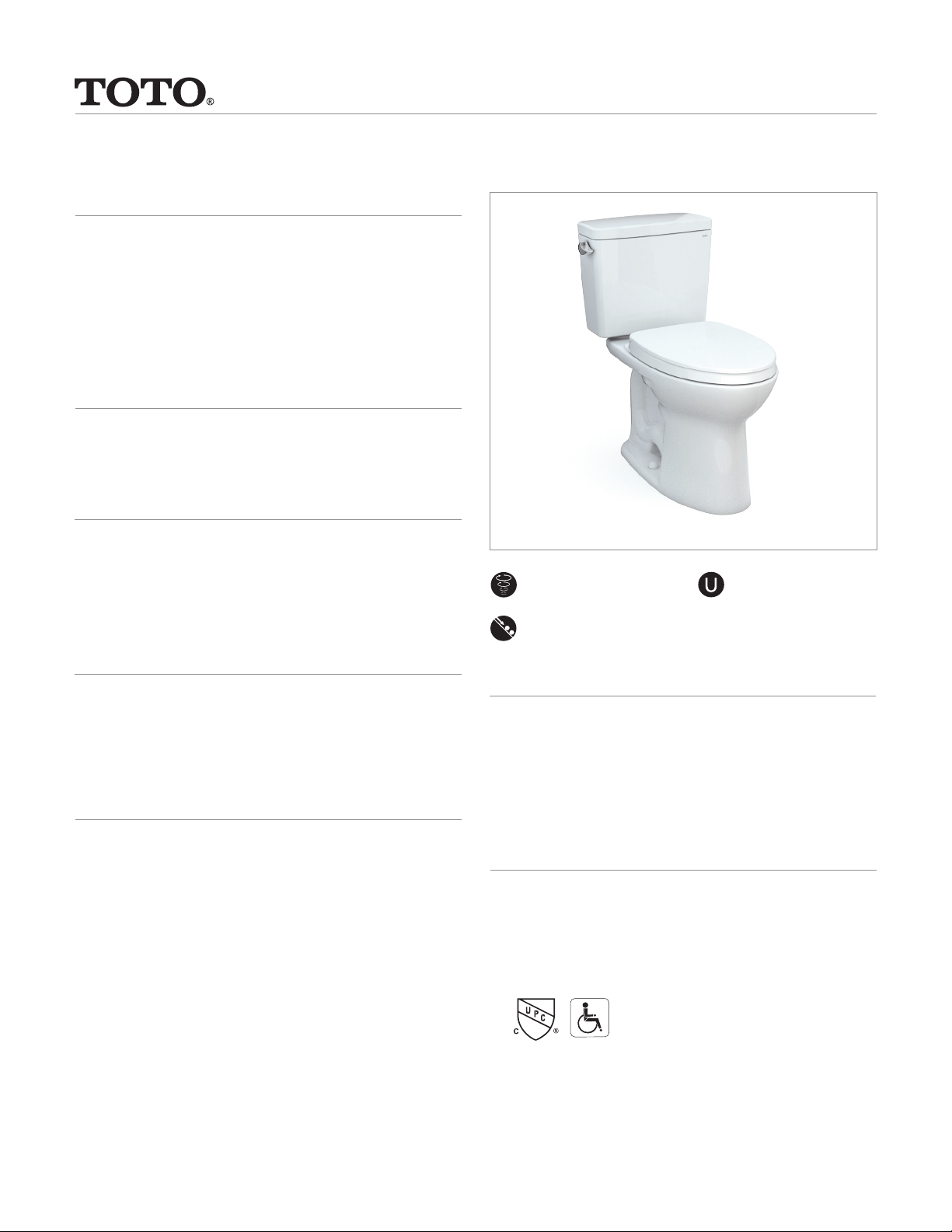

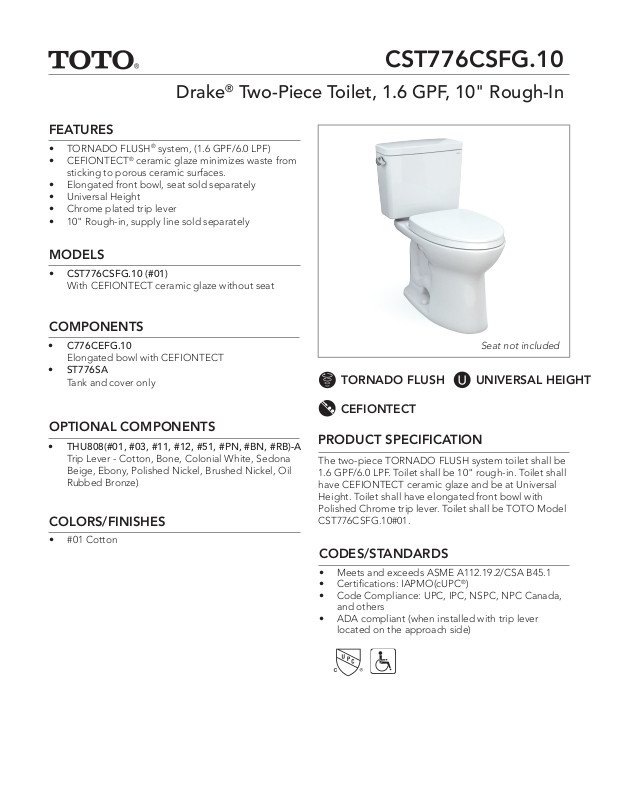

Drake® Two-Piece Toilet, 1.6 GPF, 10" Rough-In
FEATURES
• TORNADO FLUSH® system, (1.6 GPF/6.0 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces.
• Elongated front bowl, seat sold separately
• Universal Height
• Chrome plated trip lever
• 10" Rough-in, supply line sold separately
MODELS
• CST776CSFG.10 (#01)
With CEFIONTECT ceramic glaze without seat
COMPONENTS
CST776CSFG.10
• C776CEFG.10
Elongated bowl with CEFIONTECT
• ST776SA
Tank and cover only
OPTIONAL COMPONENTS
• THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona
Beige, Ebony, Polished Nickel, Brushed Nickel, Oil
Rubbed Bronze)
COLORS/FINISHES
• #01 Cotton
Seat not included
TORNADO FLUSH
UNIVERSAL HEIGHT
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece TORNADO FLUSH system toilet shall be
1.6 GPF/6.0 LPF. Toilet shall be 10" rough-in. Toilet shall
have CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall have elongated front bowl with
Polished Chrome trip lever. Toilet shall be TOTO Model
CST776CSFG.10#01.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®)
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2

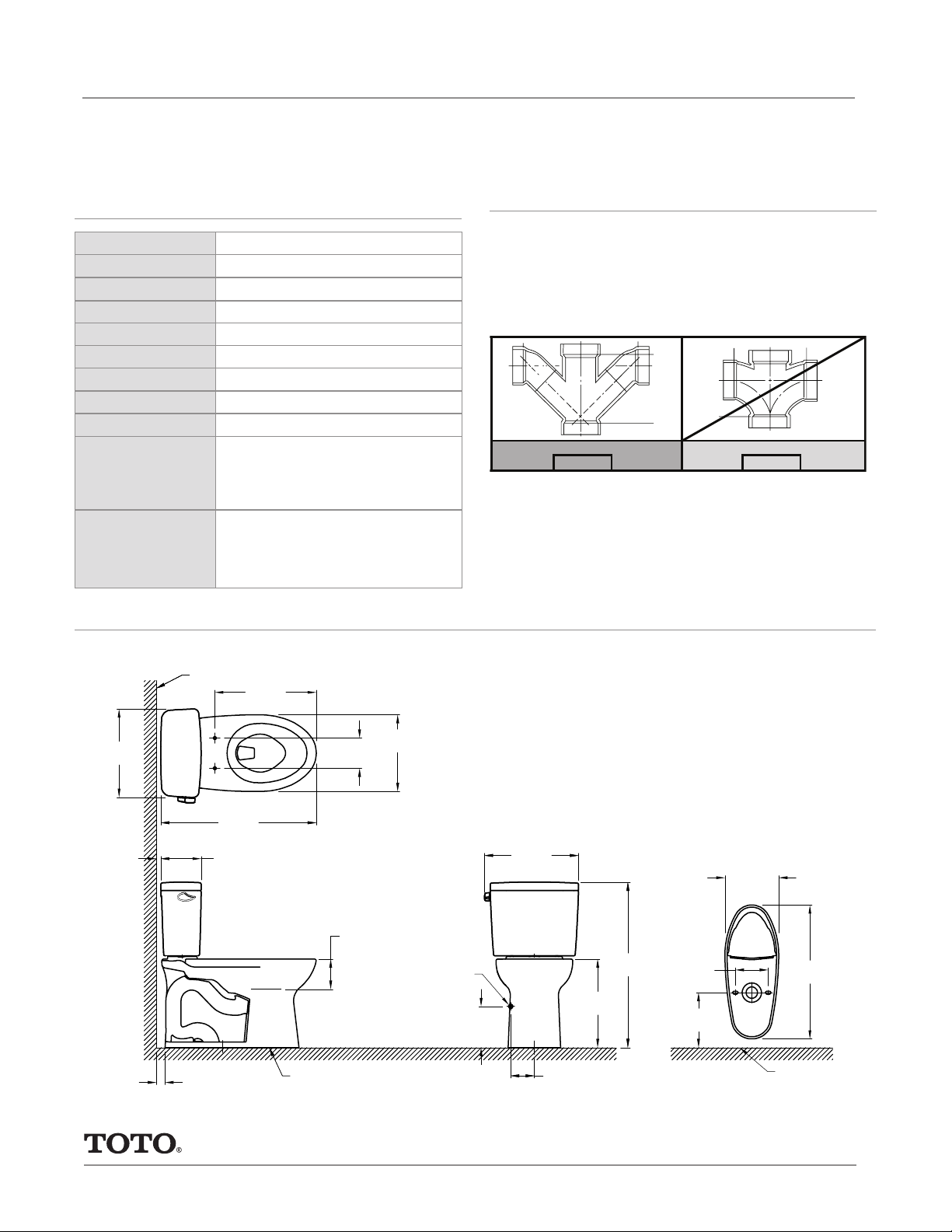

CST776CSFG.10
CST776C(S)(E)FG.10
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Two-Piece Toilet, 1.6 GPF, 10" Rough-In
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.6 GPF (6.0 LPF)
TORNADO FLUSH
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
10"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEFG.10
62 lbs.
ST776SA
32 lbs.
C776CEFG.10
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST776SA
18-3/4" L x 8-7/8" W x 16-1/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 10”
rough-in distance.
16 1/8"
[410 mm]
13/16"
[20 mm]
Finished Wall
Finished Wall
Finished Wall
Finished Wall
28 3/8"
28 3/8"
[720 mm]
[720 mm]
7 3/8"
[187 mm]
1 9/16"
[40 mm]
18 1/2"
[470 mm]
5 1/2"
[140 mm]
Water Level
5 1/2"
[140 mm]
Finished
Finished
Floor
Floor
14"
[355 mm]
Supply as
Req'd
* Suggested
Dimension
* 7 1/2"
[190 mm]
17 3/16"
17 3/16"
[436 mm]
[436 mm]
* 4 5/16"
* 4 5/16"
[109 mm]
[109 mm]
16 1/8"
[410 mm]
30 1/8"
30 1/8"
[766 mm]
[766 mm]
6"
[152 mm]
10"
[254 mm]
9 13/16"
[250 mm]
24 7/16"
[620 mm]
Finished
Wall
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-02019 v.02
