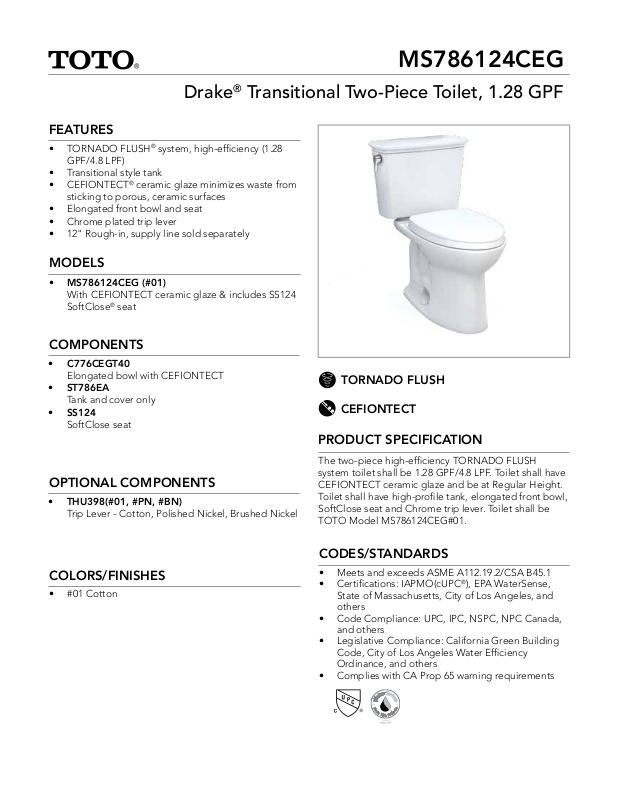

Page 1
Drake® Transitional Two-Piece Toilet, 1.28 GPF
FEATURES
• TORNADO FLUSH® system, high-efficiency (1.28
GPF/4.8 LPF)
• Transitional style tank
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous, ceramic surfaces
• Elongated front bowl and seat
• Chrome plated trip lever
• 12" Rough-in, supply line sold separately
MODELS
• MS786124CEG (#01)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose® seat
COMPONENTS
MS786124CEG
• C776CEGT40
Elongated bowl with CEFIONTECT
• ST786EA
Tank and cover only
• SS124
SoftClose seat
OPTIONAL COMPONENTS
• THU398(#01, #PN, #BN)
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall have
CEFIONTECT ceramic glaze and be at Regular Height.
Toilet shall have high-profile tank, elongated front bowl,
SoftClose seat and Chrome trip lever. Toilet shall be
TOTO Model MS786124CEG#01.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, City of Los Angeles, and
others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS786124CEG
CST786CEG w/ SS124
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Transitional Two-Piece Toilet, 1.28 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 GPF (4.8 LPF)
TORNADO FLUSH
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEGT40
57 lbs.
ST786EA
34 lbs.
C776CEGT40
29-3/4" L x 15" W1 x 10-5/8" W2 x 16-1/4" H
ST786EA
20" L x 9-3/8" W x 15-5/8" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 12”
rough-in distance.
18 5/8"
13/16"
Finished Wall
28 5/16"
[720 mm]
[199 mm]
1 5/8"
[40 mm]
3/16"
[4 mm]
7 13/16"
18 1/2"
[470 mm]
Ø1 15/16"
[Ø50 mm]
Finished
Floor
14"
[355 mm]
5 1/2"
[140 mm]
4 5/8"
[117 mm]
Water Level
5 1/2"
[140 mm]
SEAT HEIGHT
16 3/8"
[416 mm]
11 13/16"
[300 mm]
Supply as
Req'd
* Suggested
Dimension
* 7 1/2"
[190 mm]
14 1/16"
[357 mm]
7 7/8"
[200 mm]
19 1/8"
[485 mm]
* 4 5/16 "
[109 mm]
5 1/2"
[140 mm]
18 11/16"
[474 mm]
[37 mm]
2 3/8"
[60 mm]
14 15/16"
[380 mm]
1 7/16"
29 1/2"
[750 mm]
1 1/16"
[28 mm]
1 7/8"
[47 mm]
6"
[152 mm]
12"
[305 mm]
9 13/16"
[250 mm]
24 7/16"
[620 mm]
Finished
Wall
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01999 v.02
