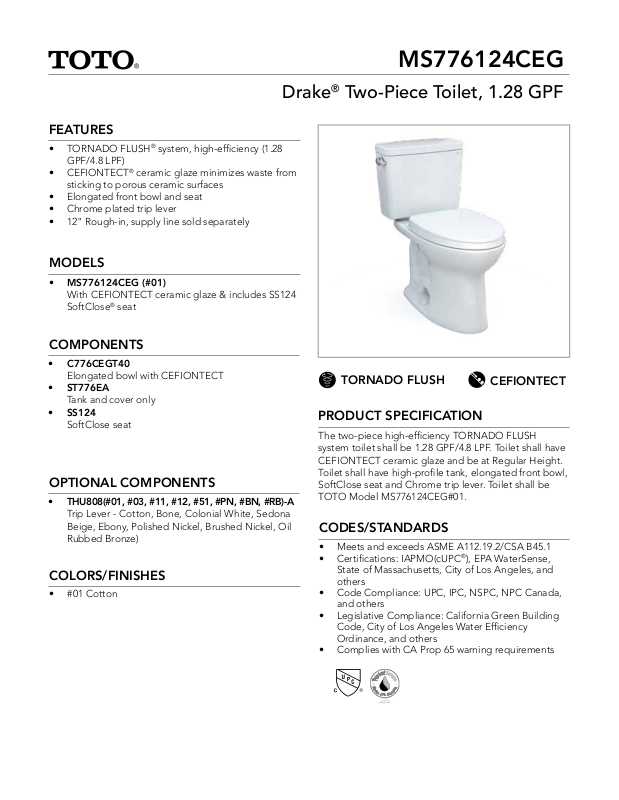

Page 1
Drake® Two-Piece Toilet, 1.28 GPF
FEATURES
• TORNADO FLUSH® system, high-efficiency (1.28
GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces
• Elongated front bowl and seat
• Chrome plated trip lever
• 12" Rough-in, supply line sold separately
MODELS
• MS776124CEG (#01)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose® seat
COMPONENTS
MS776124CEG
• C776CEGT40
Elongated bowl with CEFIONTECT
• ST776EA
Tank and cover only
• SS124
SoftClose seat
OPTIONAL COMPONENTS
• THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona
Beige, Ebony, Polished Nickel, Brushed Nickel, Oil
Rubbed Bronze)
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall have
CEFIONTECT ceramic glaze and be at Regular Height.
Toilet shall have high-profile tank, elongated front bowl,
SoftClose seat and Chrome trip lever. Toilet shall be
TOTO Model MS776124CEG#01.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, City of Los Angeles, and
others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS776124CEG
CST776C(S)(E)G w/ SS124
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Two-Piece Toilet, 1.28 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 GPF (4.8 LPF)
TORNADO FLUSH
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEGT40
57 lbs.
ST776EA
32 lbs.
C776CEGT40
29-3/4" L x 15" W1 x 10-5/8" W2 x 16-1/4" H
ST776EA
18-3/4" L x 8-7/8" W x 16-1/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 12”
rough-in distance.
16 1/8"
[410 mm]
13/16"
[20 mm]
Finished Wall
18 1/2"
[470 mm]
Ø1 15/16"
3/16"
[Ø50 mm]
1 5/8"
[4 mm]
7 3/8"
[187 mm]
Finished
Floor
28 5/16"
[720 mm]
[40 mm]
5 1/2"
[140 mm]
4 5/8"
[117 mm]
Water Level
5 1/2"
[140 mm]
SEAT HEIGHT
16 3/8"
[417 mm]
14"
[355 mm]
11 13/16"
[300 mm]
Supply as
Req'd
* 7 1/2"
[190 mm]
* Suggested
Dimension
14 1/16"
[357 mm]
7 7/8"
[200 mm]
17 3/16"
[436 mm]
* 4 5/16"
[109 mm]
5 1/2"
[140 mm]
18 11/16"
[474 mm]
[37 mm]
2 3/8"
[60 mm]
14 15/16"
[380 mm]
1 7/16"
29"
[736 mm]
1 1/16"
[28 mm]
1 7/8"
[47 mm]
6"
[152 mm]
12"
[305 mm]
9 13/16"
[250 mm]
24 7/16"
[620 mm]
Finished
Wall
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01991 v.02
