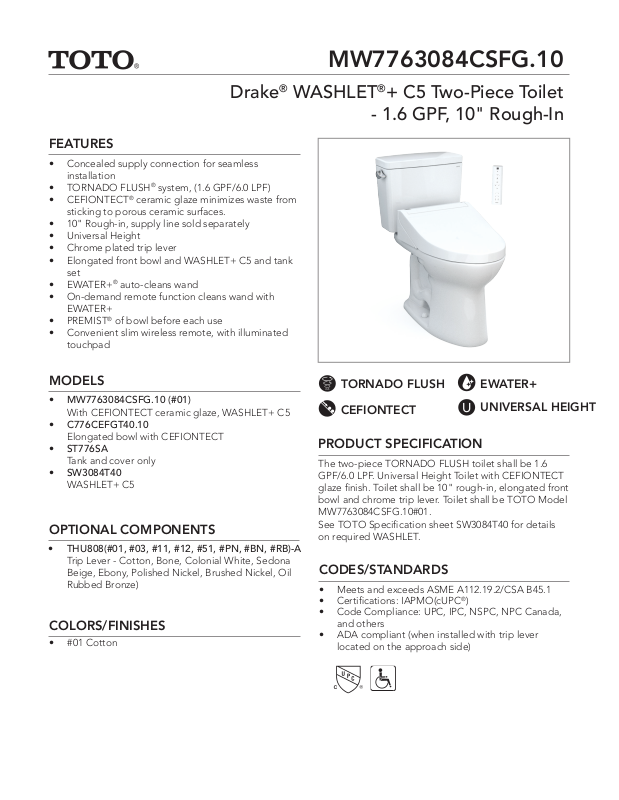

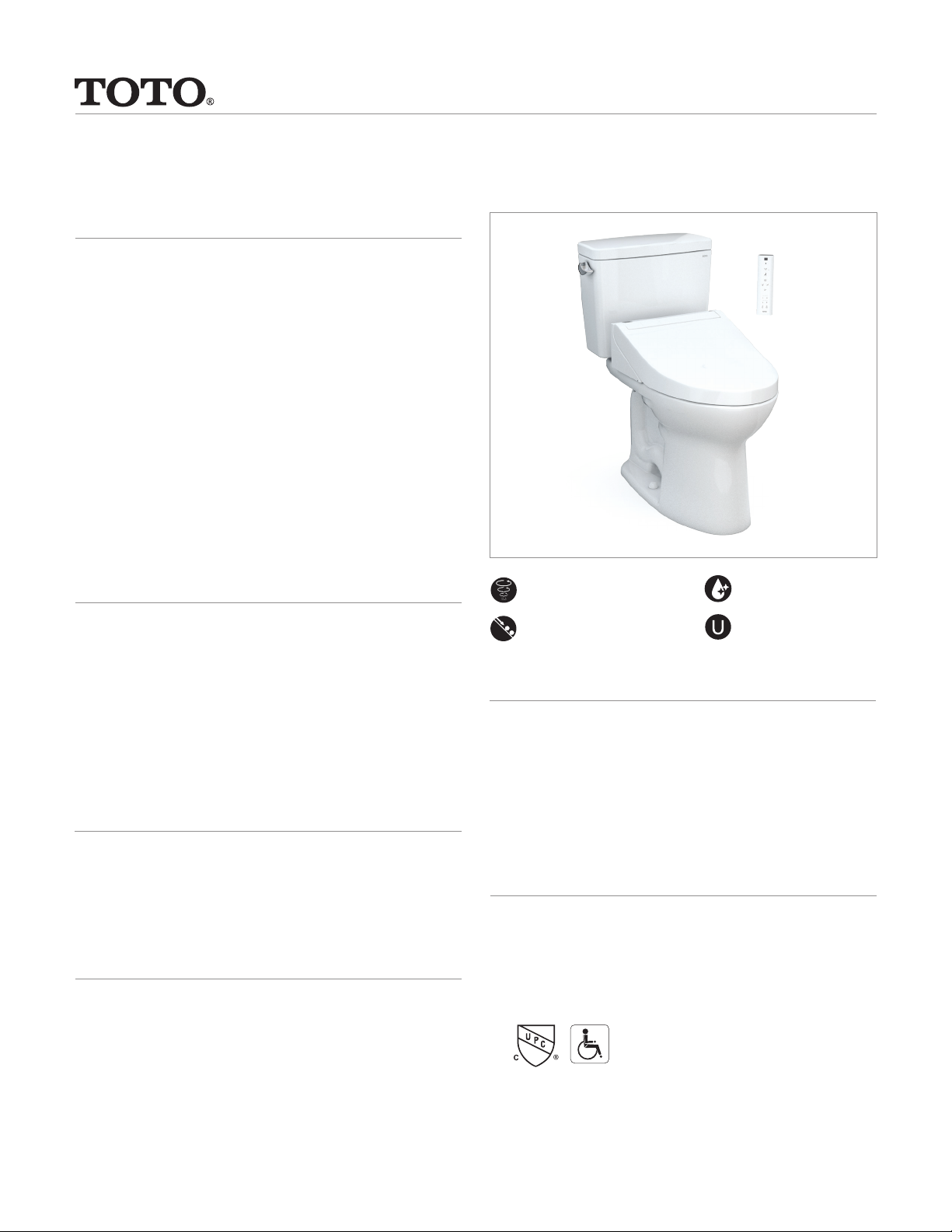

Drake® WASHLET®+ C5 Two-Piece Toilet
FEATURES
• Concealed supply connection for seamless
installation
• TORNADO FLUSH® system, (1.6 GPF/6.0 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces.
• 10" Rough-in, supply line sold separately
• Universal Height
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C5 and tank
set
• EWATER+® auto-cleans wand
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient slim wireless remote, with illuminated
touchpad
MW7763084CSFG.10
- 1.6 GPF, 10" Rough-In
MODELS
• MW7763084CSFG.10 (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
• C776CEFGT40.10
Elongated bowl with CEFIONTECT
• ST776SA
Tank and cover only
• SW3084T40
WASHLET+ C5
OPTIONAL COMPONENTS
• THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona
Beige, Ebony, Polished Nickel, Brushed Nickel, Oil
Rubbed Bronze)
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
CEFIONTECT
EWATER+
UNIVERSAL HEIGHT
PRODUCT SPECIFICATION
The two-piece TORNADO FLUSH toilet shall be 1.6
GPF/6.0 LPF. Universal Height Toilet with CEFIONTECT
glaze finish. Toilet shall be 10" rough-in, elongated front
bowl and chrome trip lever. Toilet shall be TOTO Model
MW7763084CSFG.10#01.
See TOTO Specification sheet SW3084T40 for details
on required WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®)
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
CST776C(S)(E)FG.10 w/ C5 Washlet+
MW7763084CSFG.10
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® WASHLET®+ C5 Two-Piece Toilet
- 1.6 GPF, 10" Rough-In
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3084T40 Specication Sheet for details on included WASHLET.
1.6 GPF (6.0 LPF)
TORNADO FLUSH
®
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
10"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEFGT40.10
62 lbs.
ST776SA
32 lbs.
C776CEFGT40.10
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST776SA
18-3/4" L x 8-7/8" W x 16-1/4" H

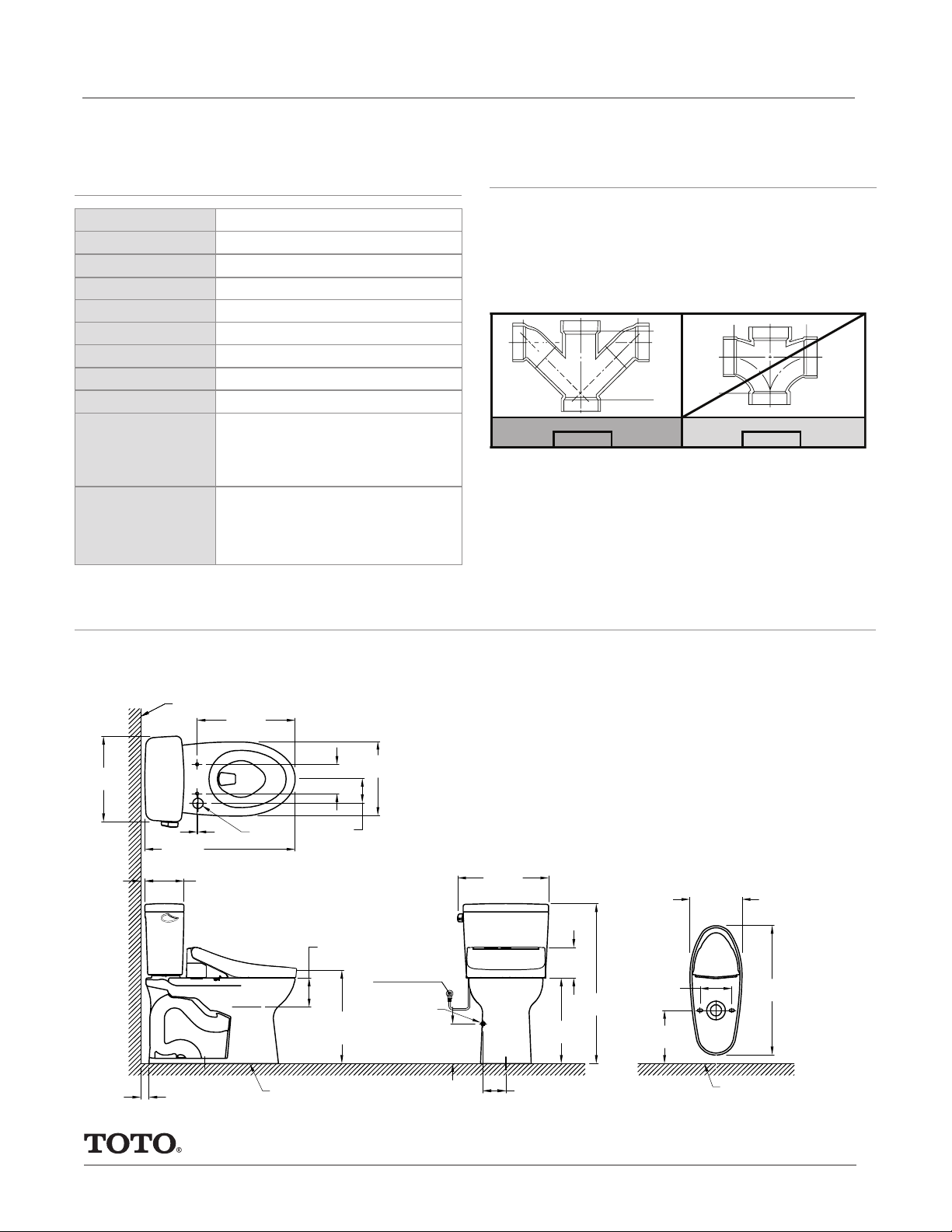

DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 10”
rough-in distance.
16 1/8"
[410 mm]
13/16"
[20 mm]
**GFCI outlet of 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
Finished Wall
Finished Wall
Finished Wall
28 5/16"
[720 mm]
1 9/16"
[40 mm]
3/16"
[4 mm]
7 3/8"
[187 mm]
18 1/2"
[470 mm]
14"
[355 mm]
5 1/2"
[140 mm]
Ø1 15/16"
[Ø50 mm]
Finished
Floor
4 5/8"
[117 mm]
Water Level
5 1/2"
[140 mm]
SEAT HEIGHT
17 5/8"
[447 mm]
**GFCI Outlet
12" from Floor
Supply as
Req'd
* Suggested
Dimension
* 7 1/2"
[190 mm]
17 3/16"
[436 mm]
[410 mm]
* 4 5/16"
* 4 5/16"
[109 mm]
[109 mm]
5 3/4"
[147 mm]
16 1/8"
30 1/8"
[766 mm]
6"
[152 mm]
10"
[254 mm]
9 13/16"
[250 mm]
Finished
Wall
24 7/16"
[620 mm]
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-02028 v.01
