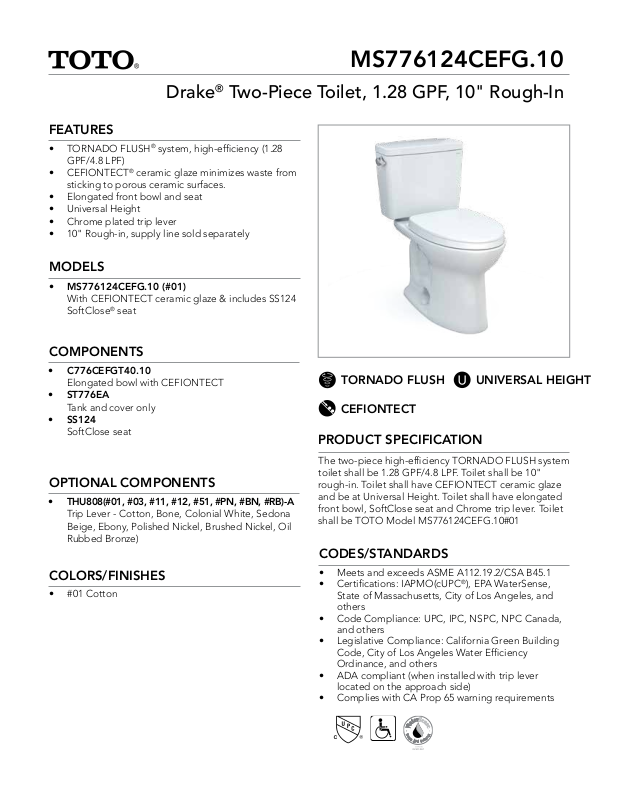

Page 1
Drake® Two-Piece Toilet, 1.28 GPF, 10" Rough-In
FEATURES
• TORNADO FLUSH® system, high-efficiency (1.28
GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces.
• Elongated front bowl and seat
• Universal Height
• Chrome plated trip lever
• 10" Rough-in, supply line sold separately
MODELS
• MS776124CEFG.10 (#01)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose® seat
COMPONENTS
MS776124CEFG.10
• C776CEFGT40.10
Elongated bowl with CEFIONTECT
• ST776EA
Tank and cover only
• SS124
SoftClose seat
OPTIONAL COMPONENTS
• THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona
Beige, Ebony, Polished Nickel, Brushed Nickel, Oil
Rubbed Bronze)
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
UNIVERSAL HEIGHT
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH system
toilet shall be 1.28 GPF/4.8 LPF. Toilet shall be 10"
rough-in. Toilet shall have CEFIONTECT ceramic glaze
and be at Universal Height. Toilet shall have elongated
front bowl, SoftClose seat and Chrome trip lever. Toilet
shall be TOTO Model MS776124CEFG.10#01
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, City of Los Angeles, and
others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MS776124CEFG.10
[410 mm]
CST776C(S)(E)FG.10 w/ SS124
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Two-Piece Toilet, 1.28 GPF, 10" Rough-In
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 GPF (4.8 LPF)
TORNADO FLUSH
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
10"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEFGT40.10
62 lbs.
ST776EA
32 lbs.
C776CEFGT40.10
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST776EA
18-3/4" L x 8-7/8" W x 16-1/4" H
DIMENSIONS
Finished Wall
Finished Wall
Finished Wall
Finished Wall
16 1/8"
18 1/2"
[470 mm]
®
5 1/2"
[140 mm]
14"
[355 mm]
11 13/16"
[300 mm]
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 10”
rough-in distance.
14 1/16"
[357 mm]
5 1/2"
[140 mm]
18 5/8"
[474 mm]
1 1/16"
[28 mm]
4 5/8"
[117 mm]
Water Level
5 1/2"
[140 mm]
SEAT HEIGHT
17 5/8"
[447 mm]
Supply as
Req'd
[190 mm]
* Suggested
Dimension
* 7 1/2"
13/16"
[20 mm]
28 5/16"
[720 mm]
1 9/16"
[40 mm]
3/16"
[4 mm]
7 3/8"
[187 mm]
Ø1 15/16"
[Ø50 m m]
Finished
Finished
Floor
Floor
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
7 7/8"
[200 mm]
17 3/16"
[436 mm]
* 4 5/16"
* 4 5/16"
[109 mm]
[109 mm]
2 5/16"
[60 mm]
16 1/8"
[410 mm]
1 7/16"
[37 mm]
30 1/8"
[766 mm]
1 7/8"
[47 mm]
6"
[152 mm]
10"
[254 mm]
9 13/16"
[250 mm]
[620 mm]
Finished
Wall
24 7/16"
# SS-02021 v.02
