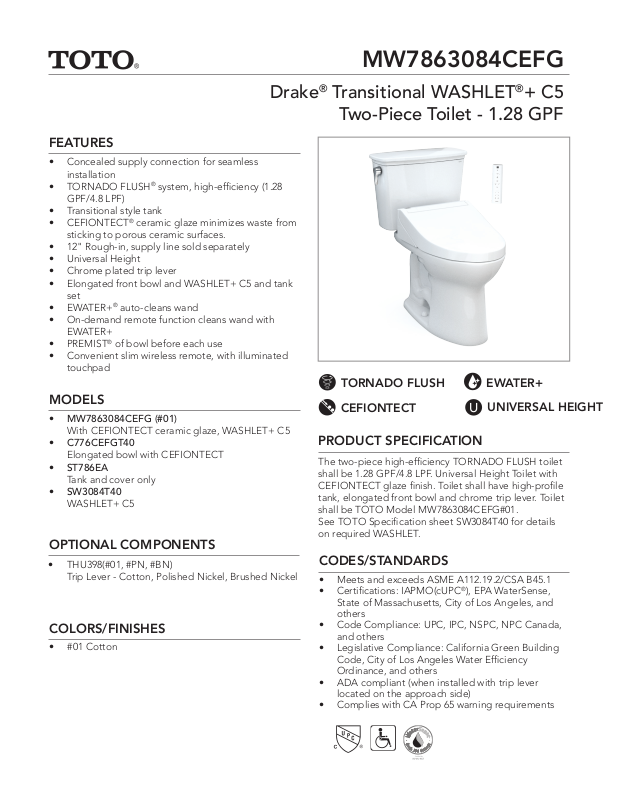

Drake® Transitional WASHLET®+ C5
FEATURES
• Concealed supply connection for seamless
installation
• TORNADO FLUSH® system, high-efficiency (1.28
GPF/4.8 LPF)
• Transitional style tank
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces.
• 12" Rough-in, supply line sold separately
• Universal Height
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C5 and tank
set
• EWATER+® auto-cleans wand
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient slim wireless remote, with illuminated
touchpad
MODELS
• MW7863084CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
• C776CEFGT40
Elongated bowl with CEFIONTECT
• ST786EA
Tank and cover only
• SW3084T40
WASHLET+ C5
OPTIONAL COMPONENTS
• THU398(#01, #PN, #BN)
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
MW7863084CEFG
Two-Piece Toilet - 1.28 GPF
TORNADO FLUSH
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH toilet
shall be 1.28 GPF/4.8 LPF. Universal Height Toilet with
CEFIONTECT glaze finish. Toilet shall have high-profile
tank, elongated front bowl and chrome trip lever. Toilet
shall be TOTO Model MW7863084CEFG#01.
See TOTO Specification sheet SW3084T40 for details
on required WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, City of Los Angeles, and
others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
EWATER+
UNIVERSAL HEIGHT
Page 2

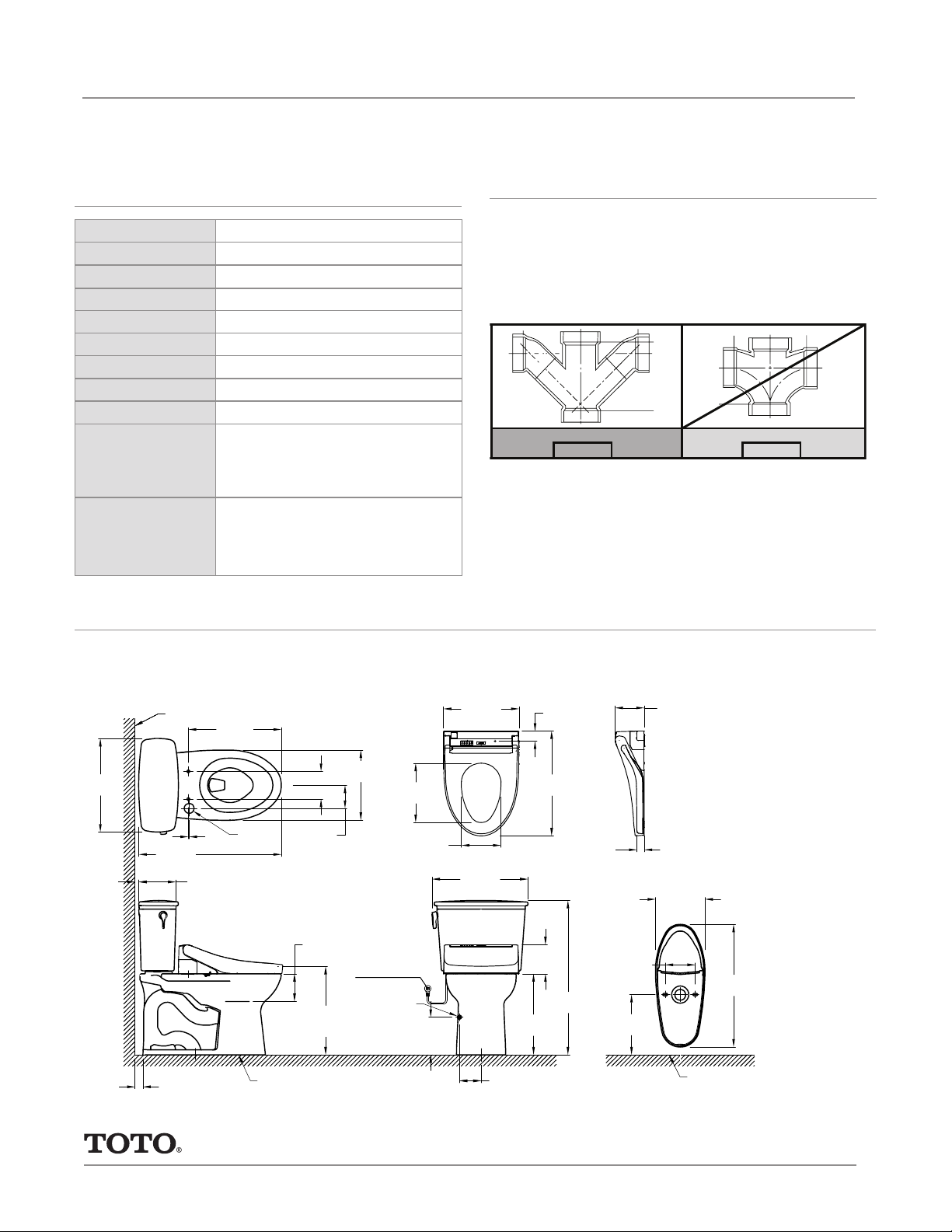

CST786CEFG w/ C5 Washlet+
MW7863084CEFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Transitional WASHLET®+ C5
Two-Piece Toilet - 1.28 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3084T40 Specication Sheet for details on included WASHLET.
1.28 GPF (4.8 LPF)
TORNADO FLUSH
®
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEFGT40
62 lbs.
ST786EA
34 lbs.
C776CEFGT40
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST786EA
20" L x 9-3/8" W x 15-5/8" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 12”
rough-in distance.
18 5/8"
[473 mm ]
13/16"
[20 mm]
**GFCI outlet of 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
Finished Wall
Finished WallFinished Wall
28 3/8"
[720 mm ]
1 9/16"
[40 mm]
3/16"
[4 mm]
7 3/8"
[187 mm ]
18 1/2"
[470 mm]
14"
[355 mm ]
5 1/2"
[140 mm]
Ø1 15/16"
[Ø50 mm]
Finished
Floor
4 5/8"
[117 mm ]
Wate r Level
5 1/2"
[140 mm ]
SEAT HEIGHT
17 5/8"
[447 mm ]
**GFCI Outlet
12" from Floor
11 13/16"
[300 mm ]
Supply as
Req'd
* Suggested
Dimension
7 7/8"
[200 mm ]
* 7 1/2"
[190 mm]
15 1/16"
[382 mm ]
19 1/16"
[485 mm ]
* 4 5/16"
* 4 5/16"
[109 mm ]
[109 mm ]
20 13/16"
[529 mm ]
5 3/4"
[147 mm ]
16 1/8"
[410 mm ]
2"
[51 mm]
30 11/16"
[780 mm ]
1 7/16"
[37 mm]
6"
[152 mm ]
12"
[305 mm]
5 13/16"
[147 mm ]
9 13/16"
[250 mm]
Finished
Wall
24 7/16"
[620 mm ]
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-02017 v.01
