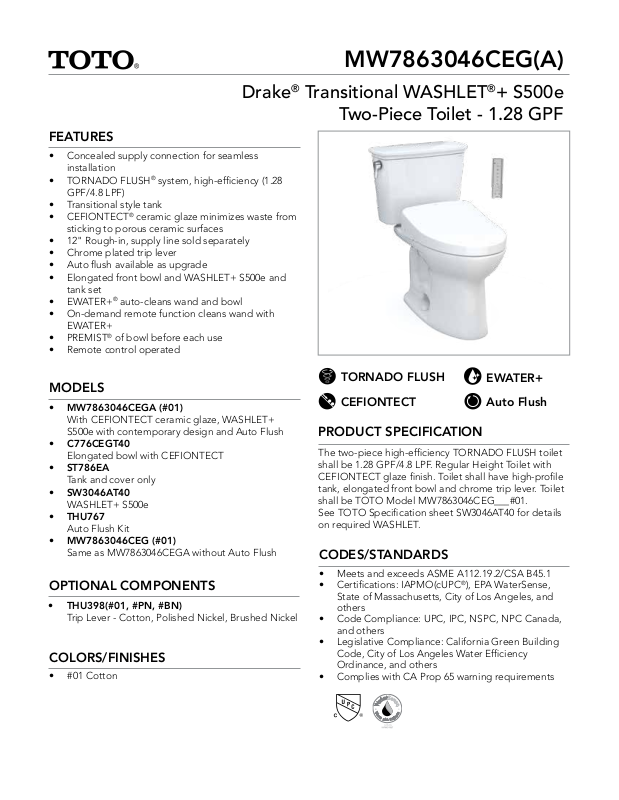

Page 1
Drake® Transitional WASHLET®+ S500e
FEATURES
• Concealed supply connection for seamless
installation
• TORNADO FLUSH® system, high-efficiency (1.28
GPF/4.8 LPF)
• Transitional style tank
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces
• 12" Rough-in, supply line sold separately
• Chrome plated trip lever
• Auto flush available as upgrade
• Elongated front bowl and WASHLET+ S500e and
tank set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Remote control operated
®
auto-cleans wand and bowl
MW7863046CEG(A)
Two-Piece Toilet - 1.28 GPF
MODELS
• MW7863046CEGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+
S500e with contemporary design and Auto Flush
• C776CEGT40
Elongated bowl with CEFIONTECT
• ST786EA
Tank and cover only
• SW3046AT40
WASHLET+ S500e
• THU767
Auto Flush Kit
• MW7863046CEG (#01)
Same as MW7863046CEGA without Auto Flush
OPTIONAL COMPONENTS
• THU398(#01, #PN, #BN)
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
CEFIONTECT
EWATER+
Auto Flush
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH toilet
shall be 1.28 GPF/4.8 LPF. Regular Height Toilet with
CEFIONTECT glaze finish. Toilet shall have high-profile
tank, elongated front bowl and chrome trip lever. Toilet
shall be TOTO Model MW7863046CEG___#01.
See TOTO Specification sheet SW3046AT40 for details
on required WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, City of Los Angeles, and
others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
CST786CEG w/ S500e or S550e
MW7863046CEG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Transitional WASHLET®+ S500e
Two-Piece Toilet - 1.28 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3046AT40 Specication Sheet for details on included WASHLET.
1.28 GPF (4.8 LPF)
TORNADO FLUSH
®
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CEGT40
57 lbs.
ST786EA
34 lbs.
C776CEGT40
29-3/4" L x 15" W1 x 10-5/8" W2 x 16-1/4" H
ST786EA
20" L x 9-3/8" W x 15-5/8" H

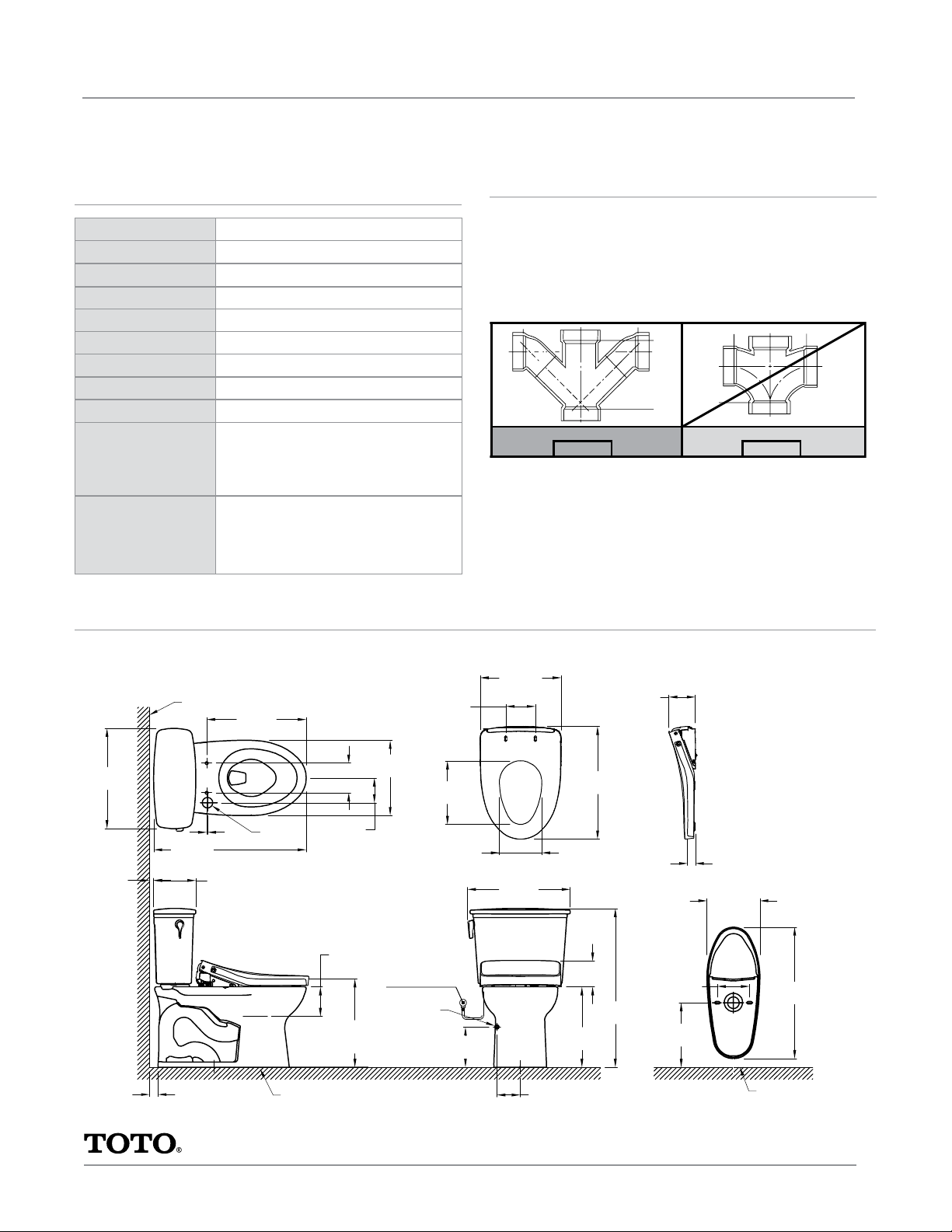

DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 12”
rough-in distance.
18 5/8"
[473 mm]
13/16"
[20 mm]
**GFCI outlet of 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
28 5/16"
[720 mm]
1 5/8"
[40 mm]
3/16"
[4 mm]
7 13/16"
[199 mm]
18 1/2"
[470 mm]
14"
[355 mm]
5 1/2"
[140 mm]
Ø1 15/16"
[Ø50 mm]
Finished
Floor
4 5/8"
[117 mm]
Water Level
5 1/2"
[140 mm]
SEAT HEIGHT
16 7/16"
[417 mm]
**GFCI Outlet
12" from Floor
Supply as
5 1/2"
[140 mm]
11 13/16"
[300 mm]
[200 mm]
Req'd
* Suggested
Dimension
7 7/8"
* 7 1/2"
[190 mm]
15 1/16"
[382 mm]
19 1/16"
[485 mm]
* 4 5/16"
[109 mm]
20 15/16"
[532 mm]
4 13/16"
[122 mm]
14 15/16"
[380 mm]
[125 mm]
29 1/2"
[750 mm]
4 15/16"
1 7/16"
[37 mm]
6"
[152 mm]
12"
[305 mm]
9 13/16"
[250 mm]
24 7/16"
[620 mm]
Finished
Wall
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-02000 v.02
