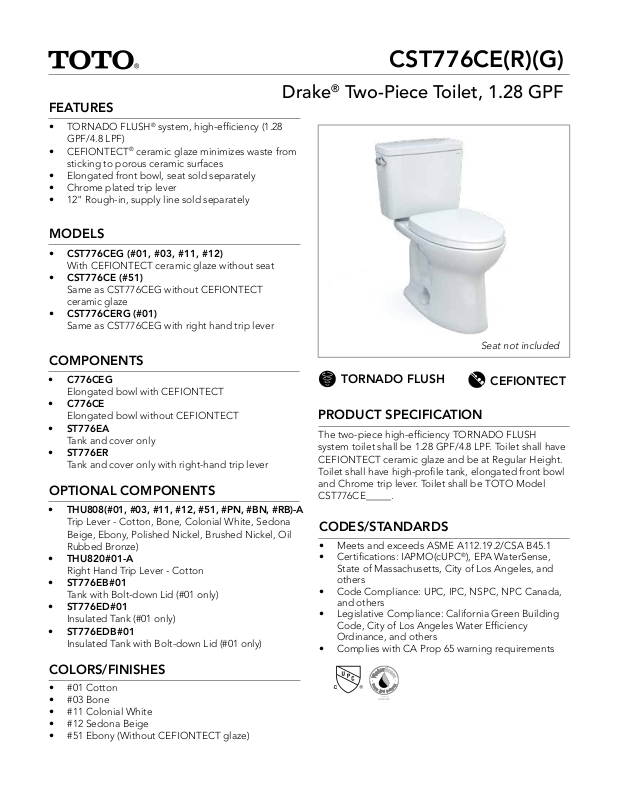

Drake® Two-Piece Toilet, 1.28 GPF
FEATURES
• TORNADO FLUSH® system, high-efficiency (1.28
GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces
• Elongated front bowl, seat sold separately
• Chrome plated trip lever
• 12" Rough-in, supply line sold separately
MODELS
• CST776CEG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze without seat
• CST776CE (#51)
Same as CST776CEG without CEFIONTECT
ceramic glaze
• CST776CERG (#01)
Same as CST776CEG with right hand trip lever
COMPONENTS
CST776CE(R)(G)
Seat not included
• C776CEG
Elongated bowl with CEFIONTECT
• C776CE
Elongated bowl without CEFIONTECT
• ST776EA
Tank and cover only
• ST776ER
Tank and cover only with right-hand trip lever
OPTIONAL COMPONENTS
• THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona
Beige, Ebony, Polished Nickel, Brushed Nickel, Oil
Rubbed Bronze)
• THU820#01-A
Right Hand Trip Lever - Cotton
• ST776EB#01
Tank with Bolt-down Lid (#01 only)
• ST776ED#01
Insulated Tank (#01 only)
• ST776EDB#01
Insulated Tank with Bolt-down Lid (#01 only)
COLORS/FINISHES
• #01 Cotton
• #03 Bone
• #11 Colonial White
• #12 Sedona Beige
• #51 Ebony (Without CEFIONTECT glaze)
TORNADO FLUSH
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall have
CEFIONTECT ceramic glaze and be at Regular Height.
Toilet shall have high-profile tank, elongated front bowl
and Chrome trip lever. Toilet shall be TOTO Model
CST776CE_____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, City of Los Angeles, and
others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
CST776CE(R)(G)
CST776C(S)(E)G
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Two-Piece Toilet, 1.28 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 GPF (4.8 LPF)
TORNADO FLUSH
8 psi (Flowing)
9" x 6-7/8"
2-1/8"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
C776CE(G)
57 lbs.
ST776EA and ST776ER
32 lbs.
C776CE(G)
29-3/4" L x 15" W1 x 10-5/8" W2 x 16-1/4" H
ST776EA and ST776ER
18-3/4" L x 8-7/8" W x 16-1/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the
tank and wall, mount the floor flange at a nominal 12”
rough-in distance.
16 1/8"
[410 mm]
13/16"
[20 mm]
Finished Wall
18 1/2"
[470 mm]
28 5/16"
[720 mm]
7 3/8"
[187 mm]
1 5/8"
[40 mm]
Finished
Floor
5 1/2"
[140 mm]
Water Level
5 1/2"
[140 mm]
14"
[355 mm]
Supply as
Req'd
* 7 1/2"
[190 mm]
* Suggested
Dimension
17 3/16"
[436 mm]
14 15/16"
[380 mm]
* 4 5/16"
[109 mm]
29"
[736 mm]
6"
[152 mm]
12"
[305 mm]
9 13/16"
[250 mm]
24 7/16"
[620 mm]
Finished
Wall
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-02050 v.02
