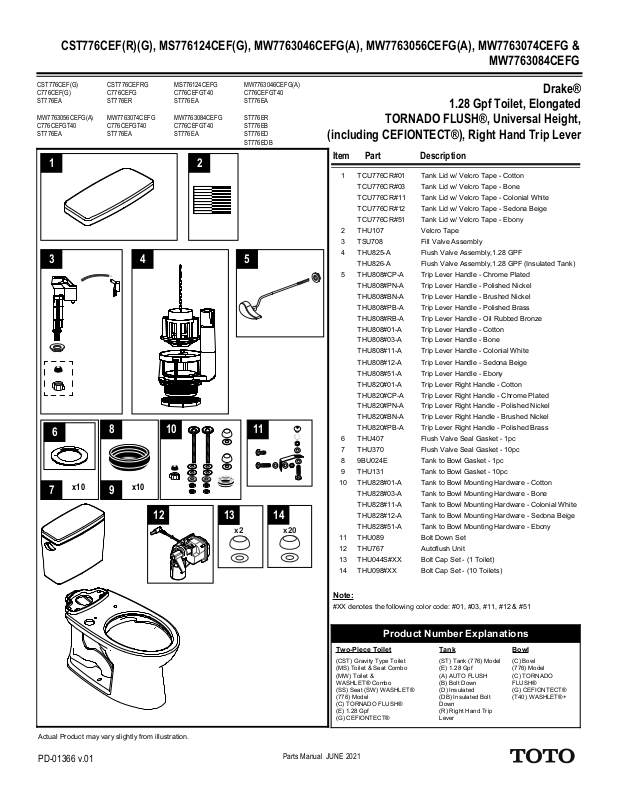

Page 1
CST776CEF(G)
C776CEF(G)
S
T776EA
M
C
S
CST776CEFRG
C776CEFG
ST776ER
M
C
S
MS776124CEFG
Drake®
d
,
(including CEFIONTECT®), Right Hand Trip Lever
Two-Piece Toilet
(CST) Gravity Type Toi let
(
(
W
(
(
(
(
(
(ST) Tank (776) Model
(
(
(
(
(
D
(
Lev
Bowl
(C) Bowl
#XX denotes the following color code: #01, #03, #11, #12 & #51
Tank
Product Number Explanations
Note:
Item
Part
Description
Actual Product may vary slightly from illustration.
CST776CEF(R)(G), MS776124CEF(G), MW7763046CEFG(A), MW7763056CEFG(A), MW7763074CEFG &
MW7763084CEFG
MW7763046CEFG(A)
ST776EDB
1
TCU776CR#01
Tank Lid w/ Velcro Tape - Cotton
TCU776CR#03
Tank Lid w/ Velcro Tape - Bone
TCU776CR#11
Tank Lid w/ Velcro Tape - Colonial White
TCU776CR#12
Tank Lid w/ Velcro Tape - Sedona Beige
TCU776CR#51
Tank Lid w/ Velcro Tape - Ebony
2
THU107
Velcro Tape
3
TSU708
Fill Valve Assembly
4
THU825-A
Flush Valve Assembly,1.28 GPF
THU826-A
Flush Valve Assembly,1.28 GPF (Insulated Tank)
5
THU808#CP-A
Trip Lever Handle - Chrome Plated
THU808#PN-A
Trip Lever Handle - Polished Nickel
THU808#BN-A
Trip Lever Handle - Brushed Nickel
THU808#PB-A
Trip Lever Handle - Polished Brass
THU808#RB-A
Trip Lever Handle - Oil Rubbed Bronze
THU808#01-A
Trip Lever Handle - Cotton
THU808#03-A
Trip Lever Handle - Bone
THU808#11-A
Trip Lever Handle - Colonial White
THU808#12-A
Trip Lever Handle - Sedona Beige
THU808#51-A
Trip Lever Handle - Ebony
THU820#01-A
Trip Lever Right Handle - Cotton
THU820#CP-A
Trip Lever Right Handle - Chrome Plated
THU820#PN-A
Trip Lever Right Handle - Polished Nickel
THU820#BN-A
Trip Lever Right Handle - Brushed Nickel
THU820#PB-A
Trip Lever Right Handle - Polished Brass
6
THU407
Flush Valve Seal Gasket - 1pc
7
THU370
Flush Valve Seal Gasket - 10pc
8
9BU024E
Tank to Bowl Gasket - 1pc
9
THU131
Tank to Bowl Gasket - 10pc
10
THU828#01-A
Tank to Bowl Mounting Hardware - Cotton
THU828#03-A
Tank to Bowl Mounting Hardware - Bone
THU828#11-A
Tank to Bowl Mounting Hardware - Colonial White
THU828#12-A
Tank to Bowl Mounting Hardware - Sedona Beige
THU828#51-A
Tank to Bowl Mounting Hardware - Ebony
11
THU089
Bolt Down Set
12
THU767
Autoflush Unit
13
THU044S#XX
Bolt Cap Set - (1 Toilet)
14
THU098#XX
Bolt Cap Set - (10 Toilets)
PD-01366 v.01
Parts Manual JUNE 2021
W7763056CEFG(A)
776CEFGT40
T776EA
W7763074CEFG
776CEFGT40
T776EA
C776CEFGT40
ST776EA
MW7763084CEFG
C776CEFGT40
ST776EA
C776CEFGT40
ST776EA
ST776ER
ST776EB
ST776ED
1.28 Gpf Toilet, Elongate
TORNADO FLUSH®, Universal Height
1
3
6
8 10 11
4 5
2
7 9
x10x10
12
13
x2
14
x20
MS) Toilet & Seat Combo
MW) Toilet &
ASHLET® Combo
SS) Seat (SW) W ASHLET®
776) Model
C) TORNADO FLUSH®
E) 1.28 Gpf
G) CEFIONTECT®
E) 1.28 Gpf
A) AUTO FLUSH
B) Bolt Down
D) Insulated
DB) Insulated Bolt
own
R) Right Hand Trip
er
(776) Model
(C) TORNADO
FLUSH®
(G) CEFIONTECT®
(T40) WASHLET®+
