FEATURES
• 1/2” NPT connection to wall
• G 1/2" connection to hose
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
PRODUCT SPECIFICATION
Wall outlet shall have a 1/2” NPT connection to wall.
Product shall have G 1/2” connection to hose. Product
shall be TOTO Model TBW02013U#____ .

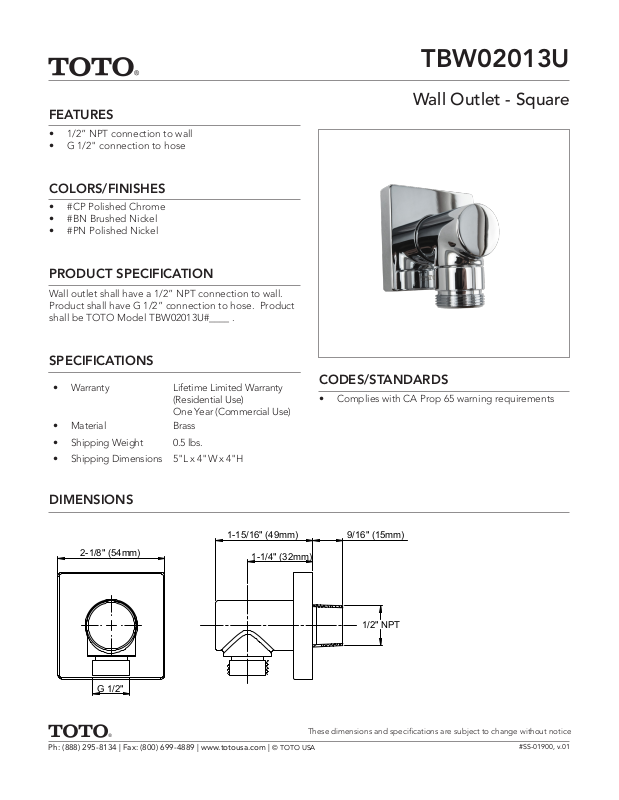

TBW02013U
Wall Outlet - Square
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 0.5 lbs.
• Shipping Dimensions 5"L x 4"W x 4"H
DIMENSIONS
1-15/16" (49mm)
2-1/8" (54mm)
1-1/4" (32mm)
CODES/STANDARDS
• Complies with CA Prop 65 warning requirements
9/16" (15mm)
1/2" NPT
G 1/2"
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-01900, v.01
