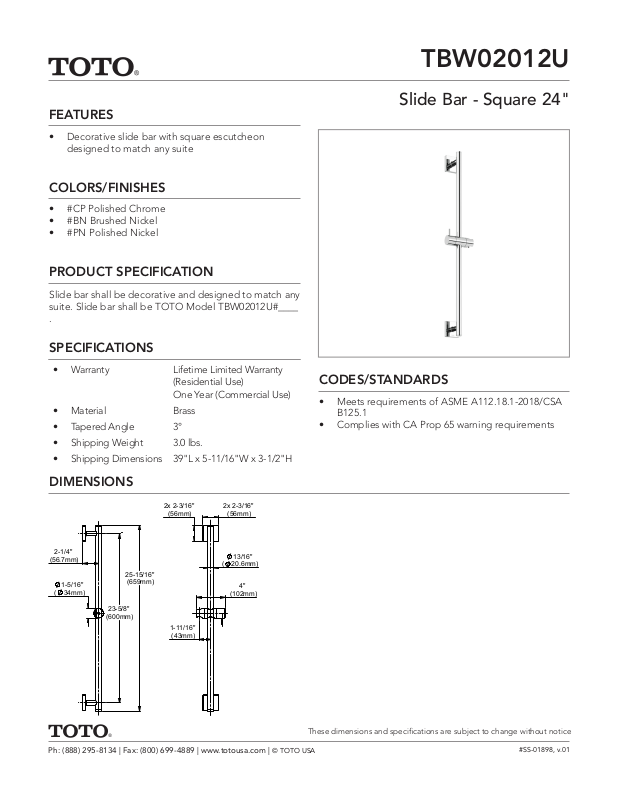

Page 1
FEATURES
2x 2-3/16"
2x 2-3/16"
• Decorative slide bar with square escutcheon
designed to match any suite
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
PRODUCT SPECIFICATION
Slide bar shall be decorative and designed to match any
suite. Slide bar shall be TOTO Model TBW02012U#____
.
SPECIFICATIONS
TBW02012U
Slide Bar - Square 24"
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Tapered Angle 3°
• Shipping Weight 3.0 lbs.
• Shipping Dimensions 39"L x 5-11/16"W x 3-1/2"H
DIMENSIONS
(56mm)
13/16"
(
20.6mm)
(102mm)
4"
2-1/4"
(
1-5/16"
34mm)
25-15/16"
(659mm)
23-5/8"
(600mm)
(56mm)
1-11/16"
(43mm)
CODES/STANDARDS
• Meets requirements of ASME A112.18.1-2018/CSA
B125.1
• Complies with CA Prop 65 warning requirements
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-01898, v.01
