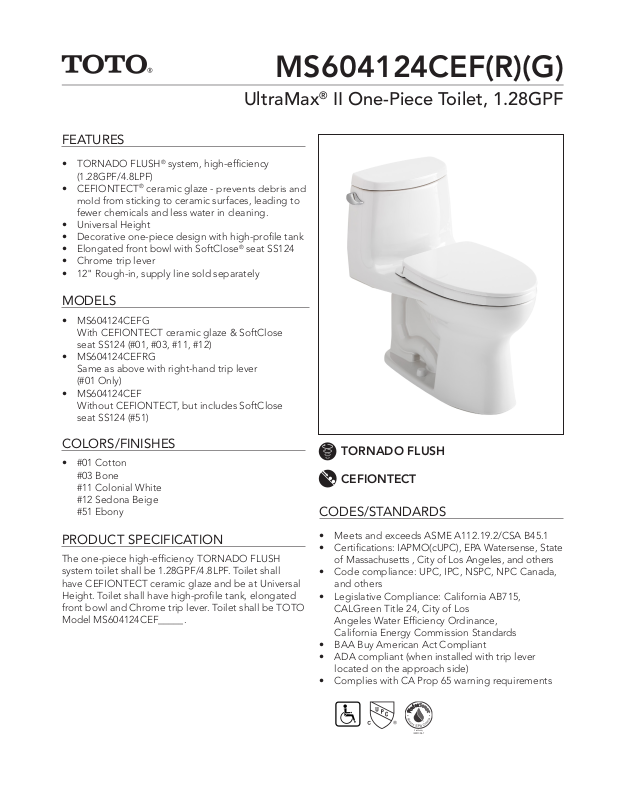

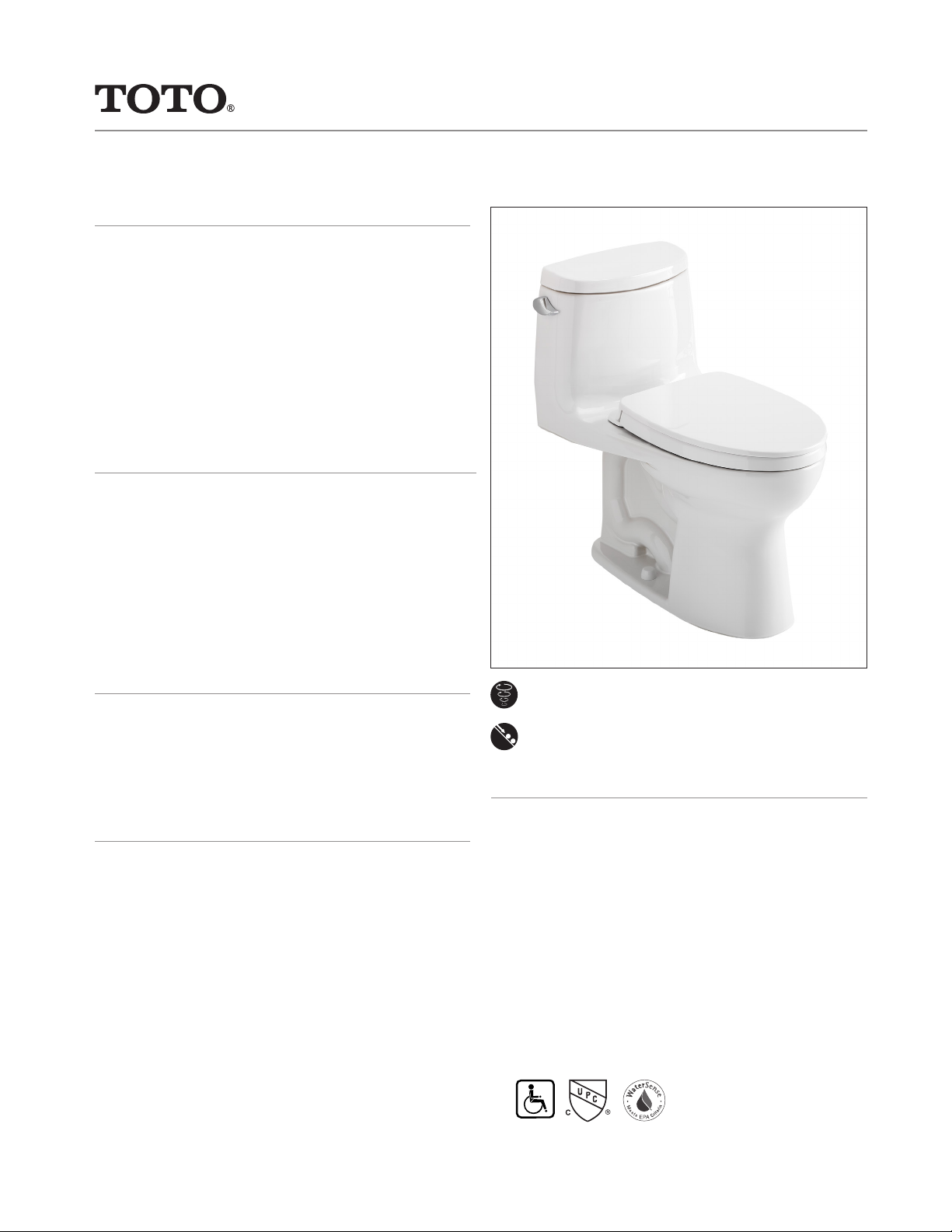

Page 1
MS604124CEF(R)(G)
IAPMO R&T
UltraMax® II One-Piece Toilet, 1.28GPF
FEATURES
• TORNADO FLUSH® system, high-efficiency
(1.28GPF/4.8LPF)
• CEFIONTECT® ceramic glaze -
mold
from sticking to ceramic surfaces, leading to
fewer chemicals and less water in cleaning.
• Universal Height
• Decorative one-piece design with high-profile tank
• Elongated front bowl with SoftClose® seat SS124
• Chrome trip lever
• 12" Rough-in, supply line sold separately
MODELS
• MS604124CEFG
With CEFIONTECT ceramic glaze & SoftClose
seat SS124 (#01, #03, #11, #12)
• MS604124CEFRG
Same as above with right-hand trip lever
(#01 Only)
• MS604124CEF
Without CEFIONTECT, but includes SoftClose
seat SS124 (#51)
prevents debris and
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
PRODUCT SPECIFICATION
The one-piece high-efficiency TORNADO FLUSH
system toilet shall be 1.28GPF/4.8LPF. Toilet shall
have CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall have high-profile tank, elongated
front bowl and Chrome trip lever. Toilet shall be TOTO
Model MS604124CEF_____.
TORNADO FLUSH
CEFIONTECT
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
CALGreen Title 24, City of Los
Angeles Water Efficiency Ordinance,
California Energy Commission Standards
• BAA Buy American Act Compliant
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Certified by

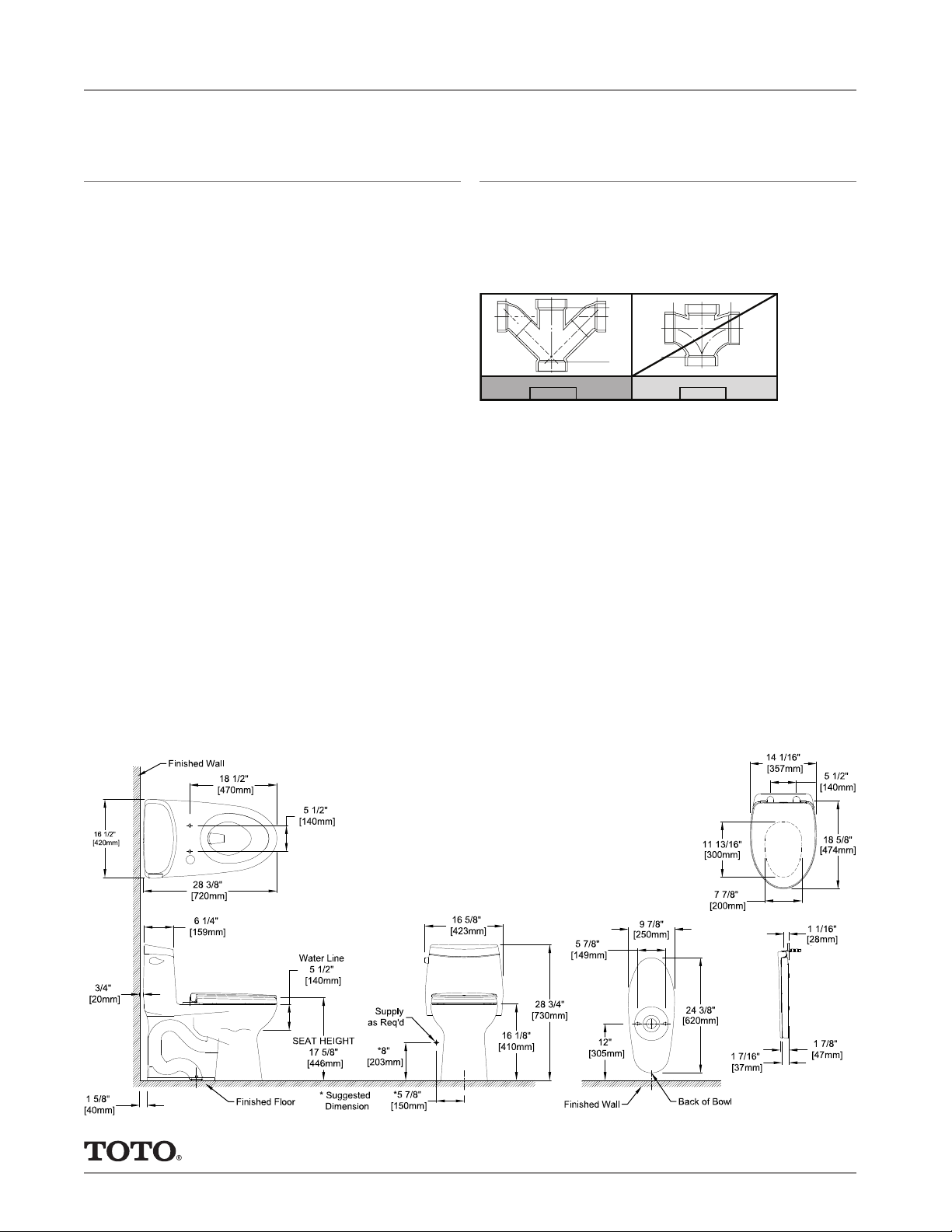

Page 2
MS604124CEF(R)(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
UltraMax® II One-Piece Toilet, 1.28GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System TORNADO FLUSH
• Min. Water Pressure 8 psi (static)
• Water Surface 7-1/8" x 9-1/8"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 99 lbs.
• Shipping Dimensions 32"L x 20"W x
17-3/4"H1 x 28-3/4"H
®
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double
sanitary tee-wye only, in vertical waste stacks, in accordance
with the stipulations noted in the majority of nationally
recognized plumbing codes.
Install this product according to the installation guide.
To maintain adequate wall gap between the back of the tank
and wall, mount the floor flange at a nominal 12” rough-in
distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4” ID drainline with minimum 2% slope and
maximum linear runs of 60ft.
Will comply with ADA when installed per Section 604
Water Closetsand Toilet Compartments of the ADA 2010
Accessible Design Standard with seat height between 17” to
19”, trip lever on approach side and
flush actuation force of less than 5lbs.
Will comply with CSA B651 when installed per Clause 6.2.6
Toilets of the CSA 2012 Accessible Design Standard with
seat height between 17” to 19”, trip lever on approach side
and flush actuation force of less than 5lbs.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
SS-01799 v.01
