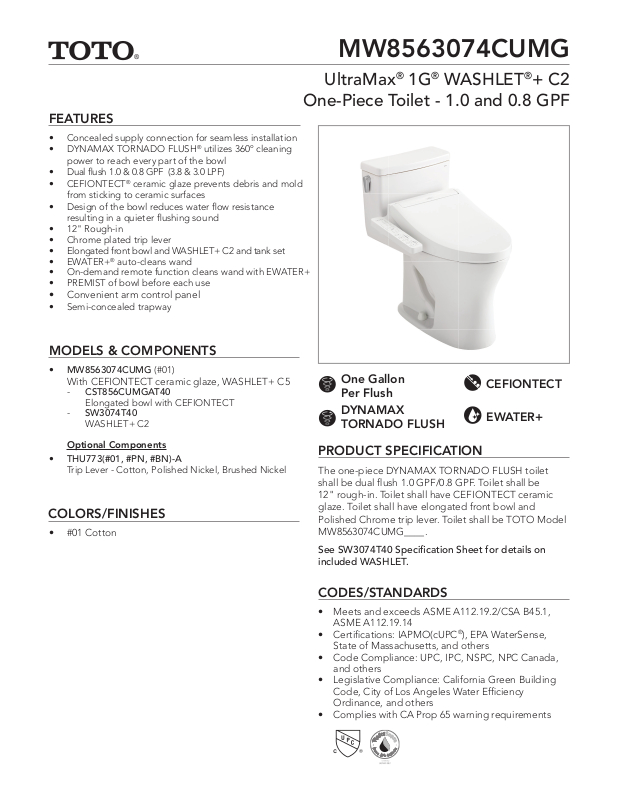

FEATURES
MW8563074CUMG
UltraMax® 1G® WASHLET®+ C2
One-Piece Toilet - 1.0 and 0.8 GPF
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH
power to reach every part of the bowl
• Dual fl ush 1.0 & 0.8 GPF (3.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
• Design of the bowl reduces water fl ow resistance
resulting in a quieter fl ushing sound
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C2 and tank set
• EWATER+
• On-demand remote function cleans wand with EWATER+
• PREMIST of bowl before each use
• Convenient arm control panel
• Semi-concealed trapway
®
auto-cleans wand
®
utilizes 360º cleaning
MODELS & COMPONENTS
• MW8563074CUMG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
- CST856CUMGAT40
Elongated bowl with CEFIONTECT
- SW3074T40
WASHLET+ C2
One Gallon
Per Flush
DYNAMAX
TORNADO FLUSH
CEFIONTECT
EWATER+
Optional Components
• THU773(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
The one-piece DYNAMAX TORNADO FLUSH toilet
shall be dual fl ush 1.0 GPF/0.8 GPF. Toilet shall be
12" rough-in. Toilet shall have CEFIONTECT ceramic
glaze. Toilet shall have elongated front bowl and
Polished Chrome trip lever. Toilet shall be TOTO Model
MW8563074CUMG____.
See SW3074T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Effi ciency
Ordinance, and others
• Complies with CA Prop 65 warning requirements

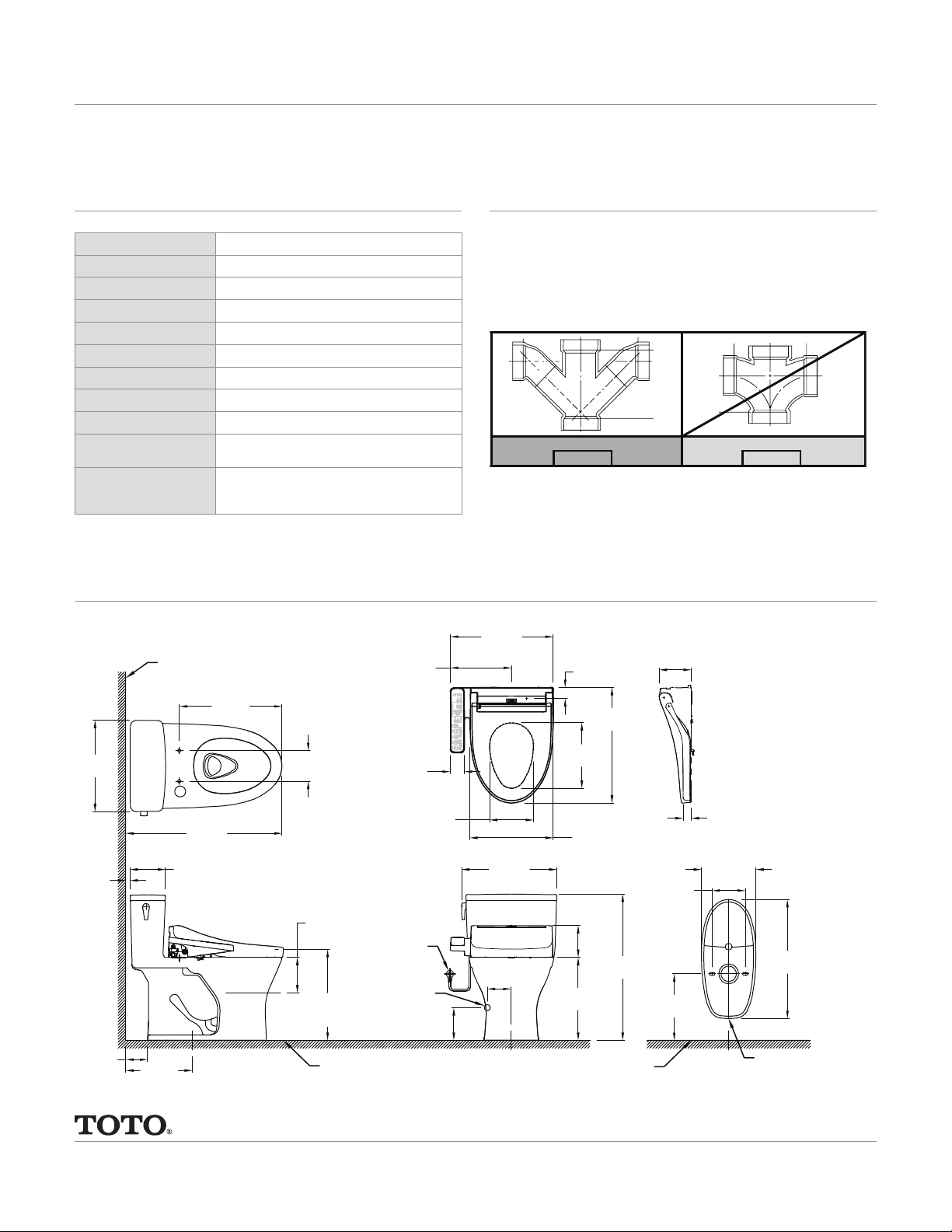

Page 2
MW8563074CUMG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
[546mm]
MW8563074CEMG
MW8563074CSMG
MW8563074CUMG
UltraMax® 1G® WASHLET®+ C2
One-Piece Toilet - 1.0 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3074T40 Specication Sheet for details on included WASHLET.
1.0 & 0.8 GPF (3.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
®
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
105 lbs.
29-1/4"L x 19-1/4"W x 19-3/4"H1, 27"H2
DIMENSIONS
**GFCI outlet of 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
11 1/16"
[281mm]
18 1/2"
[471mm]
16 7/16"
[417mm]
5 1/2"
[140mm]
2 9/16"
[64mm]
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
18 9/16"
[472mm]
2"
[51mm]
11 13/16"
[300mm]
20 7/8"
[530mm]
5 13/16"
[147mm]
7 7/8"
[200mm]
Supply as
Req'd
*5 15/16"
[150mm]
* Suggested
Dimension
3/4"
[20mm]
3 15/16"
[100mm]
12"
[305mm]
28 3/16"
[716mm]
6 3/8"
[162mm]
Water Level
6 3/8"
[162mm]
Seat Height
16 7/16"
[418mm]
Finished Floor
**GFCI Outlet
12" from Floor
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
17 3/16"
[437mm]
*4 1/4"
[108mm]
15 1/16"
[383mm]
5 3/4"
[146mm]
14 15/16"
[380mm]
1 7/16"
[37mm]
26 7/16"
[671mm]
Finished Wall
6"
[152mm]
12"
[305mm]
9 7/8"
[251mm]
21 1/2"
Back of
Bowl
# SS-01889 v.01
