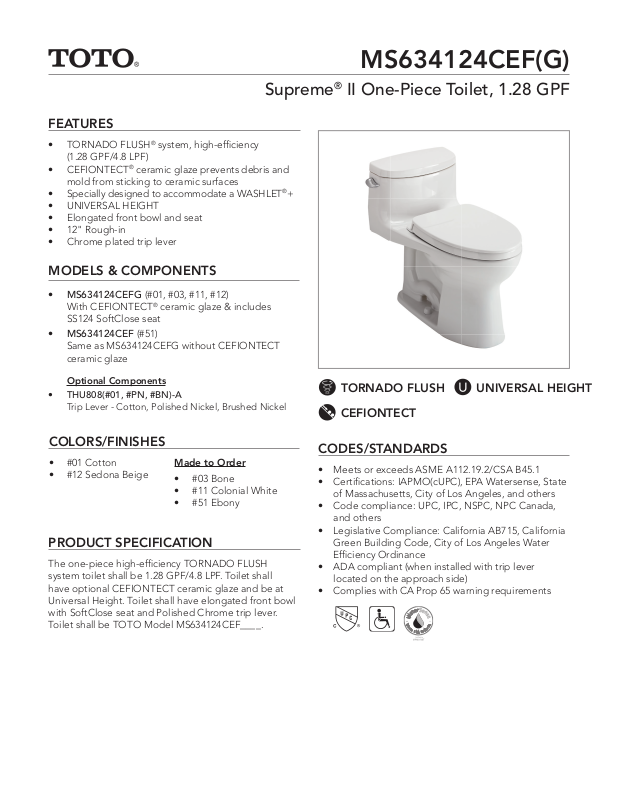

Supreme® II One-Piece Toilet, 1.28 GPF
FEATURES
• TORNADO FLUSH® system, high-effi ciency
(1.28 GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET®+
• UNIVERSAL HEIGHT
• Elongated front bowl and seat
• 12" Rough-in
• Chrome plated trip lever
MODELS & COMPONENTS
• MS634124CEFG (#01, #03, #11, #12)
With CEFIONTECT® ceramic glaze & includes
SS124 SoftClose seat
• MS634124CEF (#51)
Same as MS634124CEFG without CEFIONTECT
ceramic glaze
MS634124CEF(G)
Optional Components
• THU808(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
Made to Order
• #03 Bone
• #11 Colonial White
• #51 Ebony
PRODUCT SPECIFICATION
The one-piece high-effi ciency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall
have optional CEFIONTECT ceramic glaze and be at
Universal Height. Toilet shall have elongated front bowl
with SoftClose seat and Polished Chrome trip lever.
Toilet shall be TOTO Model MS634124CEF____.
TORNADO FLUSH
UNIVERSAL HEIGHT
CEFIONTECT
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MS634124CEF(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH
Min. Water Pressure 8 psi (Static)
Water Surface 6-7/8" x 9-3/4"
Trap Diameter 2-1/8"
Rough-in 12"
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 104 lbs
Shipping
Dimensions
32"L x 20"W x 17-3/4"H
®
1
x 28-3/4"H
Supreme
®
II One-Piece Toilet, 1.28 GPF
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
2
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
DIMENSIONS
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01824 v.01
