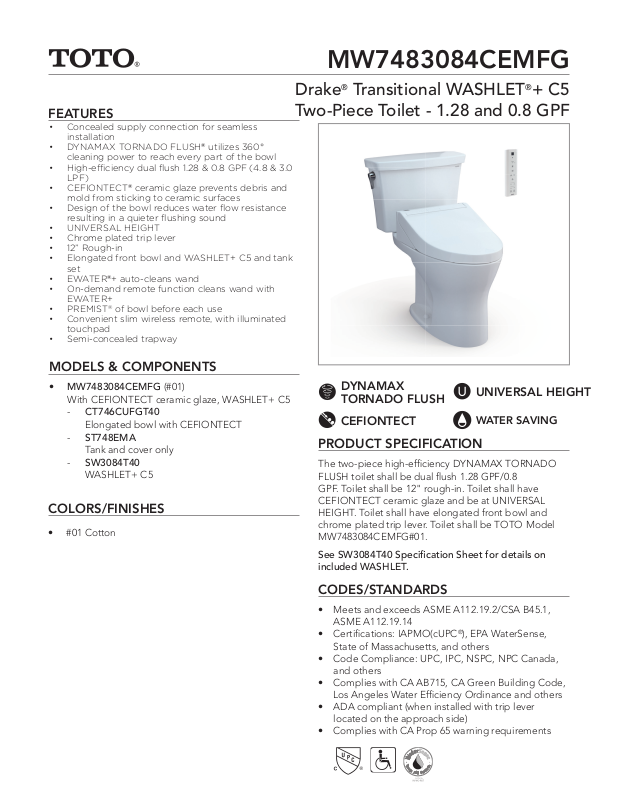

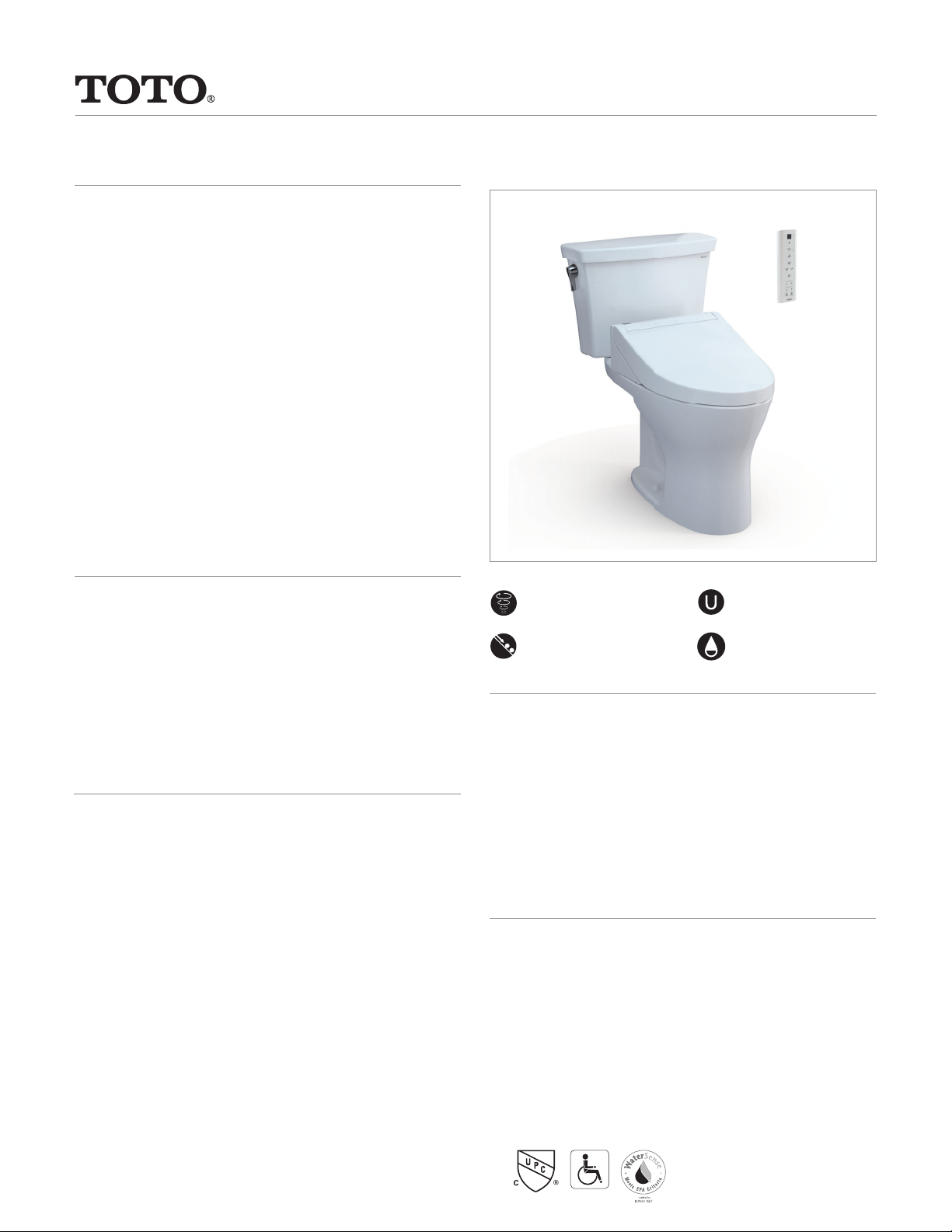

Page 1
MW7483084CEMFG
Drake® Transitional WASHLET®+ C5
FEATURES
• Concealed supply connection for seamless
installation
• DYNAMAX TORNADO FLUSH
cleaning power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF (4.8 & 3.0
LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• UNIVERSAL HEIGHT
• Chrome plated trip lever
• 12” Rough-in
• Elongated front bowl and WASHLET+ C5 and tank
set
• EWATER
• On-demand remote function cleans wand with
EWATER+
• PREMIST
• Convenient slim wireless remote, with illuminated
touchpad
• Semi-concealed trapway
®
ceramic glaze prevents debris and
®
+ auto-cleans wand
®
of bowl before each use
®
utilizes 360°
MODELS & COMPONENTS
• MW7483084CEMFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
- CT746CUFGT40
Elongated bowl with CEFIONTECT
- ST748EMA
Tank and cover only
- SW3084T40
WASHLET+ C5
COLORS/FINISHES
• #01 Cotton
Two-Piece Toilet - 1.28 and 0.8 GPF
DYNAMAX
TORNADO FLUSH
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-effi ciency DYNAMAX TORNADO
FLUSH toilet shall be dual fl ush 1.28 GPF/0.8
GPF. Toilet shall be 12" rough-in. Toilet shall have
CEFIONTECT ceramic glaze and be at UNIVERSAL
HEIGHT. Toilet shall have elongated front bowl and
chrome plated trip lever. Toilet shall be TOTO Model
MW7483084CEMFG#01.
UNIVERSAL HEIGHT
WATER SAVING
See SW3084T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA AB715, CA Green Building Code,
Los Angeles Water Effi ciency Ordinance and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements

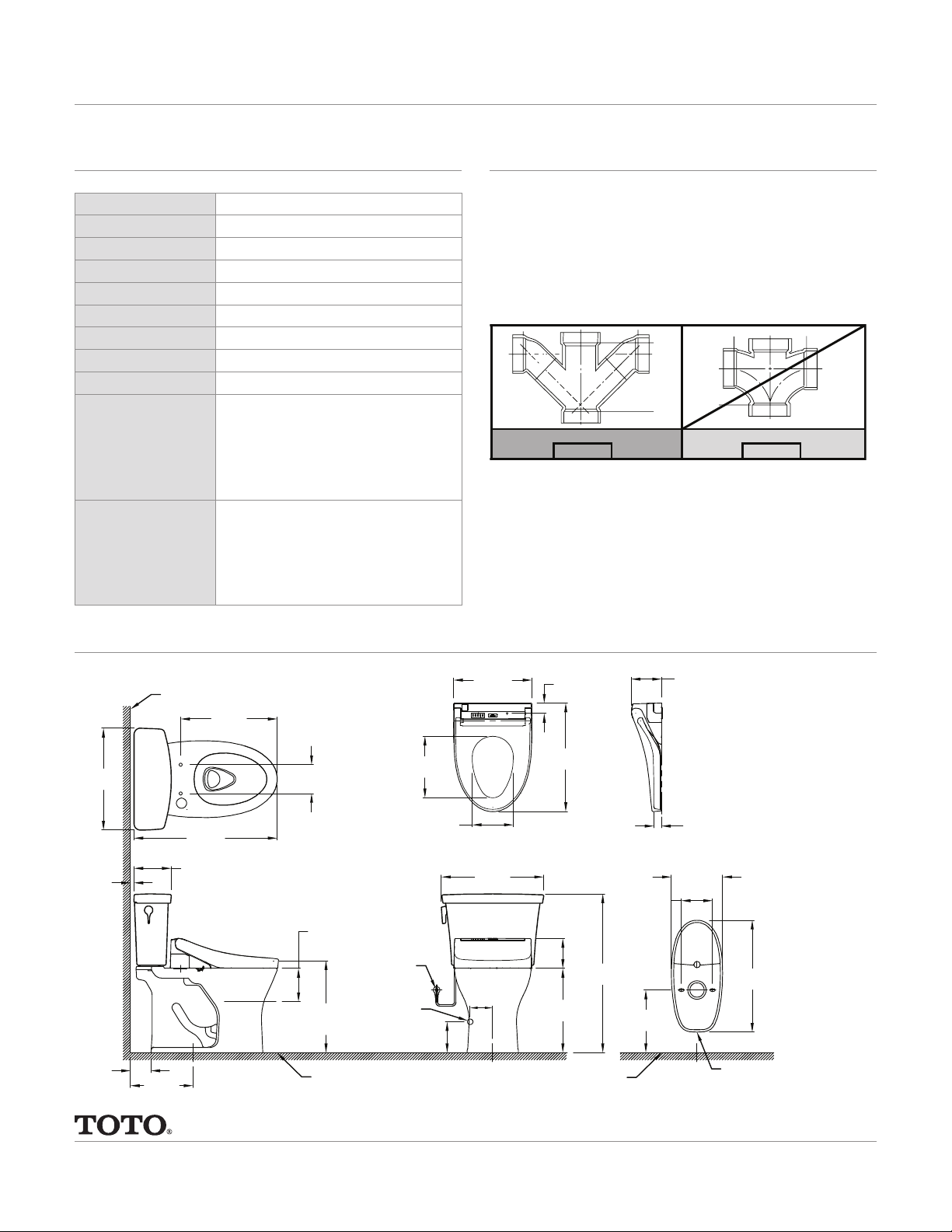

Page 2
MW7483084CEMFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
[546mm]
MW7463084CEMFG
Drake® Transitional WASHLET®+ C5 Two-Piece Toilet - 1.28 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3084T40 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
®
8 psi (Static)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUFGT40
66 lbs.
ST748EMA
33.1 lbs.
SW3084T40
16.5 lbs.
CT746CUFGT40
28-1/4"L x 17-1/4"W1 x 10-3/4"W2 x 17-1/4"H
ST748EMA
19-7/8" L x 9-3/8" W x 15-5/8" H
SW3084T40
24-3/8"L x 17-3/8"W x 9-1/8"H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
DIMENSIONS
**GFCI outlet of 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
19 9/16"
[497mm]
27 9/16"
[699mm]
7 3/16"
12"
[305mm]
[182mm]
11/16"
[17mm]
3 15/16"
[100mm]
18 9/16"
[471mm]
11 13/16"
Supply as
Req'd
*5 15/16"
[150mm]
[300mm]
7 7/8"
[200mm]
*4 1/4"
[108mm]
* Suggested
Dimension
5 1/2"
[140mm]
Water Level
6 3/8"
[162mm]
Seat Height
17 5/8"
[448mm]
Finished Floor
**GFCI Outlet
12" from Floor
15 1/16"
[382mm]
19 5/8"
[499mm]
2"
[51mm]
20 13/16"
[529mm]
5 3/4"
[146mm]
16 1/8"
[410mm]
Finished Wall
30 1/2"
[774mm]
6"
[152mm]
12"
[305mm]
5 13/16"
[147mm]
1 7/16"
[37mm]
9 7/8"
[251mm]
21 1/2"
Back of
Bowl
Fixture Dimensions shown are nominal. These dimensions and specications are subject to change without notice.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01874 v.01
