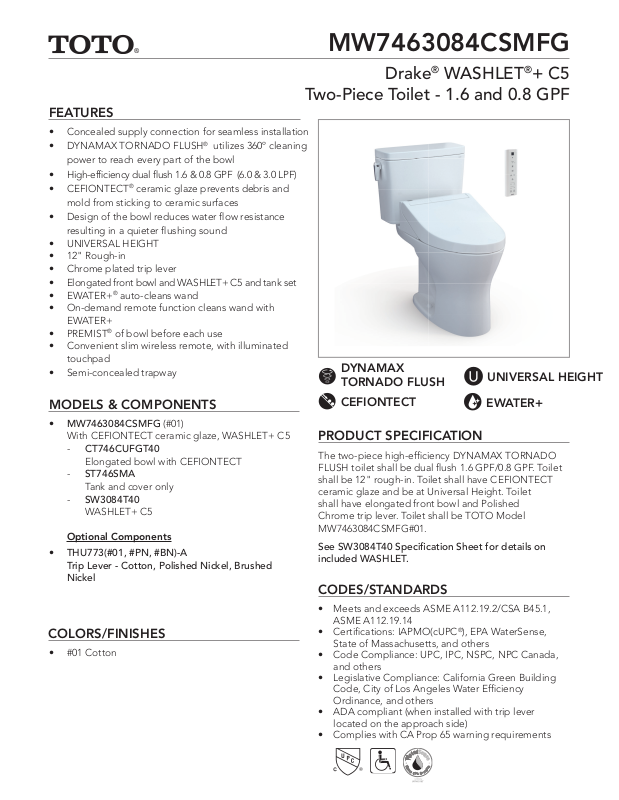

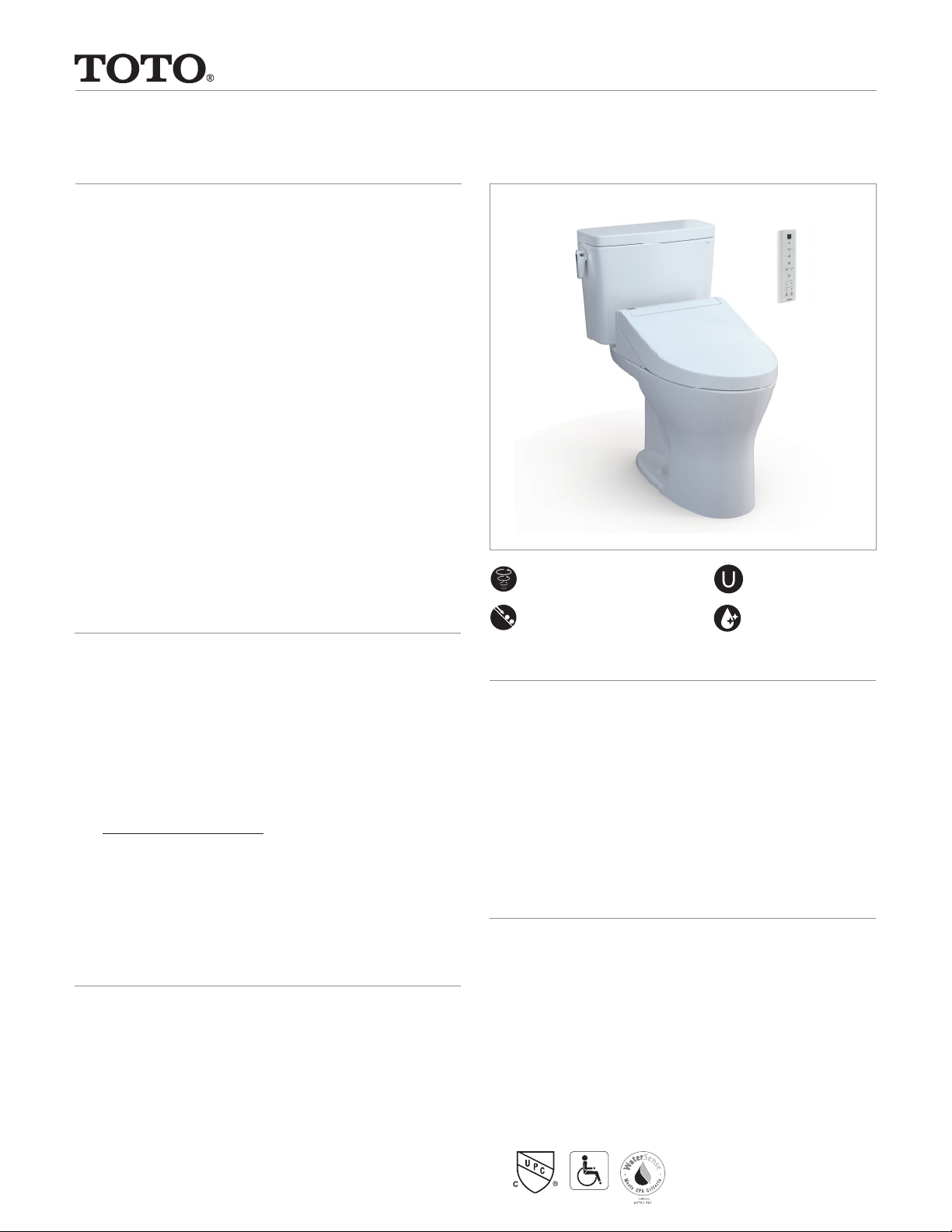

FEATURES
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• High-effi ciency dual fl ush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Design of the bowl reduces water fl ow resistance
resulting in a quieter fl ushing sound
• UNIVERSAL HEIGHT
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C5 and tank set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient slim wireless remote, with illuminated
touchpad
• Semi-concealed trapway
®
auto-cleans wand
MW7463084CSMFG
Drake® WASHLET®+ C5
Two-Piece Toilet - 1.6 and 0.8 GPF
DYNAMAX
TORNADO FLUSH
UNIVERSAL HEIGHT
MODELS & COMPONENTS
• MW7463084CSMFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
- CT746CUFGT40
Elongated bowl with CEFIONTECT
- ST746SMA
Tank and cover only
- SW3084T40
WASHLET+ C5
Optional Components
• THU773(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed
Nickel
COLORS/FINISHES
• #01 Cotton
CEFIONTECT
EWATER+
PRODUCT SPECIFICATION
The two-piece high-effi ciency DYNAMAX TORNADO
FLUSH toilet shall be dual fl ush 1.6 GPF/0.8 GPF. Toilet
shall be 12" rough-in. Toilet shall have CEFIONTECT
ceramic glaze and be at Universal Height. Toilet
shall have elongated front bowl and Polished
Chrome trip lever. Toilet shall be TOTO Model
MW7463084CSMFG#01.
See SW3084T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Effi ciency
Ordinance, and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW7463084CSMFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
[546mm]
MW7463084CEMFG
MW7463084CSMFG
MW7463084CUMFG
Drake® WASHLET®+ C5
Two-Piece Toilet - 1.6 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3084T40 Specication Sheet for details on included WASHLET.
1.6 & 0.8 GPF (6.0 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUFGT40
66 lbs.
ST746SMA
35 lbs.
CT746CUFGT40
18-3/4" L x 10-1/2" W x 18-1/8"H
ST746SMA
18-3/4" L x 8-3/8" W x 16"H
®

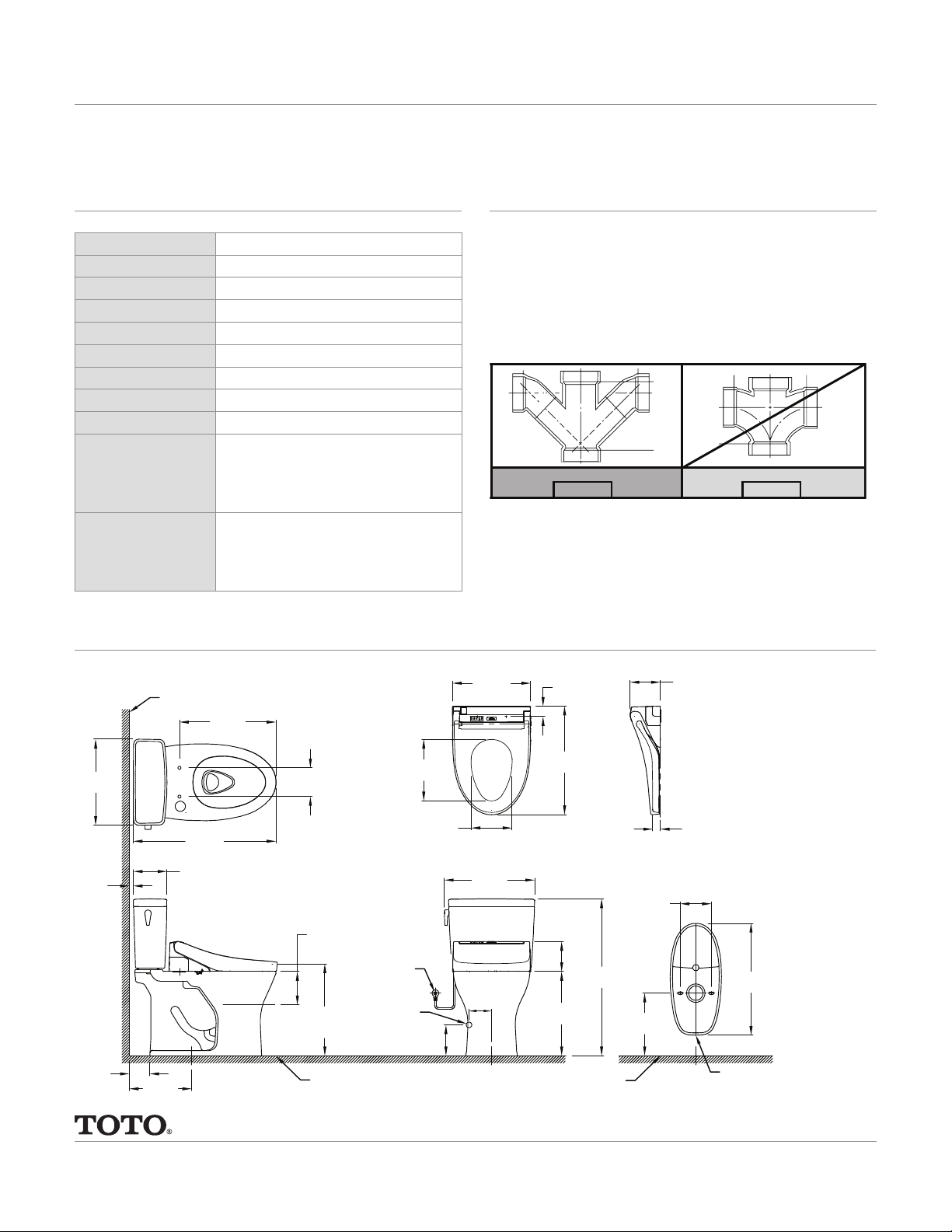

DIMENSIONS
**GFCI outlet of 120V, 10amps.
16 9/16"
[421mm]
Washlet power cord is 4' long with 3 prongs.
Finished Wall
18 9/16"
[471mm]
5 1/2"
[140mm]
11 13/16"
[300mm]
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
15 1/16"
[382mm]
2"
[51mm]
20 13/16"
[529mm]
5 13/16"
[147mm]
7 7/8"
Supply as
Req'd
*5 15/16"
[150mm]
[200mm]
[441mm]
*4 1/4"
[108mm]
* Suggested
Dimension
3/4"
[20mm]
3 15/16"
[100mm]
12"
[305mm]
27 7/16"
[697mm]
6 1/2"
[164mm]
Water Level
6 3/8"
[162mm]
Seat Height
17 5/8"
[448mm]
Finished Floor
**GFCI Outlet
12" from Floor
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
17 3/8"
5 3/4"
[146mm]
16 1/8"
[410mm]
Finished Wall
30 1/8"
[766mm]
6"
[152mm]
12"
[305mm]
1 7/16"
[37mm]
21 1/2"
Back of
Bowl
# SS-01862 v.01
