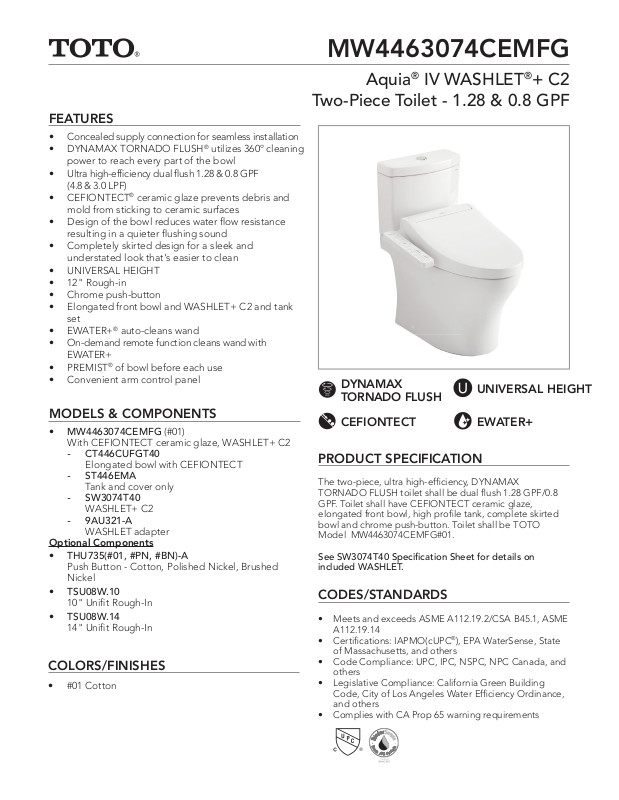

Page 1
FEATURES
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Ultra high-effi ciency dual fl ush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Design of the bowl reduces water fl ow resistance
resulting in a quieter fl ushing sound
• Completely skirted design for a sleek and
understated look that's easier to clean
• UNIVERSAL HEIGHT
• 12" Rough-in
• Chrome push-button
• Elongated front bowl and WASHLET+ C2 and tank
set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient arm control panel
®
auto-cleans wand
MW4463074CEMFG
Aquia® IV WASHLET®+ C2
Two-Piece Toilet - 1.28 & 0.8 GPF
DYNAMAX
TORNADO FLUSH
UNIVERSAL HEIGHT
MODELS & COMPONENTS
• MW4463074CEMFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C2
- CT446CUFGT40
Elongated bowl with CEFIONTECT
- ST446EMA
Tank and cover only
- SW3074T40
WASHLET+ C2
- 9AU321-A
WASHLET adapter
Optional Components
• THU735(#01, #PN, #BN)-A
Push Button - Cotton, Polished Nickel, Brushed
Nickel
• TSU08W.10
10" Unifi t Rough-In
• TSU08W.14
14" Unifi t Rough-In
COLORS/FINISHES
• #01 Cotton
CEFIONTECT
EWATER+
PRODUCT SPECIFICATION
The two-piece, ultra high-effi ciency, DYNAMAX
TORNADO FLUSH toilet shall be dual fl ush 1.28 GPF/0.8
GPF. Toilet shall have CEFIONTECT ceramic glaze,
elongated front bowl, high profi le tank, complete skirted
bowl and chrome push-button. Toilet shall be TOTO
Model MW4463074CEMFG#01.
See SW3074T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME
A112.19.14
• Certifi cations: IAPMO(cUPC
of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada, and
others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Effi ciency Ordinance,
and others
• Complies with CA Prop 65 warning requirements
®
), EPA WaterSense, State
Page 2
MW4463074CEMFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aquia® IV WASHLET®+ C2
Two-Piece Toilet, 1.28 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3074T40 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
CT446CUFGT40
85 lbs
ST446EMA
29 lbs
CT446CUFGT40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST446EMA
17-1/4"L x 7-7/8"W x 17-1/2"H
®
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4" ID drainline with minimum 2% slope
and maximum linear runs of 60ft.
DIMENSIONS
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01847 v.01
