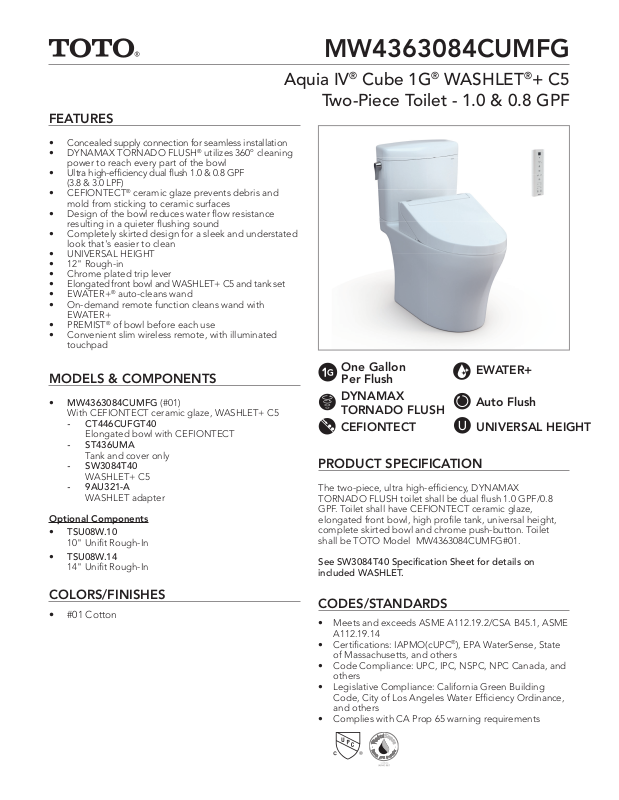

FEATURES
MW4363084CUMFG

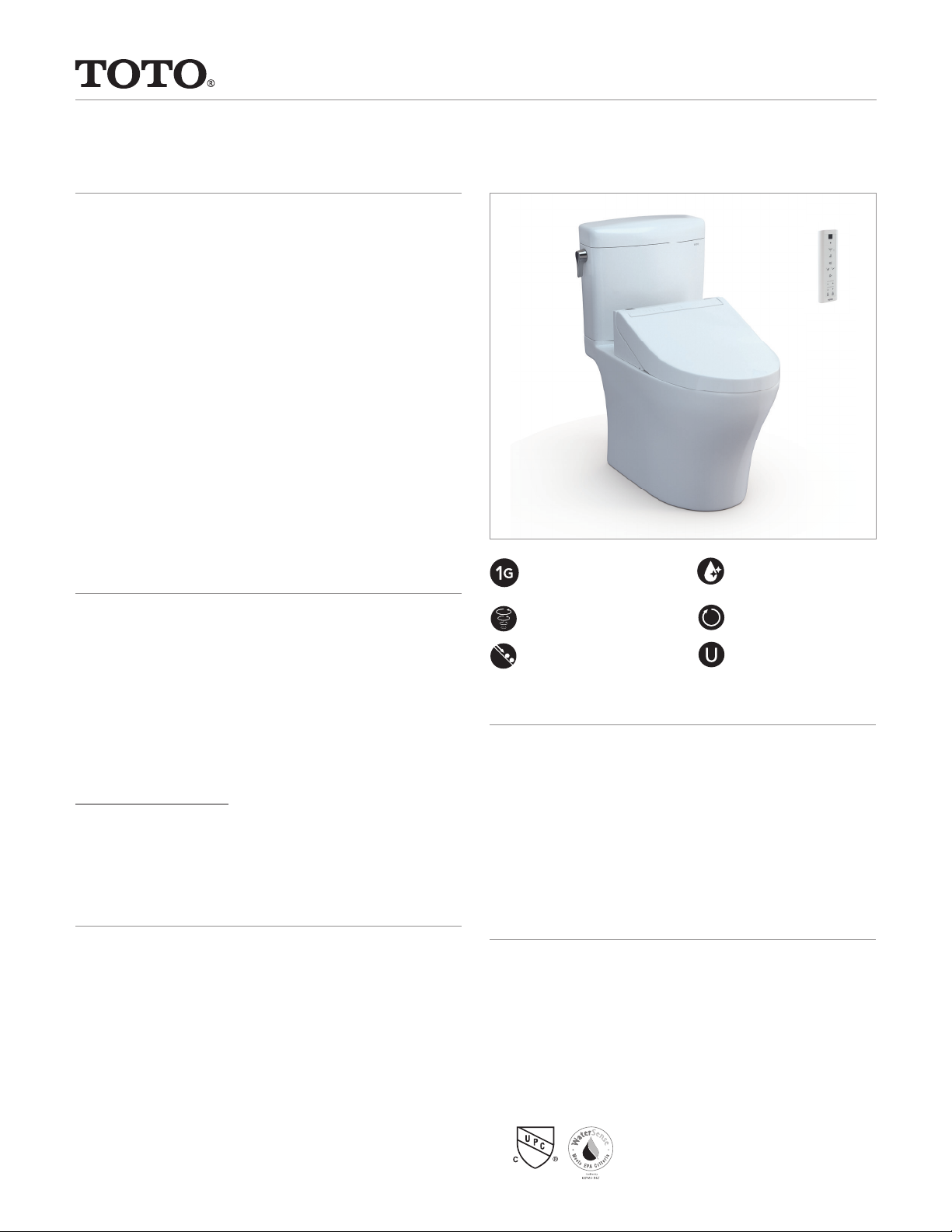

Aquia IV® Cube 1G® WASHLET®+ C5
Two-Piece Toilet - 1.0 & 0.8 GPF
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH
power to reach every part of the bowl
• Ultra high-effi ciency dual fl ush 1.0 & 0.8 GPF
(3.8 & 3.0 LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Design of the bowl reduces water fl ow resistance
resulting in a quieter fl ushing sound
• Completely skirted design for a sleek and understated
look that's easier to clean
• UNIVERSAL HEIGHT
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C5 and tank set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST
• Convenient slim wireless remote, with illuminated
touchpad
®
ceramic glaze prevents debris and
®
auto-cleans wand
®
of bowl before each use
®
utilizes 360º cleaning
MODELS & COMPONENTS
• MW4363084CUMFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
- CT446CUFGT40
Elongated bowl with CEFIONTECT
- ST436UMA
Tank and cover only
- SW3084T40
WASHLET+ C5
- 9AU321-A
WASHLET adapter
Optional Components
• TSU08W.10
10" Unifi t Rough-In
• TSU08W.14
14" Unifi t Rough-In
One Gallon
EWATER+
Per Flush
DYNAMAX
TORNADO FLUSH
CEFIONTECT
Auto Flush
UNIVERSAL HEIGHT
PRODUCT SPECIFICATION
The two-piece, ultra high-effi ciency, DYNAMAX
TORNADO FLUSH toilet shall be dual fl ush 1.0 GPF/0.8
GPF. Toilet shall have CEFIONTECT ceramic glaze,
elongated front bowl, high profi le tank, universal height,
complete skirted bowl and chrome push-button. Toilet
shall be TOTO Model MW4363084CUMFG#01.
See SW3084T40 Specifi cation Sheet for details on
included WASHLET.
COLORS/FINISHES
• #01 Cotton
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME
A112.19.14
• Certifi cations: IAPMO(cUPC
of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada, and
others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Effi ciency Ordinance,
and others
• Complies with CA Prop 65 warning requirements
®
), EPA WaterSense, State
Page 2
MW4363084CUMFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
MW4363084CEMFG & MW4363084CUMFG
21 1/8"
[537mm]
Aquia IV® Cube 1G® WASHLET®+ C5
Two-Piece Toilet - 1.0 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3084T40 Specication Sheet for details on included WASHLET.
1.0 & 0.8 GPF (3.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
CT446CUFGT40
85 lbs
ST436UMA
29 lbs
CT446CUFGT40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST436UMA
17-1/4"L x 7-7/8"W x 17-1/2"H
®
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4" ID drainline with minimum 2% slope
and maximum linear runs of 60ft.

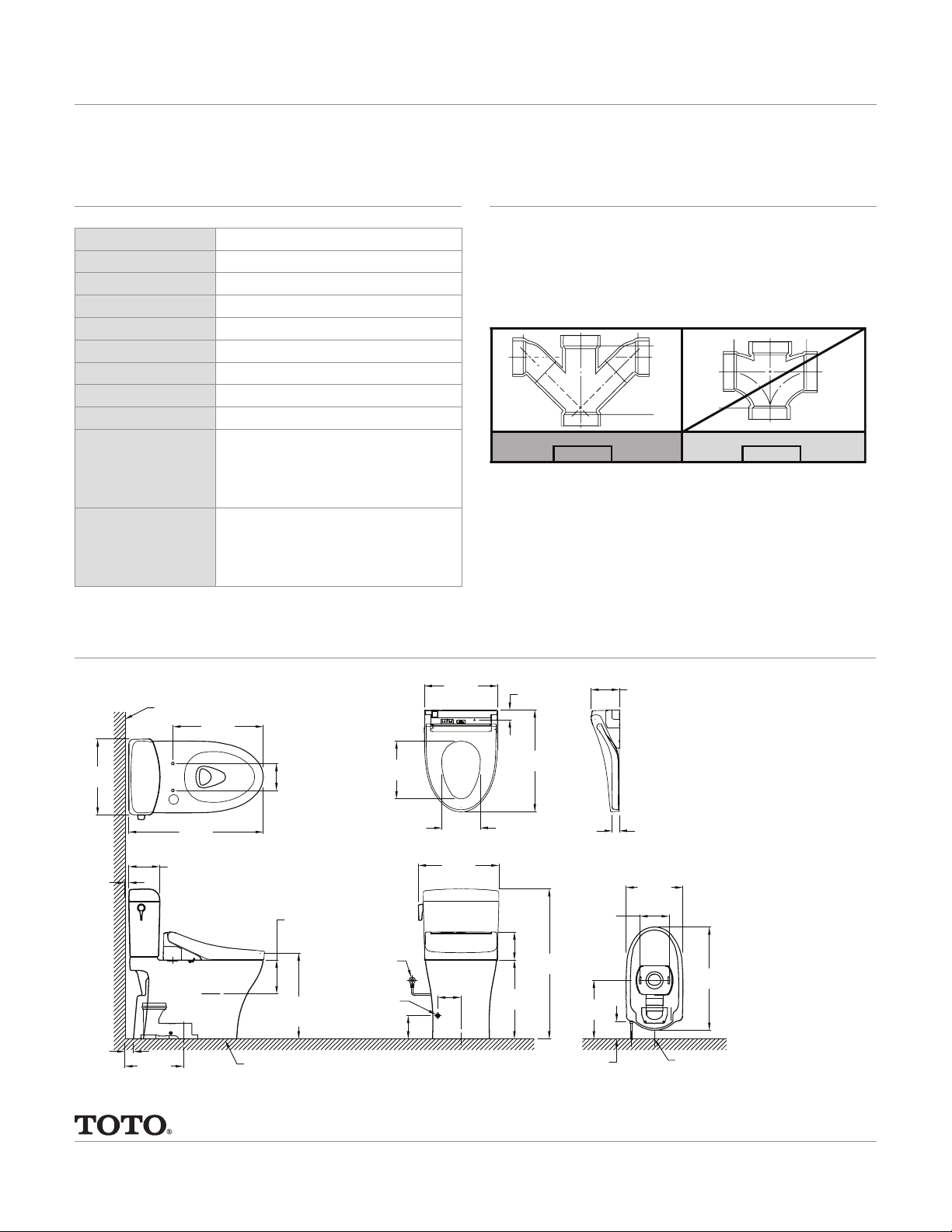

DIMENSIONS
**GFCI outlet of 120V, 10amps.
Washl et power c ord i s 4' long with 3 prongs.
Finished Wall
15 9/16"
[395mm]
13/16"
[21mm]
1 3/4"
[45mm]
27 9/16"
[700mm]
6 3/8"
[161mm]
12"
[305mm]
18 1/2"
[470mm]
Finished
Floor
5 1/2"
[140mm]
6 7/8"
[175mm]
Seat Height
17 5/8"
[447mm]
11 13/16"
**GFCI Outl et
12" from Floor
Supply
as Req'd
*4 3/4"
[121mm]
[300mm]
15 1/16"
[382mm]
7 7/8"
[200mm]
16 1/2"
[419mm]
*4 3/4"
[121mm]
* Suggested
Dimension
2"
[51mm]
20 7/8"
[530mm]
5 3/4"
[147mm]
30 3/4"
[781mm]
16 1/8"
[410mm]
Max. protrusion
w/ shutoff valve
1 7/16"
[37mm]
[152mm]
[305mm]
3 9/16"
[90mm]
5 13/16"
[147mm]
11 5/8"
[296mm]
6"
12"
Finished
Wall
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
#SS-01914 v.01
