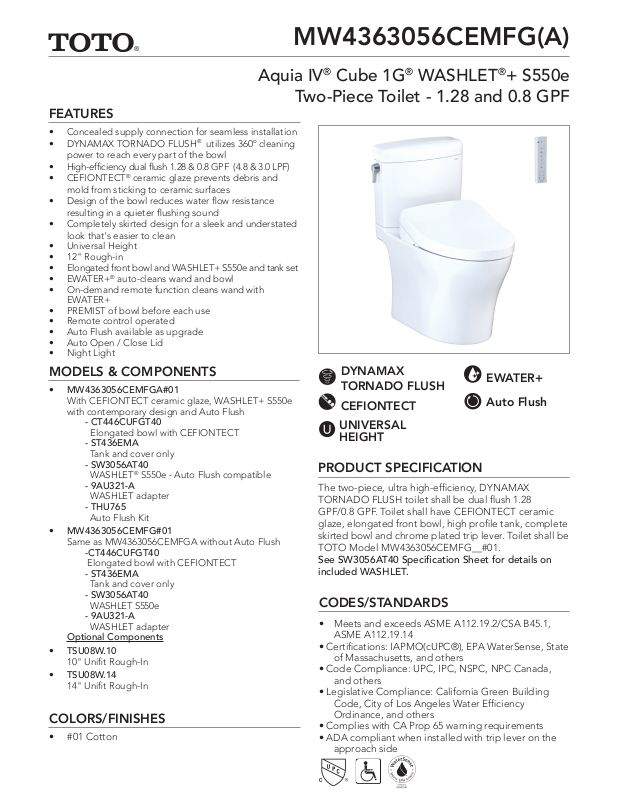

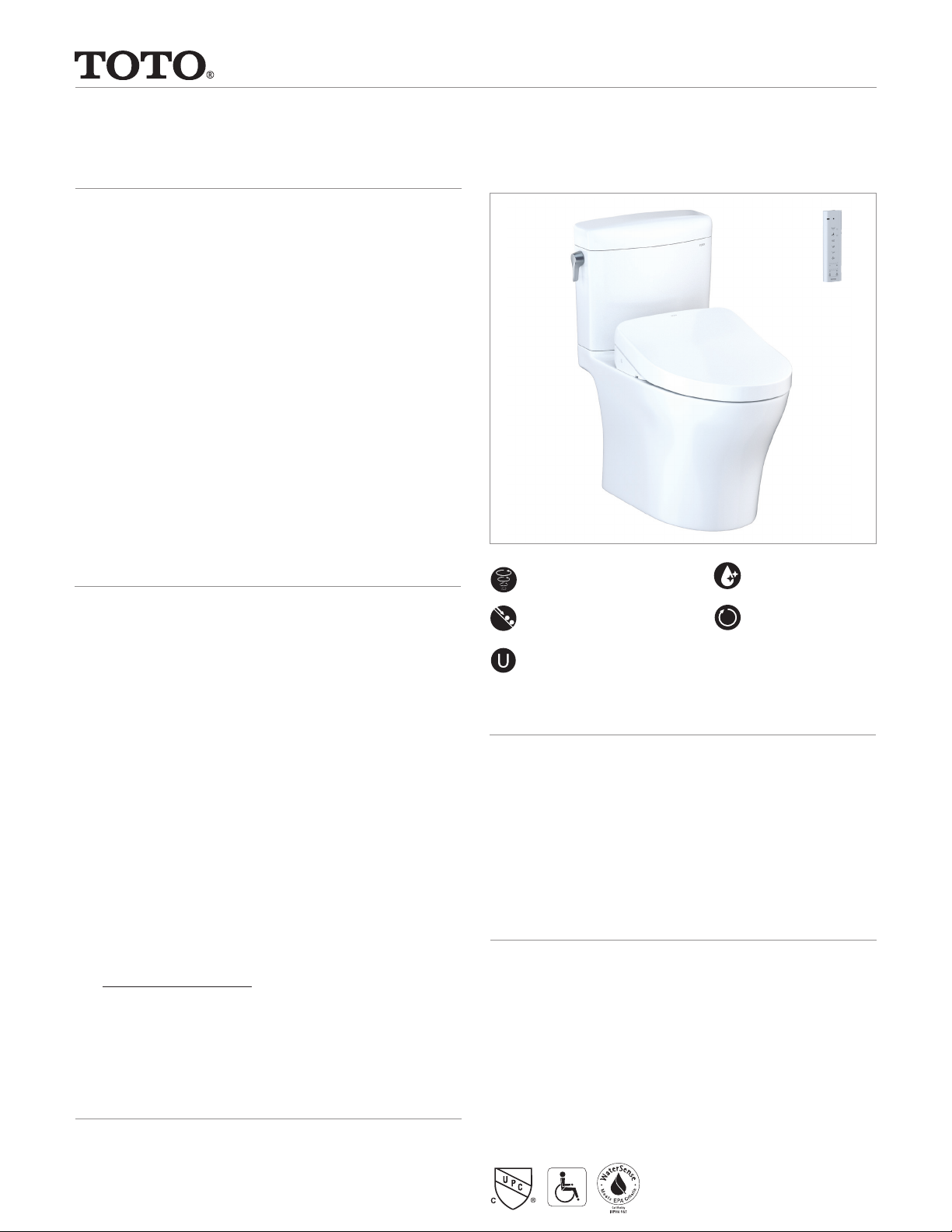

Page 1

Aquia IV® Cube 1G® WASHLET®+ S550e

FEATURES

• Concealed supply connection for seamless installation

• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning power to reach every part of the bowl

• High-efciency dual ush 1.28 & 0.8 GPF (4.8 & 3.0 LPF)

• CEFIONTECT® ceramic glaze prevents debris and mold from sticking to ceramic surfaces

• Design of the bowl reduces water ow resistance

resulting in a quieter ushing sound

• Completely skirted design for a sleek and understated look that's easier to clean

• Universal Height

• 12" Rough-in

• Elongated front bowl and WASHLET+ S550e and tank set

• EWATER+® auto-cleans wand and bowl

• On-demand remote function cleans wand with EWATER+

• PREMIST of bowl before each use

• Remote control operated

• Auto Flush available as upgrade

• Auto Open / Close Lid

• Night Light

MW4363056CEMFG(A)

Two-Piece Toilet - 1.28 and 0.8 GPF

MODELS & COMPONENTS

• MW4363056CEMFGA#01

With CEFIONTECT ceramic glaze, WASHLET+ S550e with contemporary design and Auto Flush

- CT446CUFGT40

Elongated bowl with CEFIONTECT

- ST436EMA

Tank and cover only

- SW3056AT40

WASHLET® S550e - Auto Flush compatible

- 9AU321-A

WASHLET adapter

- THU765

Auto Flush Kit

• MW4363056CEMFG#01

Same as MW4363056CEMFGA without Auto Flush

-CT446CUFGT40

Elongated bowl with CEFIONTECT

- ST436EMA

Tank and cover only

- SW3056AT40

WASHLET S550e

- 9AU321-A

WASHLET adapter

Optional Components

• TSU08W.10

10" Unit Rough-In

• TSU08W.14

14" Unit Rough-In

COLORS/FINISHES

• #01 Cotton

DYNAMAX TORNADO FLUSH

CEFIONTECT

EWATER+

Auto Flush

UNIVERSAL HEIGHT

PRODUCT SPECIFICATION

The two-piece, ultra high-efciency, DYNAMAX TORNADO FLUSH toilet shall be dual ush 1.28 GPF/0.8 GPF. Toilet shall have CEFIONTECT ceramic glaze, elongated front bowl, high prole tank, complete skirted bowl and chrome plated trip lever. Toilet shall be TOTO Model MW4363056CEMFG__#01.

See SW3056AT40 Specication Sheet for details on

included WASHLET.

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14

• Certications: IAPMO(cUPC®), EPA WaterSense, State

of Massachusetts, and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada,

and others

• Legislative Compliance: California Green Building Code, City of Los Angeles Water Efciency

Ordinance, and others

• Complies with CA Prop 65 warning requirements

• ADA compliant when installed with trip lever on the approach side

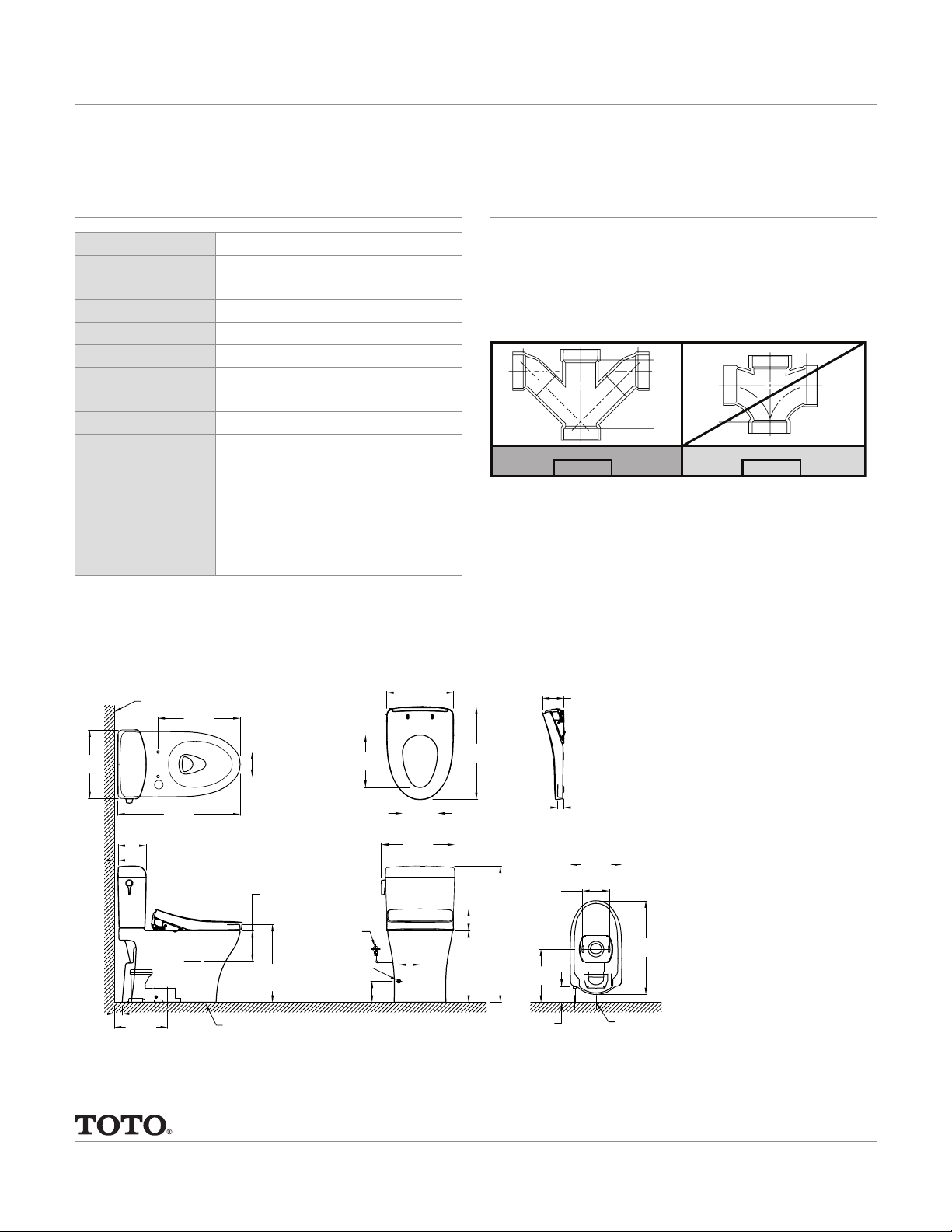

Page 2

MW4363056CEMFG(A)

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

MW4363046CEMFG & MW4363056CEMFG MW4363046CUMFG & MW4363056CUMFG

[537mm]

Aquia IV® Cube 1G® WASHLET®+ S550e

Two-Piece Toilet - 1.28 and 0.8 GPF

SPECIFICATIONS

Water Use

Flush System

Min. Water Pressure

Water Surface

Trap Diameter

Rough-in

Trap Seal

Warranty

Material

Shipping Weight

Shipping

Dimensions

See SW3056AT40 Specication Sheet for details on included WASHLET.

1.28 & 0.8 GPF (4.8 & 3.0 LPF)

DYNAMAX TORNADO FLUSH

8 psi (Flowing)

5-5/8" x 4-1/8"

2-1/2"

12" (10" and 14" options available)

2-1/8"

One Year Limited Warranty

Vitreous China

CT446CUFGT40

85 lbs

ST436EMA

29 lbs

CT446CUFGT40

30-3/4"L x 17-3/8"W x 20-1/2"H

ST436EMA

17-1/4"L x 7-1/8"W x 15-1/4"H

DIMENSIONS

INSTALLATION NOTES

Back-to-Back Toilet Installations:

TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the

majority of nationally recognized plumbing codes.

To maintain adequate wall gap between the back of the

tank and wall, mount the oor ange at a nominal 12” rough-in distance.

Ultra-low high efciency toilets require a system with

adequate supplemental ows from other water usage xtures and a 4" ID drainline with minimum 2% slope and maximum linear runs of 60ft.

**GFCI o utlet of 120V, 10amps. Washl et pow er cor d is 4 ' long with 3 prongs.

Finished Wall

27 9/16" [700mm]

6 3/8"

[161mm]

18 1/2"

[470mm]

15 9/16" [395mm]

13/16"

[21mm]

1 3/4"

[45mm]

12"

[305mm]

Finished Floor

5 1/2"

[140mm]

6 7/8"

[175mm]

Seat Height

17 5/8"

[447mm]

**GFCI Outl et

12" from Floor

Supply

as Req'd

*4 3/4"

[121mm]

11 13/16"

[300mm]

15 1/16" [383mm]

7 7/8"

[200mm]

16 1/2"

[419mm]

*4 3/4"

[121mm]

* Suggested Dimension

20 15/16"

[531mm]

4 15/16"

[125mm]

30 3/4"

[781mm]

16 1/8"

[410mm]

Max. protrusion w/ shutoff valve

1 7/16"

[37mm]

[152mm]

[305mm]

3 9/16"

[90mm]

4 13/16" [122mm]

11 5/8"

[296mm]

21 1/8"

12"

Finished Wall

These dimensions and specications are subject to change without notice

# SS-01700 v.01
