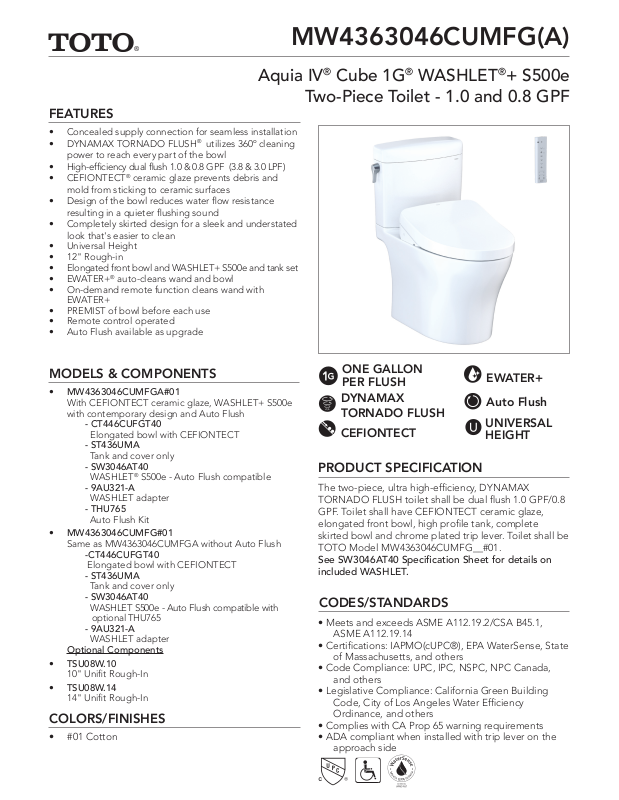

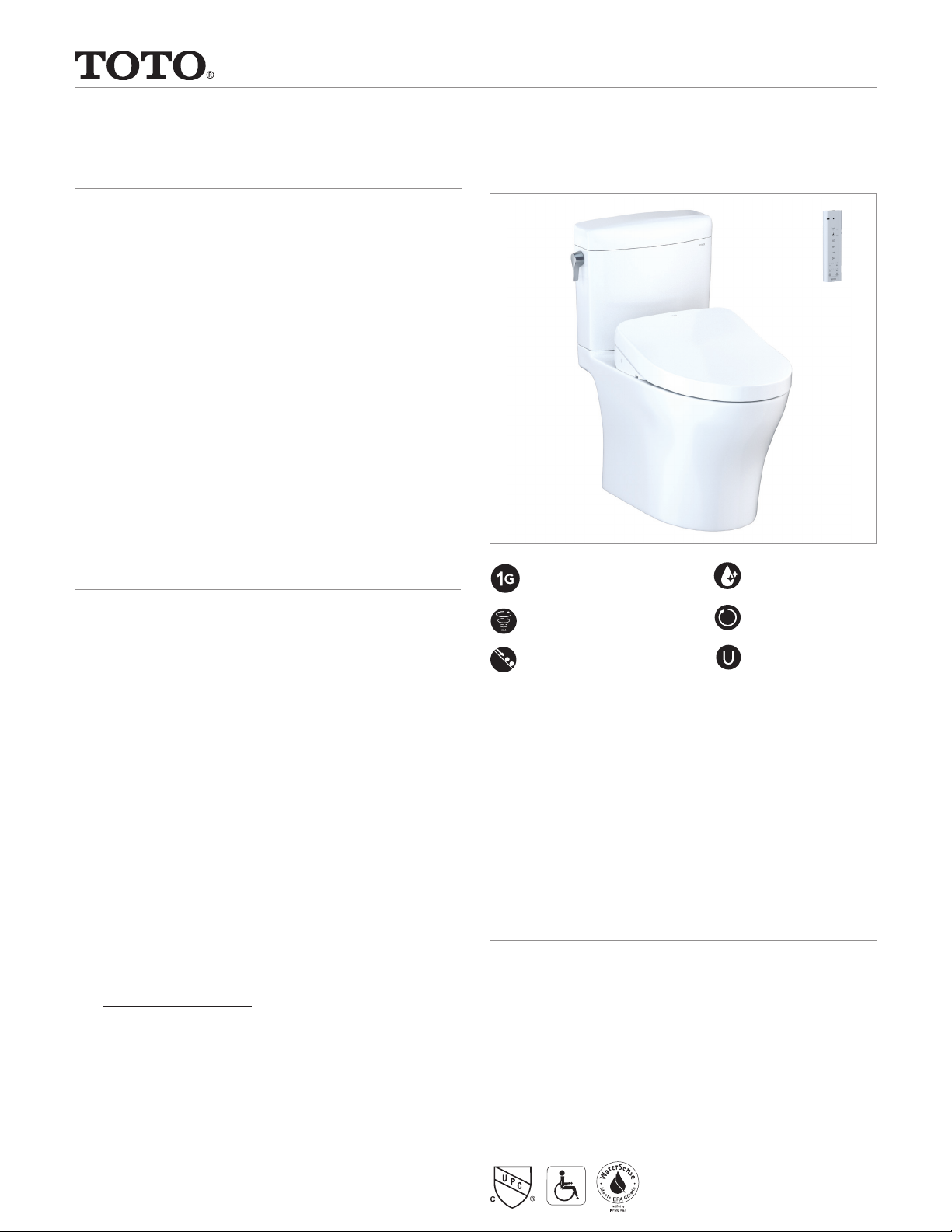

Page 1

MW4363046CUMFG(A)

Aquia IV® Cube 1G® WASHLET®+ S500e

FEATURES

• Concealed supply connection for seamless installation

• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning power to reach every part of the bowl

• High-efciency dual ush 1.0 & 0.8 GPF (3.8 & 3.0 LPF)

• CEFIONTECT® ceramic glaze prevents debris and mold from sticking to ceramic surfaces

• Design of the bowl reduces water ow resistance

resulting in a quieter ushing sound

• Completely skirted design for a sleek and understated look that's easier to clean

• Universal Height

• 12" Rough-in

• Elongated front bowl and WASHLET+ S500e and tank set

• EWATER+® auto-cleans wand and bowl

• On-demand remote function cleans wand with EWATER+

• PREMIST of bowl before each use

• Remote control operated

• Auto Flush available as upgrade

Two-Piece Toilet - 1.0 and 0.8 GPF

MODELS & COMPONENTS

• MW4363046CUMFGA#01

With CEFIONTECT ceramic glaze, WASHLET+ S500e with contemporary design and Auto Flush

- CT446CUFGT40

Elongated bowl with CEFIONTECT

- ST436UMA

Tank and cover only

- SW3046AT40

WASHLET® S500e - Auto Flush compatible

- 9AU321-A

WASHLET adapter

- THU765

Auto Flush Kit

• MW4363046CUMFG#01

Same as MW4363046CUMFGA without Auto Flush

-CT446CUFGT40

Elongated bowl with CEFIONTECT

- ST436UMA

Tank and cover only

- SW3046AT40

WASHLET S500e - Auto Flush compatible with optional THU765

- 9AU321-A

WASHLET adapter

Optional Components

• TSU08W.10

10" Unit Rough-In

• TSU08W.14

14" Unit Rough-In

COLORS/FINISHES

• #01 Cotton

ONE GALLON PER FLUSH

DYNAMAX

EWATER+

Auto Flush

TORNADO FLUSH

UNIVERSAL

CEFIONTECT

HEIGHT

PRODUCT SPECIFICATION

The two-piece, ultra high-efciency, DYNAMAX TORNADO FLUSH toilet shall be dual ush 1.0 GPF/0.8 GPF. Toilet shall have CEFIONTECT ceramic glaze, elongated front bowl, high prole tank, complete skirted bowl and chrome plated trip lever. Toilet shall be TOTO Model MW4363046CUMFG__#01.

See SW3046AT40 Specication Sheet for details on

included WASHLET.

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14

• Certications: IAPMO(cUPC®), EPA WaterSense, State

of Massachusetts, and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada,

and others

• Legislative Compliance: California Green Building Code, City of Los Angeles Water Efciency

Ordinance, and others

• Complies with CA Prop 65 warning requirements

• ADA compliant when installed with trip lever on the approach side

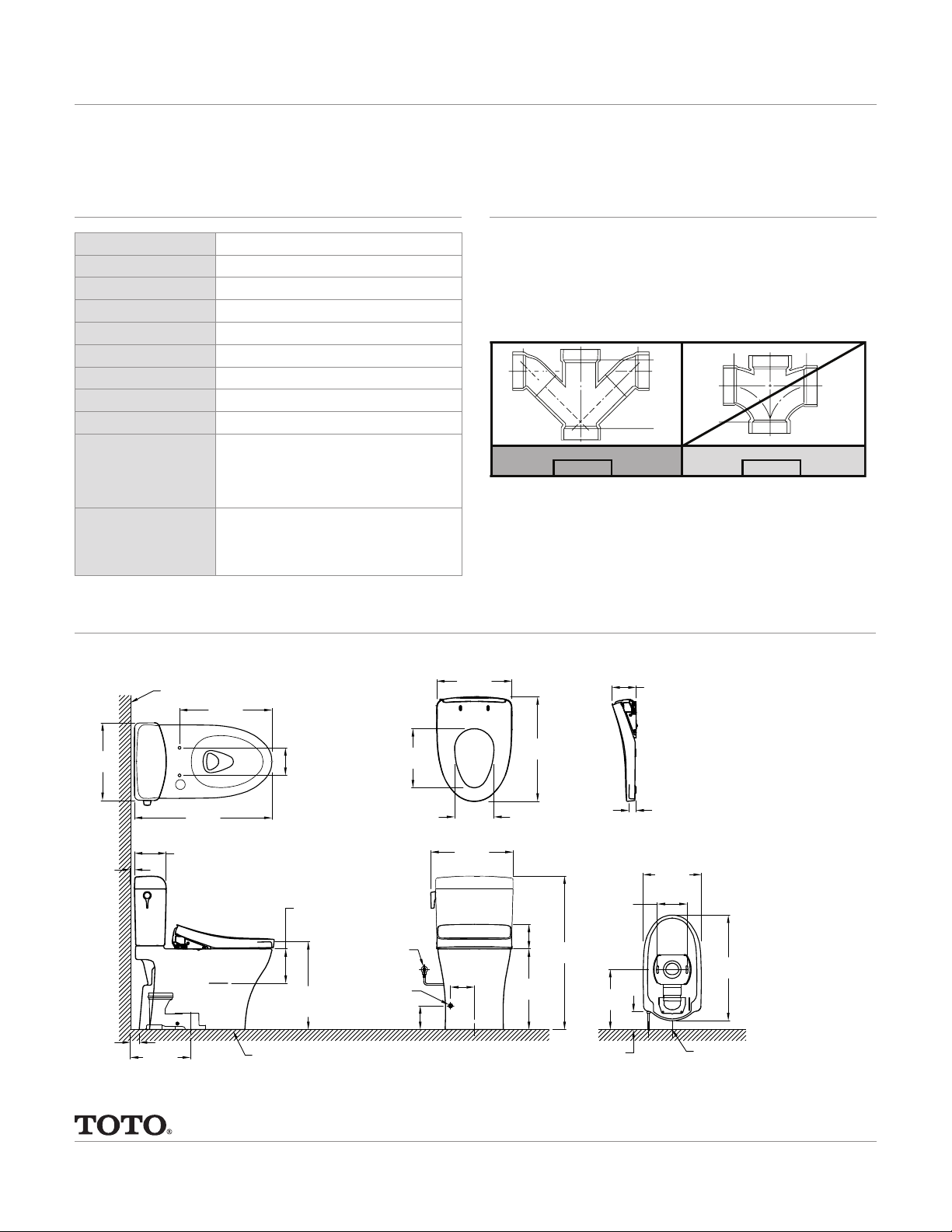

Page 2

MW4363046CUMFG(A)

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

MW4363046CEMFG & MW4363056CEMFG MW4363046CUMFG & MW4363056CUMFG

[537mm]

Aquia IV® Cube 1G® WASHLET®+ S500e

Two-Piece Toilet - 1.0 and 0.8 GPF

SPECIFICATIONS

Water Use

Flush System

Min. Water Pressure

Water Surface

Trap Diameter

Rough-in

Trap Seal

Warranty

Material

Shipping Weight

Shipping

Dimensions

See SW3046AT40 Specication Sheet for details on included WASHLET.

1.0 & 0.8 GPF (3.8 & 3.0 LPF)

DYNAMAX TORNADO FLUSH

8 psi (Flowing)

5-5/8" x 4-1/8"

2-1/2"

12" (10" and 14" options available)

2-1/8"

One Year Limited Warranty

Vitreous China

CT446CUFGT40

85 lbs

ST436UMA

29 lbs

CT446CUFGT40

30-3/4"L x 17-3/8"W x 20-1/2"H

ST436UMA

17-1/4"L x 7-1/8"W x 15-1/4"H

DIMENSIONS

**GFCI outlet of 120V, 10amps. Washl et power c ord i s 4' long with 3 prongs.

15 9/16"

[395mm]

Finished Wall

18 1/2"

[470mm]

5 1/2"

[140mm]

11 13/16"

[300mm]

INSTALLATION NOTES

Back-to-Back Toilet Installations:

TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the

majority of nationally recognized plumbing codes.

To maintain adequate wall gap between the back of the

tank and wall, mount the oor ange at a nominal 12” rough-in distance.

Ultra-low high efciency toilets require a system with

adequate supplemental ows from other water usage xtures and a 4" ID drainline with minimum 2% slope and maximum linear runs of 60ft.

15 1/16" [383mm]

20 15/16"

[531mm]

4 13/16" [122mm]

7 7/8"

[200mm]

16 1/2"

[419mm]

*4 3/4"

[121mm]

* Suggested Dimension

13/16"

[21mm]

1 3/4"

[45mm]

12"

[305mm]

27 9/16" [700mm]

6 3/8"

[161mm]

Finished Floor

6 7/8"

[175mm]

Seat Height

17 5/8"

[447mm]

**GFCI Outl et

12" from Floor

Supply

as Req'd

*4 3/4"

[121mm]

These dimensions and specications are subject to change without notice

4 15/16"

[125mm]

30 3/4"

[781mm]

16 1/8"

[410mm]

Max. protrusion w/ shutoff valve

1 7/16"

[37mm]

[152mm]

[305mm]

3 9/16"

[90mm]

11 5/8"

[296mm]

21 1/8"

12"

Finished Wall

# SS-01697 v.01
