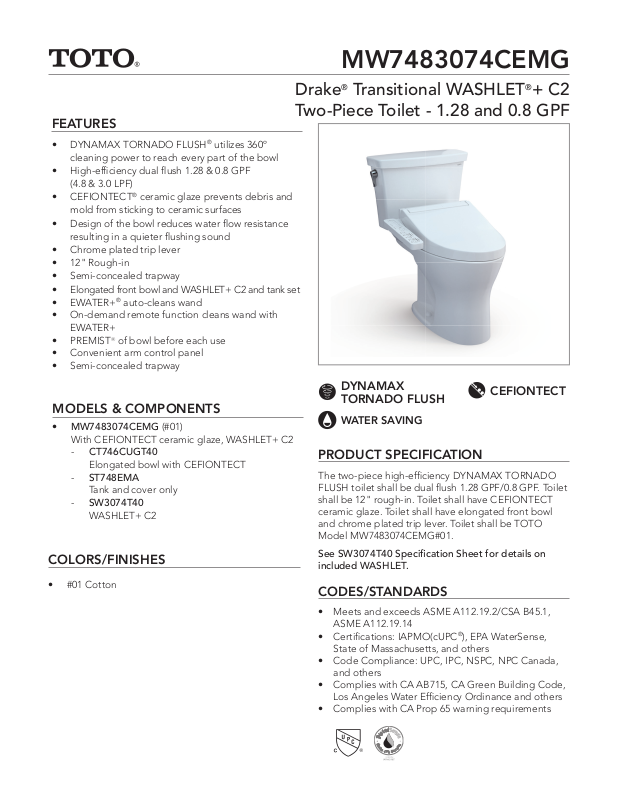

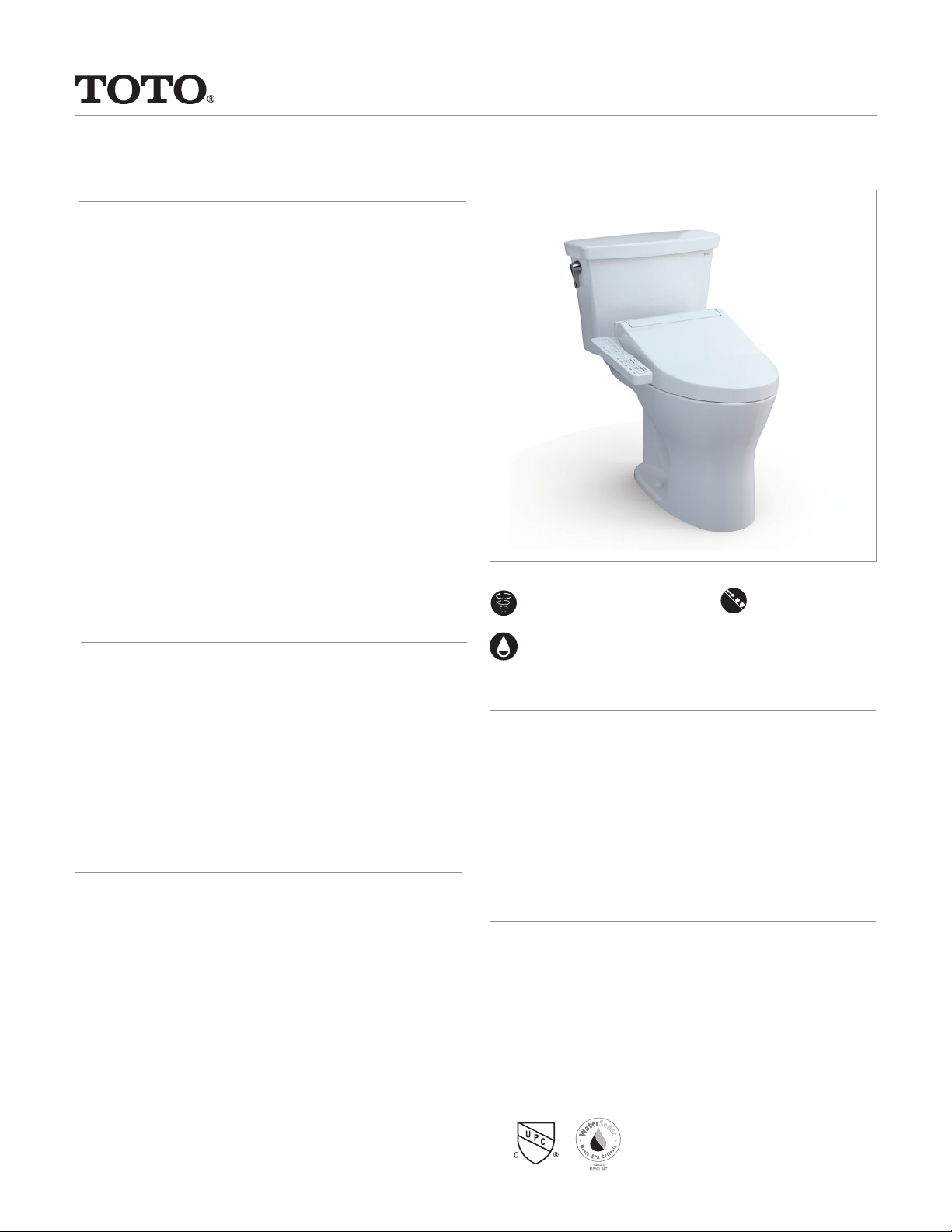

FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º
cleaning power to reach every part of the bowl
• High-effi ciency dual fl ush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Design of the bowl reduces water fl ow resistance
resulting in a quieter fl ushing sound
• Chrome plated trip lever
• 12" Rough-in
• Semi-concealed trapway
• Elongated front bowl and WASHLET+ C2 and tank set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient arm control panel
• Semi-concealed trapway
®
auto-cleans wand
MW7483074CEMG
Drake® Transitional WASHLET®+ C2
Two-Piece Toilet - 1.28 and 0.8 GPF
MODELS & COMPONENTS
• MW7483074CEMG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C2
- CT746CUGT40
Elongated bowl with CEFIONTECT
- ST748EMA
Tank and cover only
- SW3074T40
WASHLET+ C2
COLORS/FINISHES
• #01 Cotton
DYNAMAX
CEFIONTECT
TORNADO FLUSH
WATER SAVING
PRODUCT SPECIFICATION
The two-piece high-effi ciency DYNAMAX TORNADO
FLUSH toilet shall be dual fl ush 1.28 GPF/0.8 GPF. Toilet
shall be 12" rough-in. Toilet shall have CEFIONTECT
ceramic glaze. Toilet shall have elongated front bowl
and chrome plated trip lever. Toilet shall be TOTO
Model MW7483074CEMG#01.
See SW3074T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA AB715, CA Green Building Code,
Los Angeles Water Effi ciency Ordinance and others
• Complies with CA Prop 65 warning requirements
Page 2

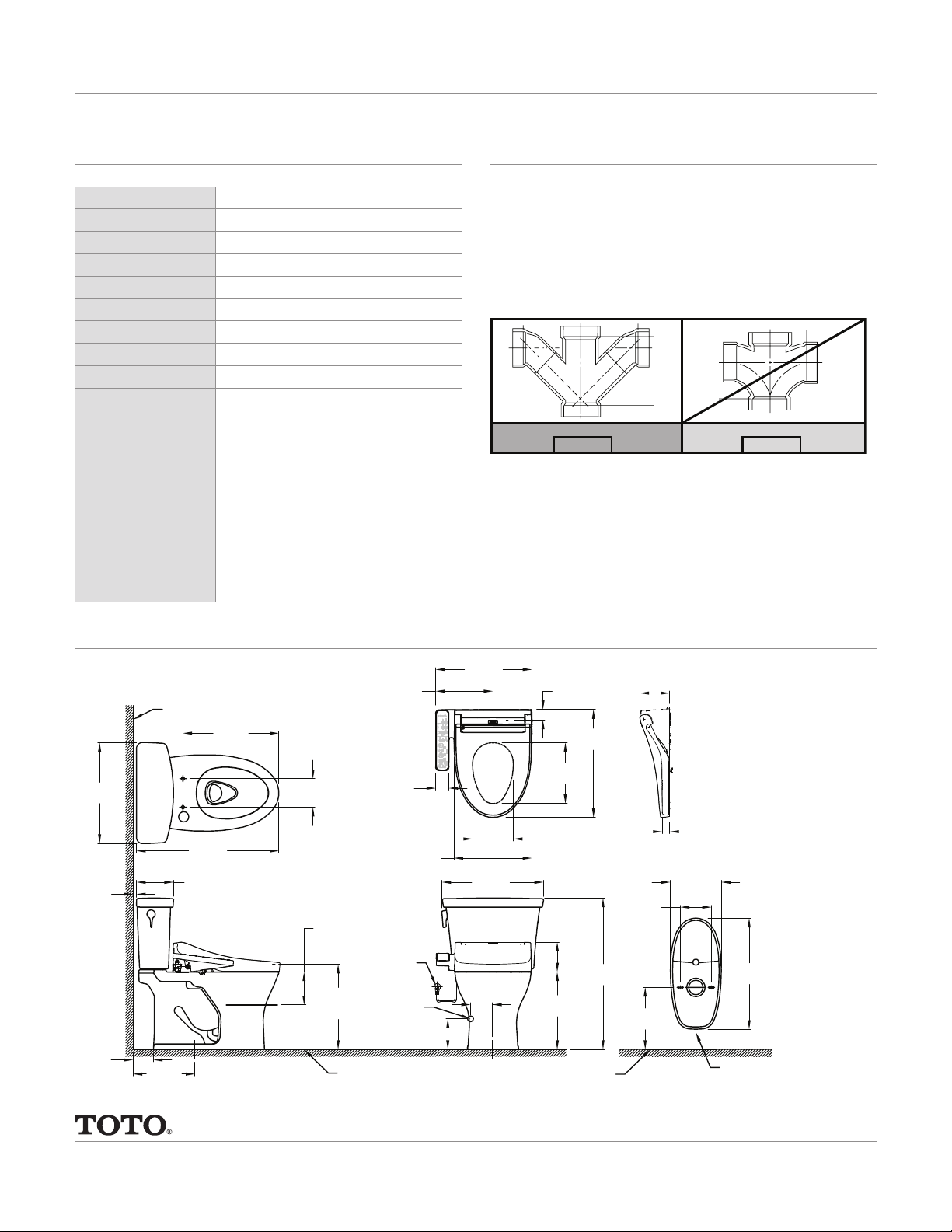

MW7483074CEMG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
[546mm]
[100mm]
MW7483074CEMG
Drake® Transitional WASHLET®+ C2 Two-Piece Toilet - 1.28 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3074T40 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Static)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUGT40
66 lbs.
ST748EMA
33.1 lbs.
SW3074T40
17 lbs.
CT746CUGT40
28"L x 15-1/4"W x 16-7/8"H
ST748EMA
19-7/8" L x 9-3/8" W x 15-5/8" H
SW3074T40
24-3/8"L x 20-3/4"W x 9-1/8"H
®
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
DIMENSIONS
**GFCI outlet o f 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
19 9/16"
[497mm]
[699mm]
7 3/16"
12"
[305mm]
[182mm]
11/16"
[17mm]
3 15/16"
27 9/16"
18 9/16"
[471mm]
5 1/2"
[140mm]
Water Level
6 3/8"
[162mm]
Seat Height
16 7/16"
[418mm]
Finished Fl oor
11 1/16"
[281mm]
2 9/16"
[64mm]
**GFCI Outlet
12" from Floor
Supply as
Req'd
15 1/16"
[383mm]
*5 15/16"
[150mm]
18 9/16"
[472mm]
7 7/8"
[200mm]
19 5/8"
[499mm]
*4 1/4"
[108mm]
* Suggested
Dimen sion
2"
[51mm]
[530mm]
11 13/16"
[300mm]
5 3/4"
[146mm]
15"
[380mm]
Finished Wall
20 7/8"
29 5/16"
[744mm]
1 7/16"
[37mm]
[152mm]
[305mm]
5 13/16"
[147mm]
6"
12"
9 7/8"
[251mm]
21 1/2"
Back of
Bowl
Fixture Dimensions shown are nominal. These dimensions and specications are subject to change without notice.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01871 v.01
