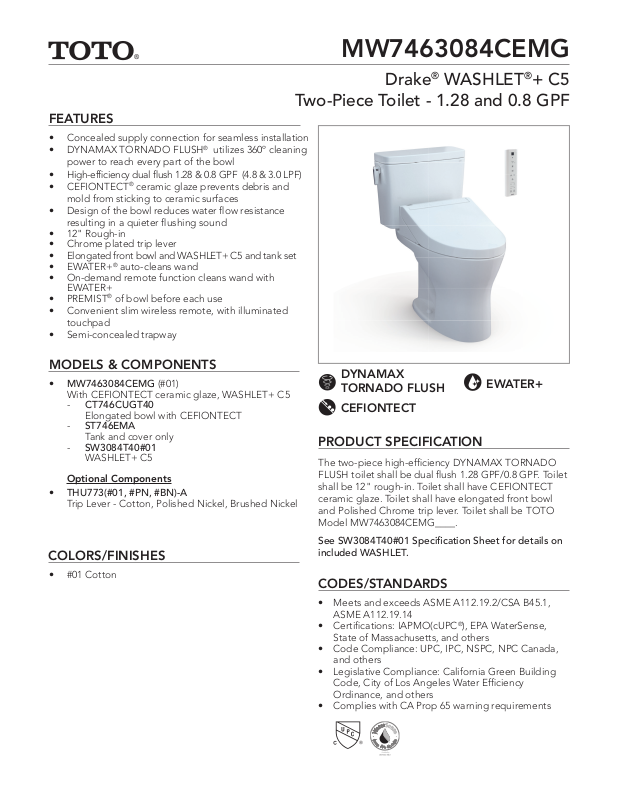

Two-Piece Toilet - 1.28 and 0.8 GPF
FEATURES
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• High-effi ciency dual fl ush 1.28 & 0.8 GPF (4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Design of the bowl reduces water fl ow resistance
resulting in a quieter fl ushing sound
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C5 and tank set
• EWATER+® auto-cleans wand
• On-demand remote function cleans wand with
EWATER+
• PREMIST
• Convenient slim wireless remote, with illuminated
touchpad
• Semi-concealed trapway
®
of bowl before each use
MW7463084CEMG
Drake® WASHLET®+ C5
MODELS & COMPONENTS
• MW7463084CEMG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C5
- CT746CUGT40
Elongated bowl with CEFIONTECT
- ST746EMA
Tank and cover only
- SW3084T40#01
WASHLET+ C5
Optional Components
• THU773(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
DYNAMAX
TORNADO FLUSH
EWATER+
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-effi ciency DYNAMAX TORNADO
FLUSH toilet shall be dual fl ush 1.28 GPF/0.8 GPF. Toilet
shall be 12" rough-in. Toilet shall have CEFIONTECT
ceramic glaze. Toilet shall have elongated front bowl
and Polished Chrome trip lever. Toilet shall be TOTO
Model MW7463084CEMG____.
See SW3084T40#01 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Effi ciency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MW7463084CEMG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
MW7463084CEMG
MW7463084CSMG
MW7463084CUMG
[546mm]
Drake® WASHLET®+ C5
Two-Piece Toilet - 1.28 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3084T40#01 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUGT40
66 lbs.
ST746EMA
35 lbs.
CT746CUGT40
18-3/4" L x 10-1/2" W x 18-1/8"H
ST746EMA
18-3/4" L x 8-3/8" W x 16"H
®

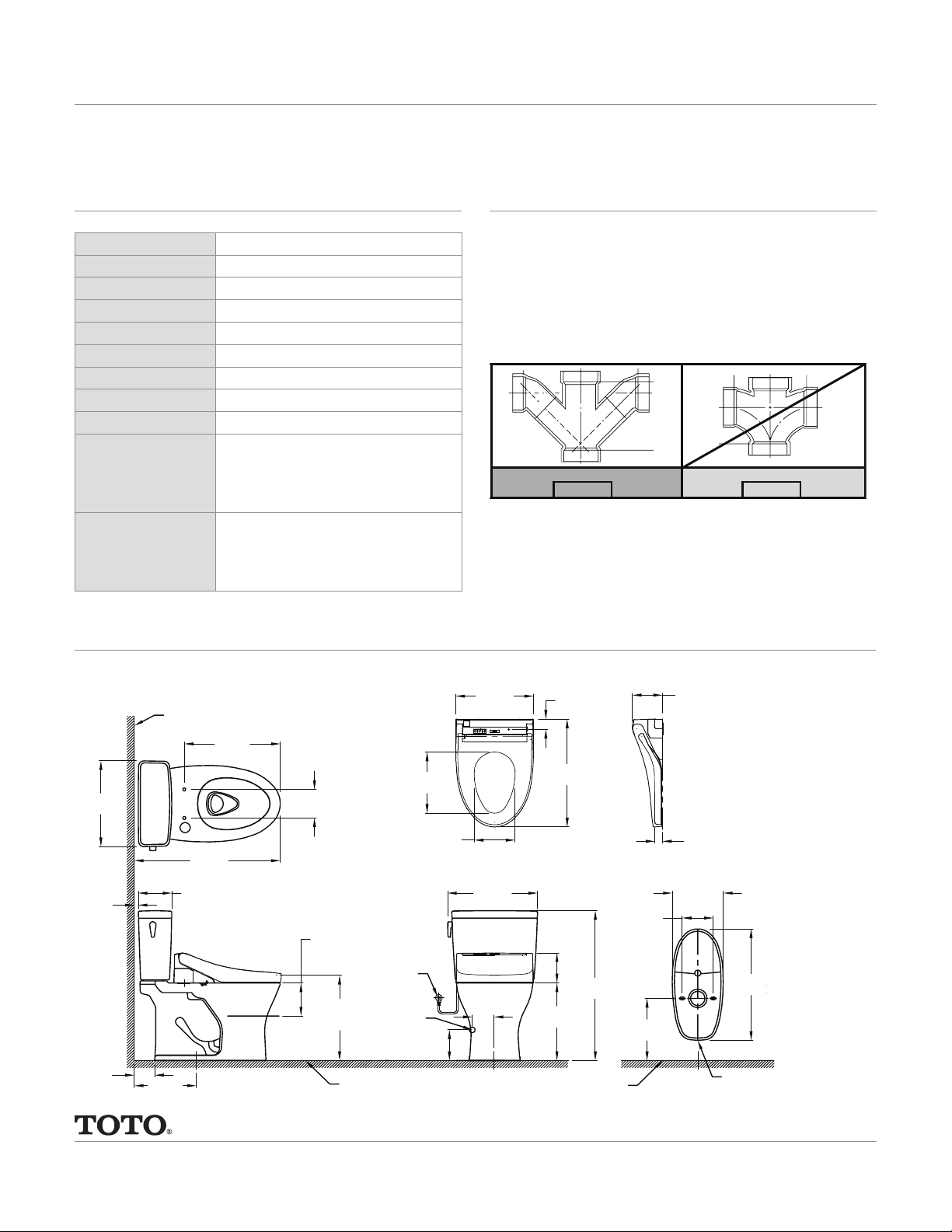

DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
16 9/16"
[421mm]
3/4"
[20mm]
3 15/16"
[100mm]
**GFCI outlet of 120V, 10amps.
Washlet power cord is 4' long with 3 prongs.
Finished Wall
18 9/16"
[471mm]
28 3/16"
[716mm]
6 1/2"
[164mm]
12"
[305mm]
5 1/2"
[140mm]
Water Level
6 3/8"
[162mm]
**GFCI Outlet
12" from Floor
Seat Height
16 7/16"
[418mm]
Finished Fl oor
11 13/16"
[300mm]
Supply as
Req'd
*5 15/16"
[150mm]
7 7/8"
[200mm]
15 1/16"
[382mm]
17 3/8"
[441mm]
4 1/4"
[108mm]
* Suggested
Dimension
[51mm]
20 13/16"
[529mm]
5 13/16"
[147mm]
15"
[381mm]
2"
28 15/16"
[735mm]
Finished Wall
6"
[152mm]
12"
[305mm]
5 13/16"
[147mm]
1 7/16"
[37mm]
9 7/8"
[251mm]
21 1/2"
Back of
Bowl
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01854 v.01
