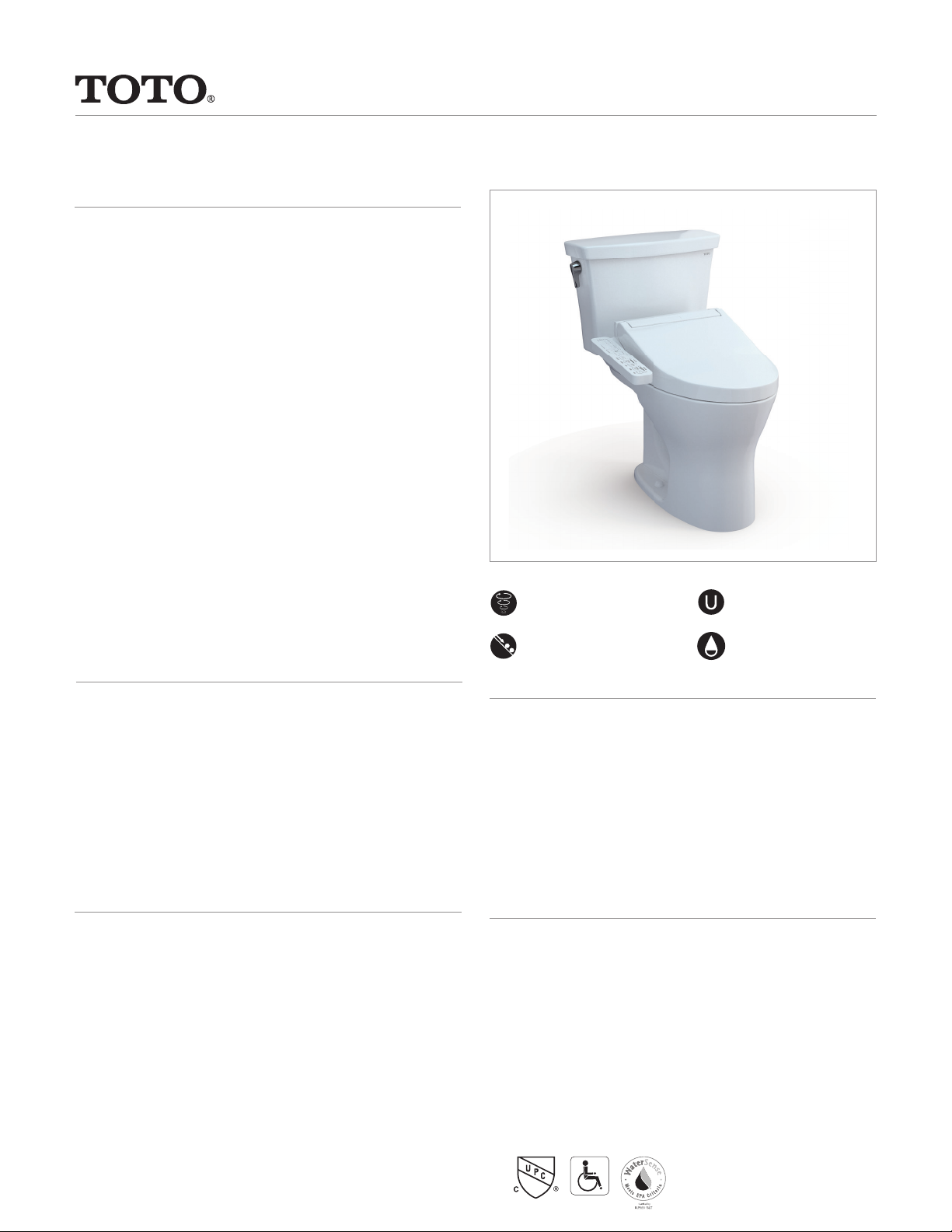

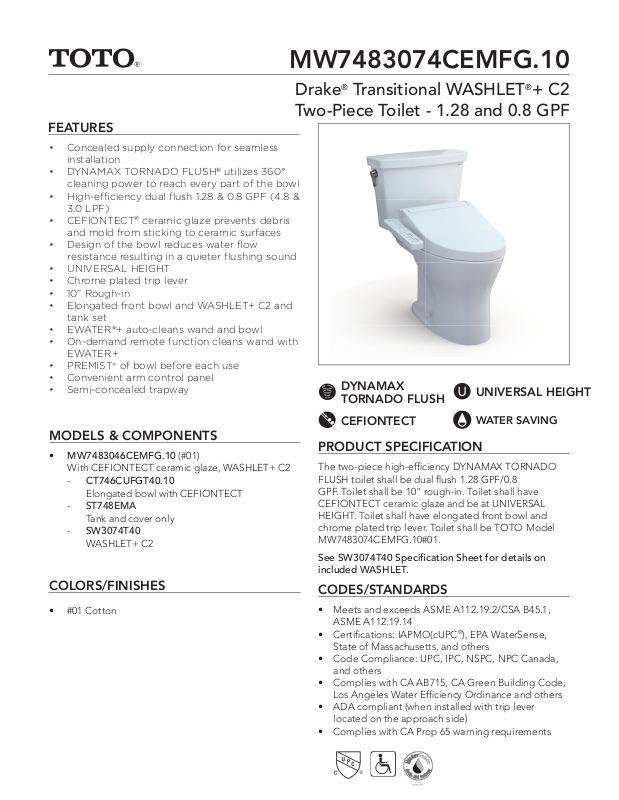

MW7483074CEMFG.10
FEATURES
• Concealed supply connection for seamless
installation
• DYNAMAX TORNADO FLUSH® utilizes 360°
cleaning power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF (4.8 &
3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris
and mold from sticking to ceramic surfaces
• Design of the bowl reduces water flow
resistance resulting in a quieter flushing sound
• UNIVERSAL HEIGHT
• Chrome plated trip lever
• 10” Rough-in
• Elongated front bowl and WASHLET+ C2 and
tank set
• EWATER
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient arm control panel
• Semi-concealed trapway
®
+ auto-cleans wand and bowl
Drake® Transitional WASHLET®+ C2
Two-Piece Toilet - 1.28 and 0.8 GPF
DYNAMAX
TORNADO FLUSH
UNIVERSAL HEIGHT
MODELS & COMPONENTS
• MW7483046CEMFG.10 (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C2
- CT746CUFGT40.10
Elongated bowl with CEFIONTECT
- ST748EMA
Tank and cover only
- SW3074T40
WASHLET+ C2
COLORS/FINISHES
• #01 Cotton
CEFIONTECT
WATER SAVING
PRODUCT SPECIFICATION
The two-piece high-effi ciency DYNAMAX TORNADO
FLUSH toilet shall be dual fl ush 1.28 GPF/0.8
GPF. Toilet shall be 10" rough-in. Toilet shall have
CEFIONTECT ceramic glaze and be at UNIVERSAL
HEIGHT. Toilet shall have elongated front bowl and
chrome plated trip lever. Toilet shall be TOTO Model
MW7483074CEMFG.10#01.
See SW3074T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA AB715, CA Green Building Code,
Los Angeles Water Effi ciency Ordinance and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW7483074CEMFG.10
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
[546mm]
MW7463074CEMFG.10
Drake® Transitional WASHLET®+ C2 Two-Piece Toilet - 1.28 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3074T40 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
®
8 psi (Static)
5-5/8" x 4-1/8"
2-1/2"
10"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUFGT40.10
66 lbs.
ST748EMA
33.1 lbs.
SW3074T40
17 lbs.
CT746CUFGT40.10
28-1/4"L x 17-1/4"W1 x 10-3/4"W2 x 17-1/4"H
ST748EMA
19-7/8" L x 9-3/8" W x 15-5/8" H
SW3074T40
24-3/8"L x 20-3/4"W x 9-1/8"H

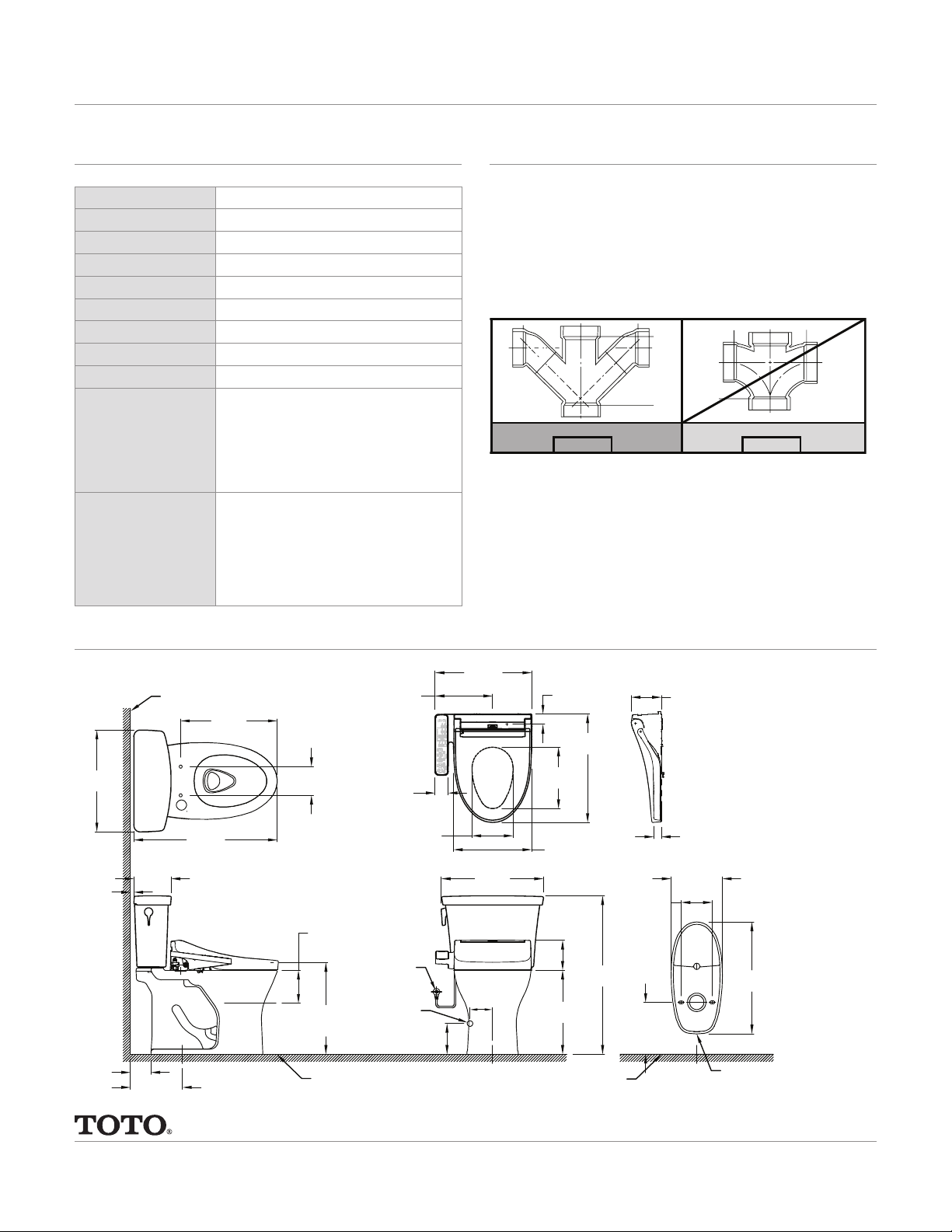

DIMENSIONS
**GFCI outlet o f 120V, 10amps.
19 9/16"
[497mm]
Washlet power cord is 4' long with 3 prongs.
Finished Wall
18 9/16"
[471mm]
5 1/2"
[140mm]
11 1/16"
[281mm]
2 9/16"
[64mm]
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
10” rough-in distance.
18 9/16"
[472mm]
2"
[51mm]
11 13/16"
[300mm]
20 7/8"
[530mm]
5 13/16"
[147mm]
[200mm]
Supply as
Req'd
*5 15/16"
[150mm]
7 7/8"
*4 1/4"
[108mm]
* Suggested
Dimension
11/16"
[17mm]
3 15/16"
[100mm]
7 3/16"
[182mm]
10"
[254mm]
27 9/16"
[699mm]
Water Level
6 3/8"
[162mm]
Seat Height
17 5/8"
[448mm]
Finished Fl oor
**GFCI Outlet
12" from Floor
Fixture Dimensions shown are nominal. These dimensions and specications are subject to change without notice.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
19 5/8"
[499mm]
15 1/16"
[383mm]
5 3/4"
[146mm]
16 1/8"
[410mm]
Finished Wall
1 7/16"
[37mm]
30 1/2"
[774mm]
6"
[152mm]
10"
[254mm]
9 7/8"
[251mm]
21 1/2"
Back of
Bowl
# SS-01875 v.01
