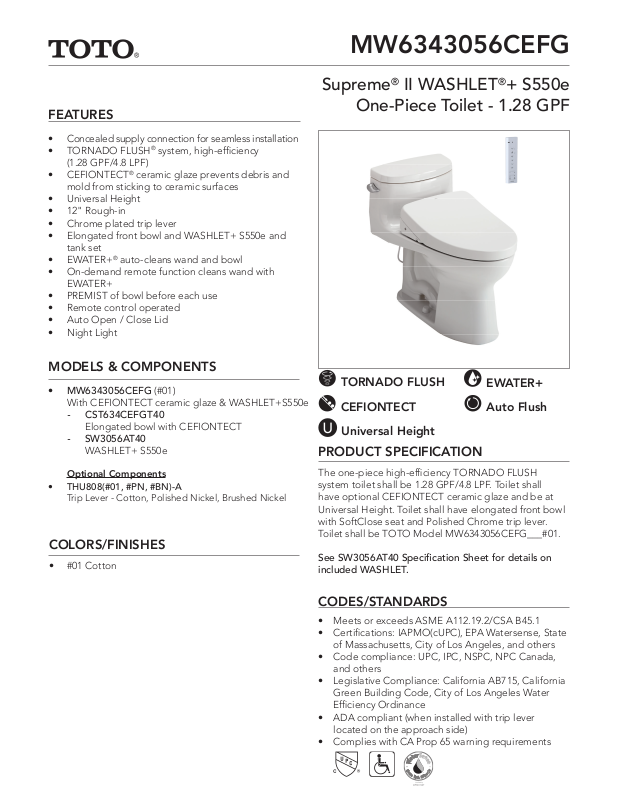

Page 1
MW6343056CEFG
Supreme® II WASHLET®+ S550e
FEATURES
• Concealed supply connection for seamless installation
• TORNADO FLUSH® system, high-effi ciency
(1.28 GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Universal Height
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S550e and
tank set
• EWATER+® auto-cleans wand and bowl
• On-demand remote function cleans wand with
EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Open / Close Lid
• Night Light
MODELS & COMPONENTS
• MW6343056CEFG (#01)
With CEFIONTECT ceramic glaze & WASHLET+S550e
- CST634CEFGT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
One-Piece Toilet - 1.28 GPF
TORNADO FLUSH
CEFIONTECT
Universal Height
PRODUCT SPECIFICATION
EWATER+
Auto Flush
Optional Components
• THU808(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
The one-piece high-effi ciency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall
have optional CEFIONTECT ceramic glaze and be at
Universal Height. Toilet shall have elongated front bowl
with SoftClose seat and Polished Chrome trip lever.
Toilet shall be TOTO Model MW6343056CEFG___#01.
See SW3056AT40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW6343056CEFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH
Min. Water Pressure 8 psi (Static)
Water Surface 6-5/8" x 9-1/8"
Trap Diameter 2-1/8"
Rough-in 12"
Tra p Seal 2-1/4"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 99 lbs
Shipping
Dimensions
See SW3056AT40 Specication Sheet for details on included WASHLET.
32"L x 20"W x 17-3/4"H
®
1
x 28-3/4"H
Supreme
®
II WASHLET
®
+ S550e
One-Piece Toilet - 1.28 GPF
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
2
To maintain adequate wall gap between the back of
the tank and wall, mount the oor ange at a nominal
12” rough-in distance.
DIMENSIONS
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01826 v.01
