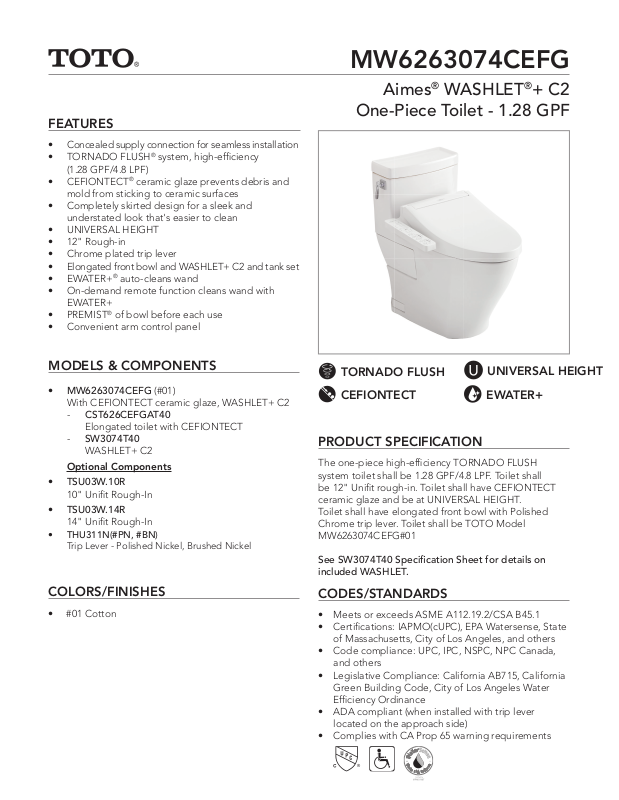

Page 1
FEATURES
• Concealed supply connection for seamless installation
• TORNADO FLUSH® system, high-effi ciency
(1.28 GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Completely skirted design for a sleek and
understated look that's easier to clean
• UNIVERSAL HEIGHT
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C2 and tank set
• EWATER+® auto-cleans wand
• On-demand remote function cleans wand with
EWATER+
• PREMIST
• Convenient arm control panel
®
of bowl before each use
MW6263074CEFG
Aimes® WASHLET®+ C2
One-Piece Toilet - 1.28 GPF
MODELS & COMPONENTS
• MW6263074CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C2
- CST626CEFGAT40
Elongated toilet with CEFIONTECT
- SW3074T40
WASHLET+ C2
Optional Components
• TSU03W.10R
10" Unifi t Rough-In
• TSU03W.14R
14" Unifi t Rough-In
• THU311N(#PN, #BN)
Trip Lever - Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
CEFIONTECT
UNIVERSAL HEIGHT
EWATER+
PRODUCT SPECIFICATION
The one-piece high-effi ciency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall
be 12" Unifi t rough-in. Toilet shall have CEFIONTECT
ceramic glaze and be at UNIVERSAL HEIGHT.
Toilet shall have elongated front bowl with Polished
Chrome trip lever. Toilet shall be TOTO Model
MW6263074CEFG#01
See SW3074T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW6263074CEFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aimes® WASHLET®+ C2
One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH
Min. Water Pressure 8 psi (Flowing)
Water Surface 7-3/4" x 9-3/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" & 14" Optional)
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 119 lbs
Shipping
Dimensions
See SW3074T40 Specication Sheet for details on included WASHLET.
32"L x 20"W x 17-3/4" H
®
1
x 28-3/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
2
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01831 v.01
