Page 1
TBV02801U
TBV02801U#$$

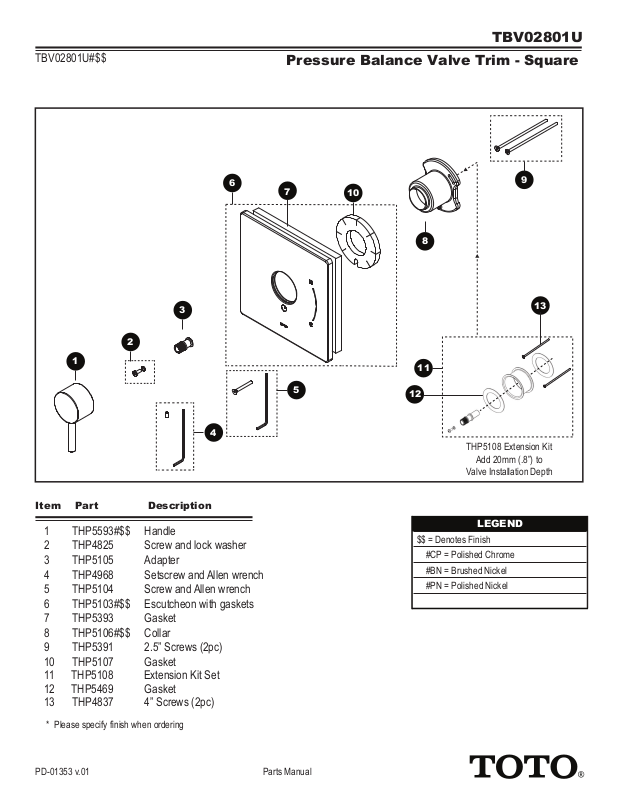

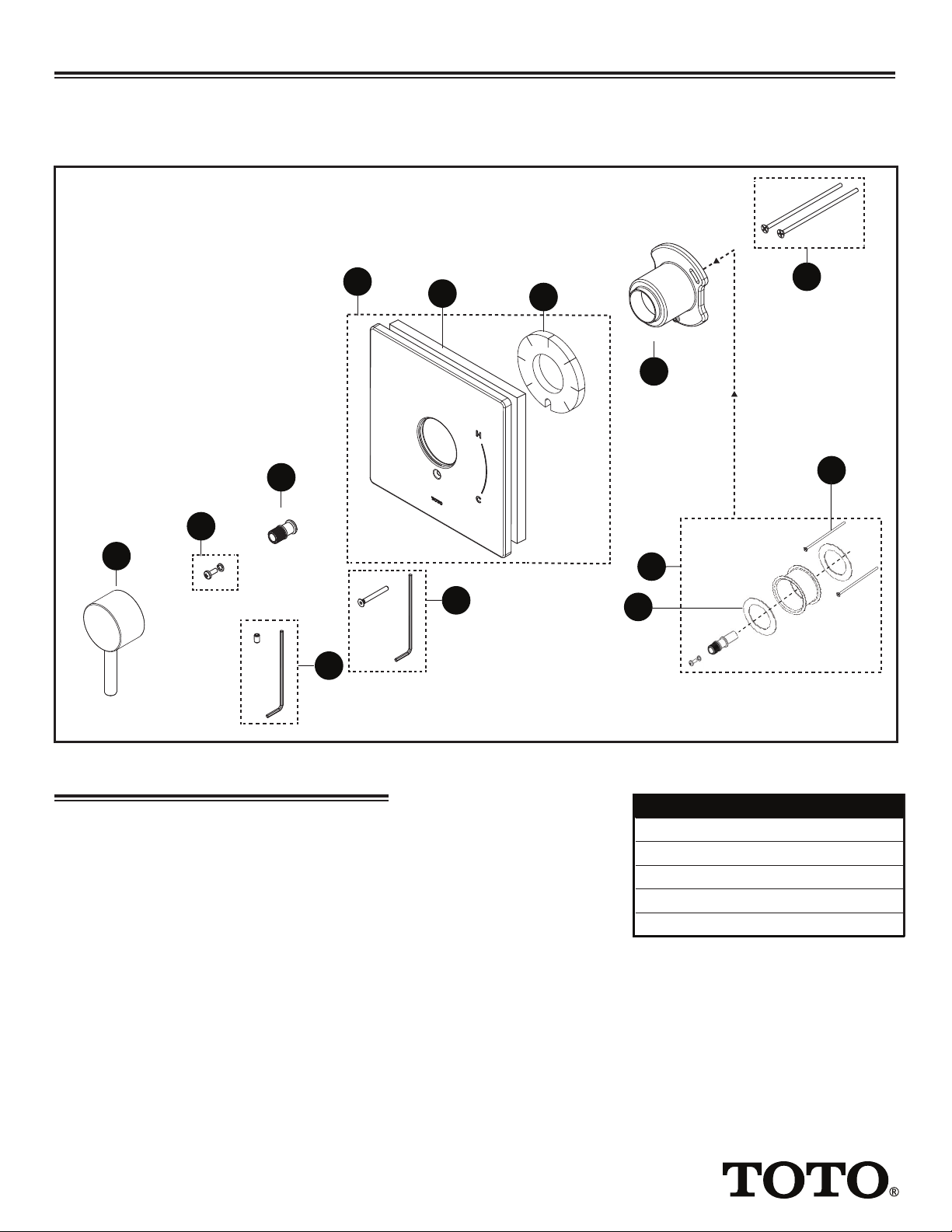

Pressure Balance Valve Trim - Square
6
3
2
7
10
8
9
13
1
4
Item Part Description
1 THP5593#$$ Handle
2 THP4825 Screw and lock washer
3 THP5105 Adapter
4 THP4968 Setscrew and Allen wrench
5 THP5104 Screw and Allen wrench
6 THP5103#$$ Escutcheon with gaskets
7 THP5393 Gasket
8 THP5106#$$ Collar
9 THP5391 2.5” Screws (2pc)
10 THP5107 Gasket
11 THP5108 Extension Kit Set
12 THP5469 Gasket
13 THP4837 4” Screws (2pc)
11
5
12
THP5108 Extension Kit
Add 20mm (.8”) to
Valve Installation Depth
LEGEND
$$ = Denotes Finish
#CP = Polished Chrome
#BN = Brushed Nickel
#PN = Polished Nickel
* Please specify finish when ordering
PD-01353 v.01 Parts Manual
