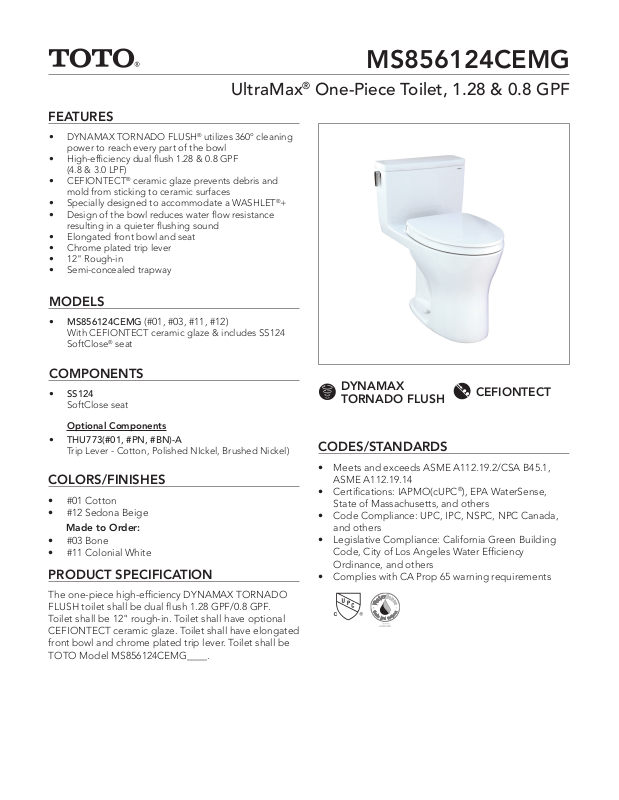

Page 1
UltraMax® One-Piece Toilet, 1.28 & 0.8 GPF
FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET®+
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Elongated front bowl and seat
• Chrome plated trip lever
• 12" Rough-in
• Semi-concealed trapway
MODELS
• MS856124CEMG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose® seat
MS856124CEMG
COMPONENTS
• SS124
SoftClose seat
Optional Components
• THU773(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished NIckel, Brushed Nickel)
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
Made to Order:
• #03 Bone
• #11 Colonial White
PRODUCT SPECIFICATION
The one-piece high-efficiency DYNAMAX TORNADO
FLUSH toilet shall be dual flush 1.28 GPF/0.8 GPF.
Toilet shall be 12" rough-in. Toilet shall have optional
CEFIONTECT ceramic glaze. Toilet shall have elongated
front bowl and chrome plated trip lever. Toilet shall be
TOTO Model MS856124CEMG____.
DYNAMAX
TORNADO FLUSH
CEFIONTECT
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS856124CEMG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
UltraMax® One-Piece Toilet, 1.28 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
96 lbs.
29-1/4"L x 19-1/4"W x 19-3/4"H1, 27"H2
DIMENSIONS
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
15 5/16"
5 1/2"
[140mm]
HEIGHT
16 7/16"
[417mm]
SEAT
[389mm]
*SUGGESTED
DIMENSION
SUPPLY
AS REQ'D
*5 7/8"
[150mm]
FINISHED
FLOOR
16 7/16"
[417mm]
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
6 3/8"
[162mm]
21 7/16"
[545mm]
Ø1 15/16"
[Ø50mm]
WATER
LEVEL
4 5/8"
[117mm]
6 3/8"
[162mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
17 3/16"
[437mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
RIM
HEIGHT
14 15/16"
[380mm]
26 3/8"
[670mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
12"
[305mm]
# SS-01561 v.01
