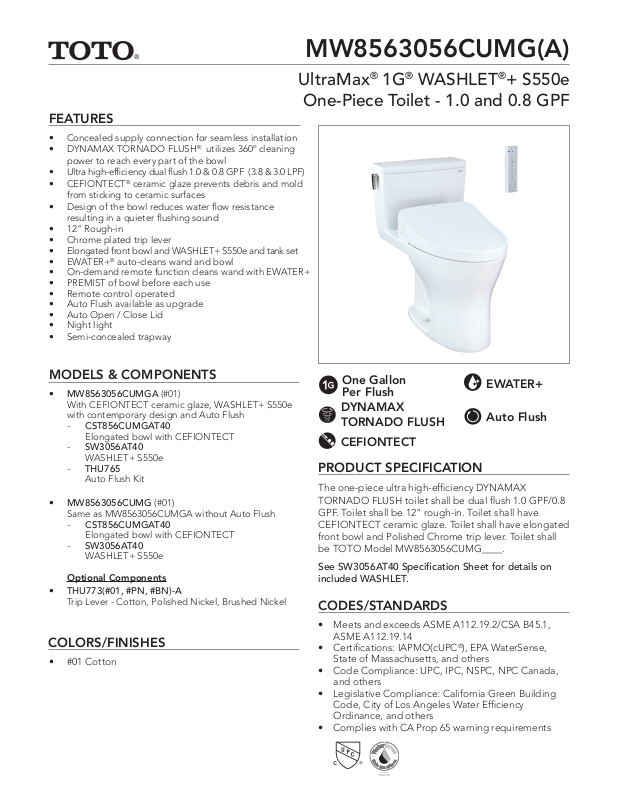

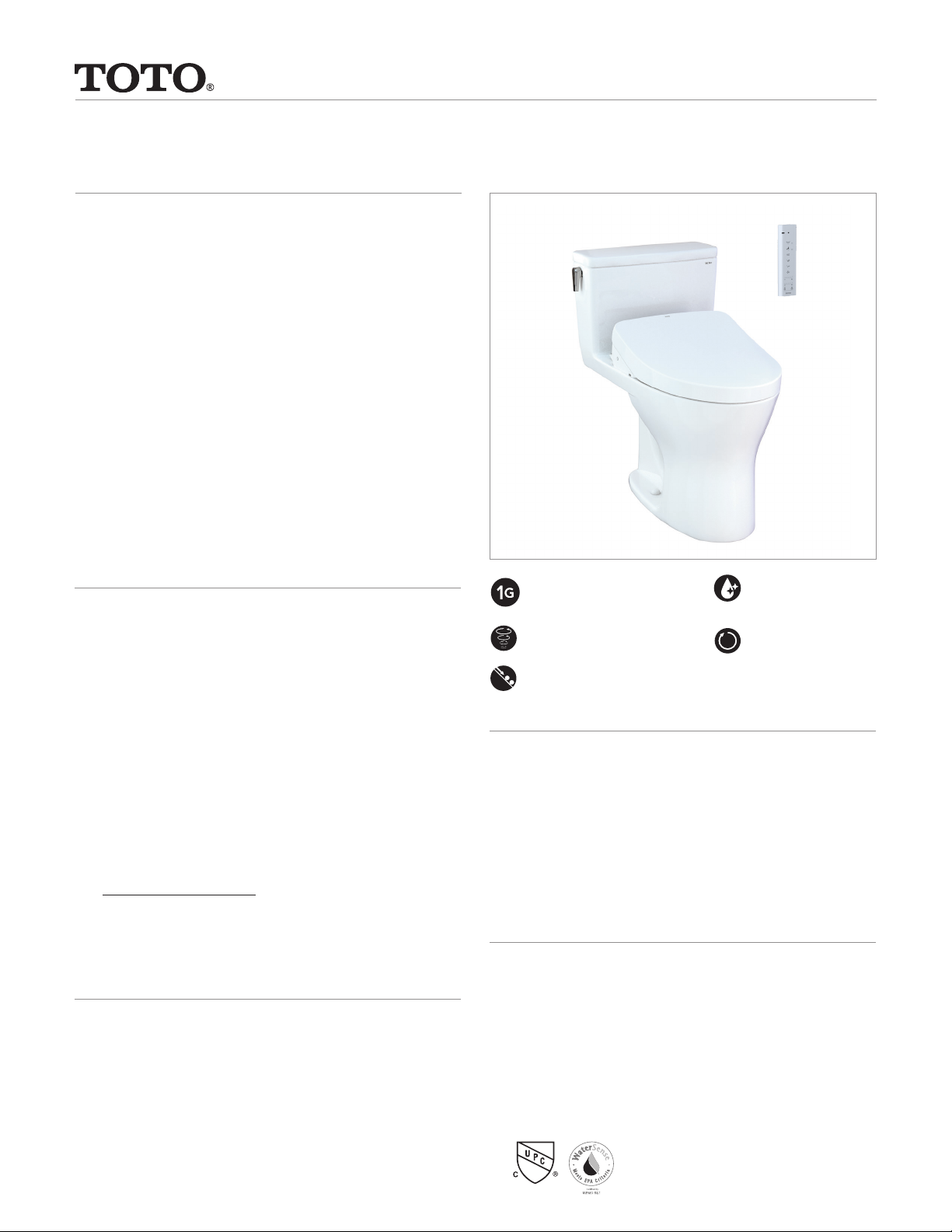

Page 1
UltraMax® 1G® WASHLET®+ S550e
FEATURES
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Ultra high-efficiency dual flush 1.0 & 0.8 GPF (3.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S550e and tank set
• EWATER+® auto-cleans wand and bowl
• On-demand remote function cleans wand with EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Auto Open / Close Lid
• Night light
• Semi-concealed trapway
MW8563056CUMG(A)
One-Piece Toilet - 1.0 and 0.8 GPF
MODELS & COMPONENTS
• MW8563056CUMGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S550e
with contemporary design and Auto Flush
- CST856CUMGAT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
- THU765
Auto Flush Kit
• MW8563056CUMG (#01)
Same as MW8563056CUMGA without Auto Flush
- CST856CUMGAT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
Optional Components
• THU773(#01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
One Gallon
Per Flush
EWATER+
DYNAMAX
TORNADO FLUSH
Auto Flush
CEFIONTECT
PRODUCT SPECIFICATION
The one-piece ultra high-efficiency DYNAMAX
TORNADO FLUSH toilet shall be dual flush 1.0 GPF/0.8
GPF. Toilet shall be 12" rough-in. Toilet shall have
CEFIONTECT ceramic glaze. Toilet shall have elongated
front bowl and Polished Chrome trip lever. Toilet shall
be TOTO Model MW8563056CUMG____.
See SW3056AT40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MW8563056CUMG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
UltraMax® 1G® WASHLET®+ S550e
One-Piece Toilet - 1.0 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3056AT40 Specication Sheet for details on included WASHLET.
1.0 & 0.8 GPF (3.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
®
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
105 lbs.
29-1/4"L x 19-1/4"W x 19-3/4"H1, 27"H2

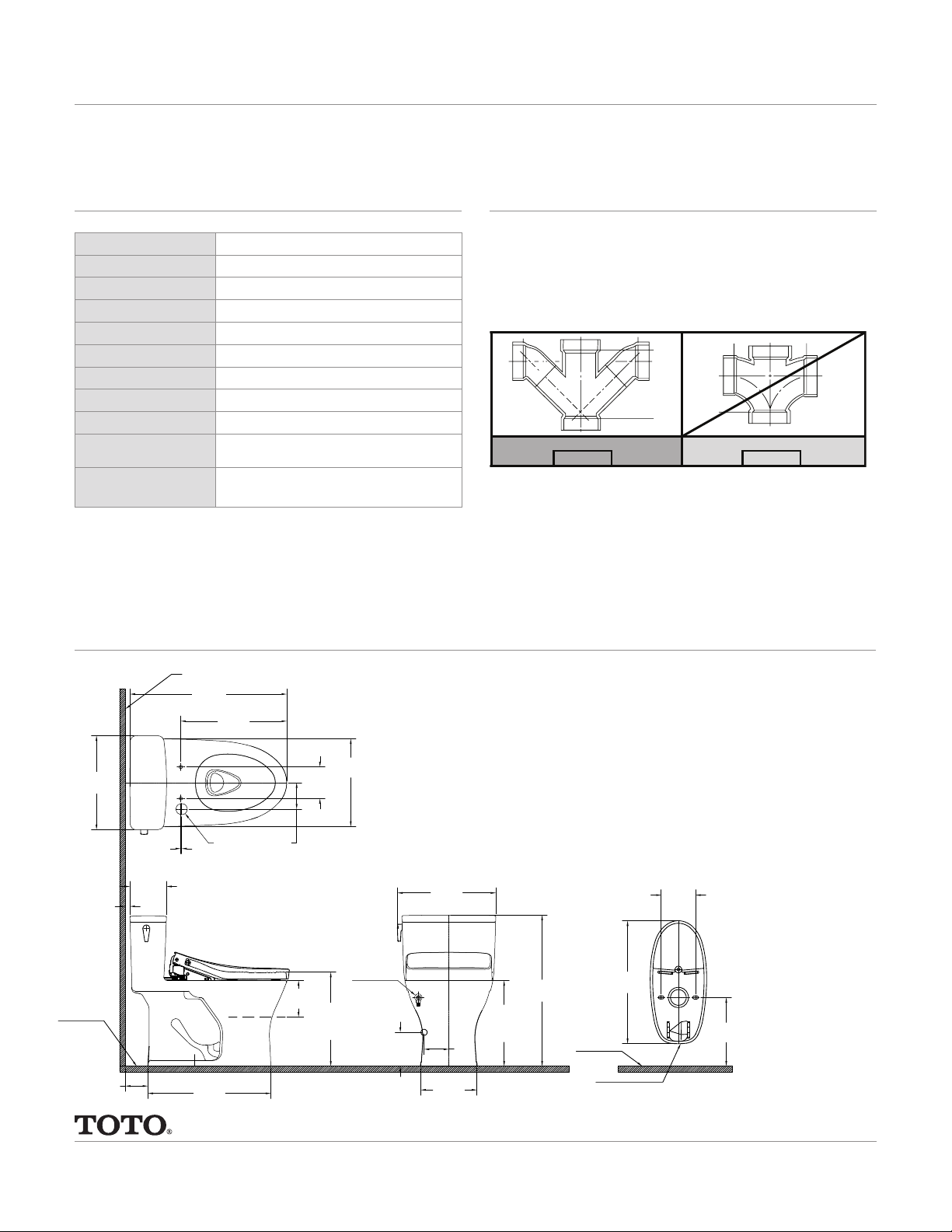

DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4" ID drainline with minimum 2% slope
and maximum linear runs of 60ft. Fixture Dimensions
shown are nominal.
FINISHED
FLOOR
16 7/16"
[417mm]
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
6 3/8"
[162mm]
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
Ø1 15/16"
[Ø50mm]
21 7/16"
[545mm]
5 1/2"
[140mm]
4 5/8"
[117mm]
*SUGGESTED LOCATION OF
SHUTOFF VALVE
**GFCI OUTLET 120V, 10 A MPS.
WASHLET POWER CORD 3 PRONGS
6 3/8"
WATER
LEVEL
[162mm]
SEAT
HEIGHT
16 7/16"
[417mm]
15 5/16"
[389mm]
12" FROM
**GFCI
OUTLET
FLOOR
*5 7/8"
[150mm]
17 3/16"
[437mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
RIM
HEIGHT
14 15/16"
[380mm]
26 3/8"
[670mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
12"
[305mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01569 v.01
