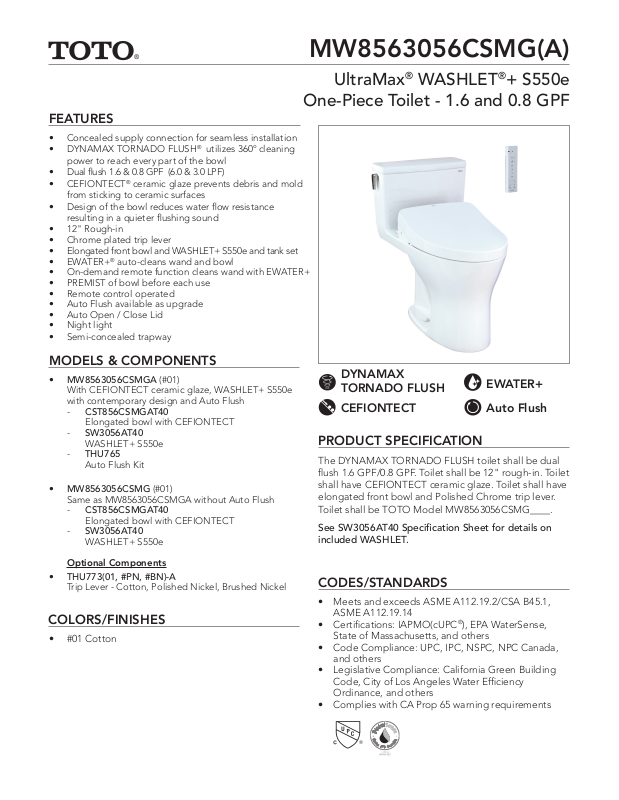

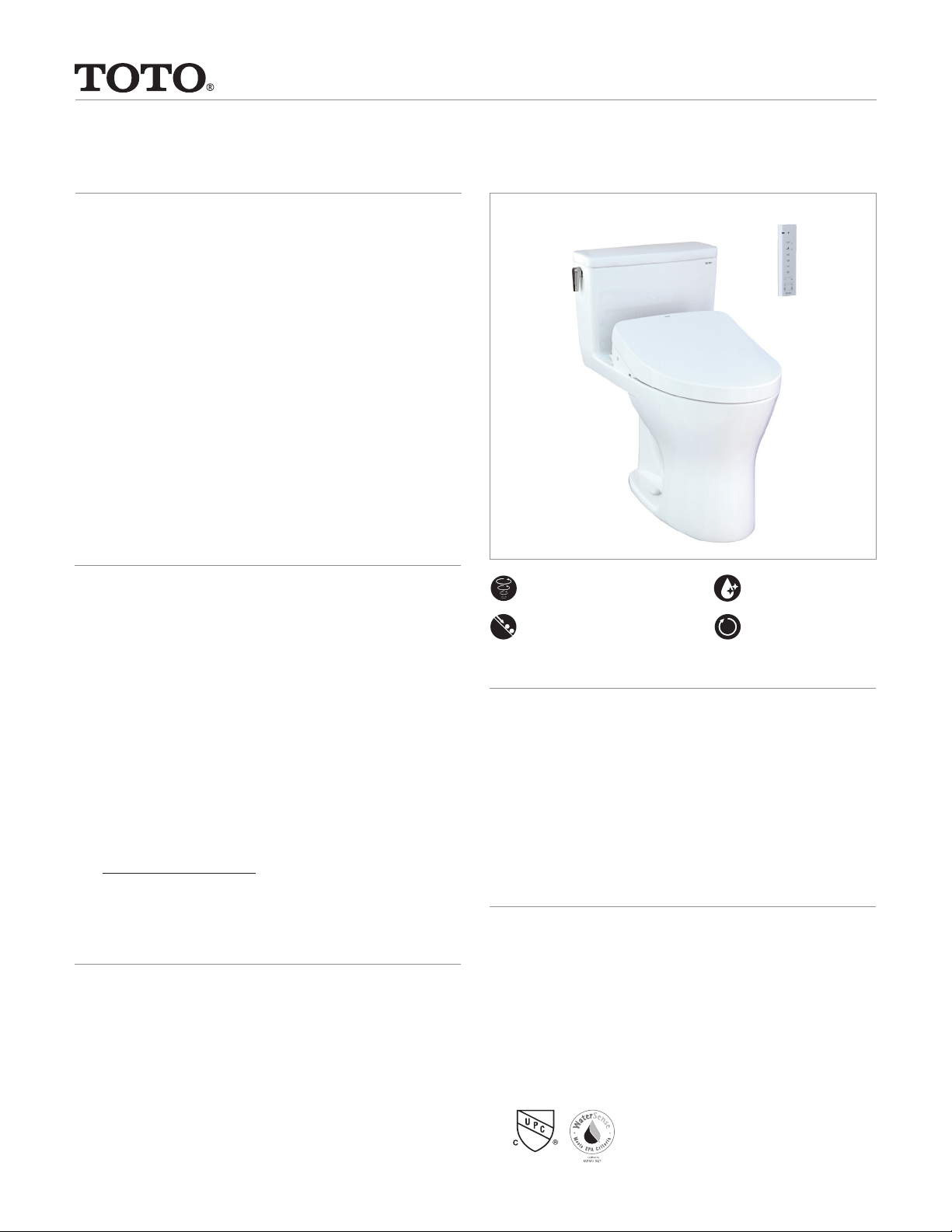

FEATURES
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Dual flush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S550e and tank set
• EWATER+® auto-cleans wand and bowl
• On-demand remote function cleans wand with EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Auto Open / Close Lid
• Night light
• Semi-concealed trapway
MW8563056CSMG(A)
UltraMax® WASHLET®+ S550e
One-Piece Toilet - 1.6 and 0.8 GPF
MODELS & COMPONENTS
• MW8563056CSMGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S550e
with contemporary design and Auto Flush
- CST856CSMGAT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
- THU765
Auto Flush Kit
• MW8563056CSMG (#01)
Same as MW8563056CSMGA without Auto Flush
- CST856CSMGAT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
Optional Components
• THU773(01, #PN, #BN)-A
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
COLORS/FINISHES
• #01 Cotton
DYNAMAX
TORNADO FLUSH
CEFIONTECT
EWATER+
Auto Flush
PRODUCT SPECIFICATION
The DYNAMAX TORNADO FLUSH toilet shall be dual
flush 1.6 GPF/0.8 GPF. Toilet shall be 12" rough-in. Toilet
shall have CEFIONTECT ceramic glaze. Toilet shall have
elongated front bowl and Polished Chrome trip lever.
Toilet shall be TOTO Model MW8563056CSMG____.
See SW3056AT40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MW8563056CSMG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
UltraMax® WASHLET®+ S550e
One-Piece Toilet - 1.6 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3056AT40 Specication Sheet for details on included WASHLET.
1.6 & 0.8 GPF (6.0 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
®
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
105 lbs.
29-1/4"L x 19-1/4"W x 19-3/4"H1, 27"H2

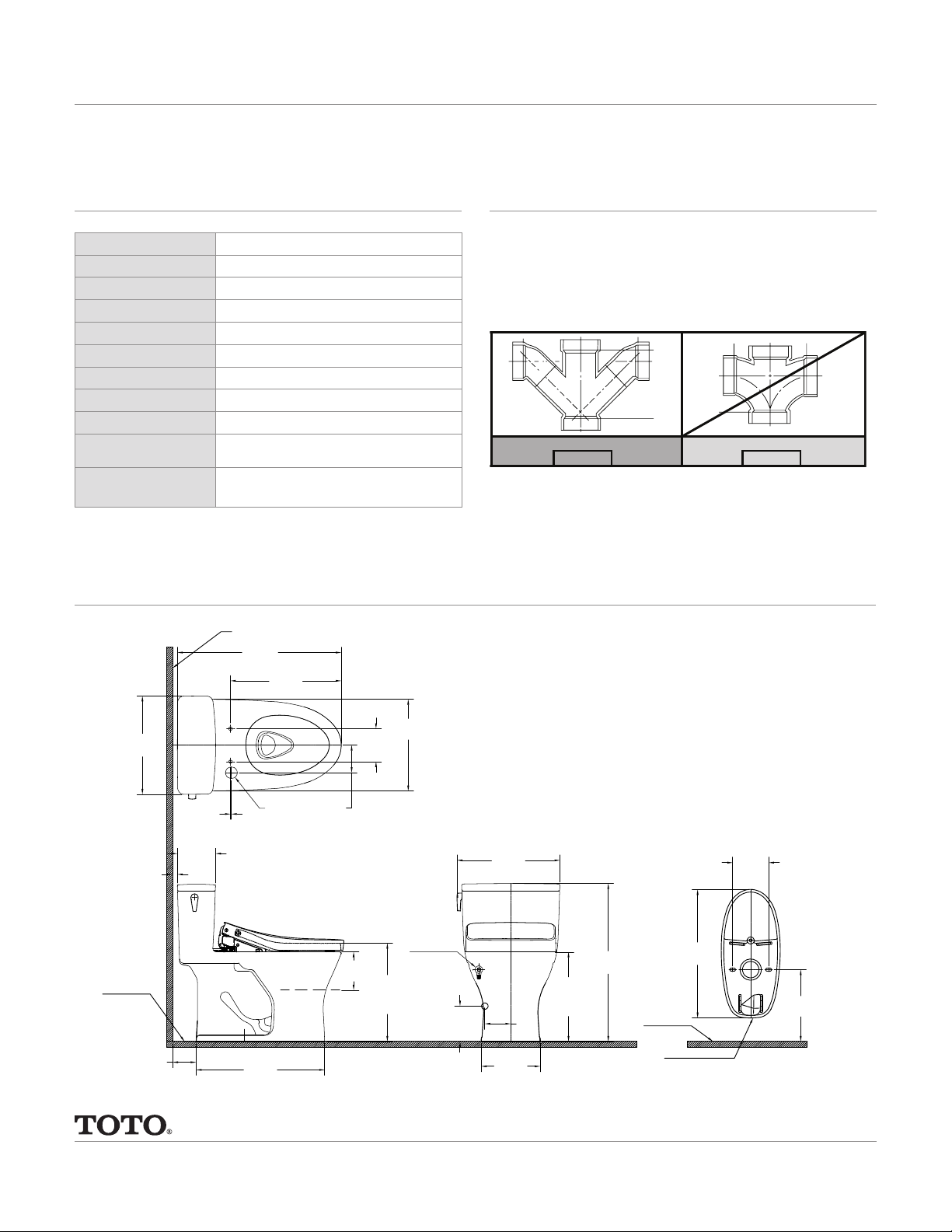

DIMENSIONS
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
15 5/16"
5 1/2"
[140mm]
SEAT
HEIGHT
16 7/16"
[417mm]
[389mm]
12" FROM
**GFCI
OUTLET
FLOOR
*5 7/8"
[150mm]
FINISHED
FLOOR
16 7/16"
[417mm]
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
6 3/8"
[162mm]
21 7/16"
[545mm]
Ø1 15/16"
[Ø50mm]
4 5/8"
[117mm]
*SUGGESTED LOCATION OF
SHUTOFF VALVE
**GFCI OUTLET 120V , 10 AMPS.
WASHLET POWER CORD 3 PRONGS
WATER
LEVEL
[162mm]
6 3/8"
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
17 3/16"
[437mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
RIM
HEIGHT
14 15/16"
[380mm]
26 3/8"
[670mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
12"
[305mm]
# SS-01571 v.01
