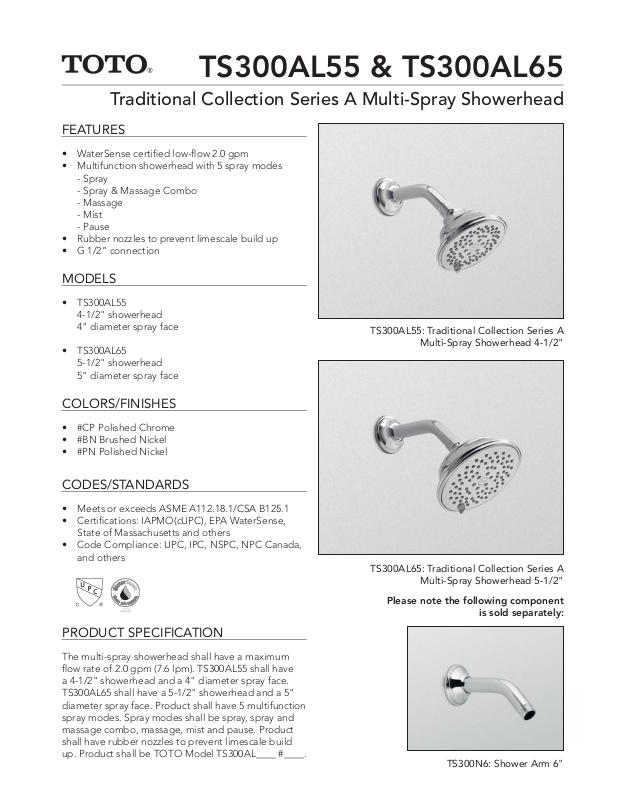

Page 1
TS300AL55 & TS300AL65
Traditional Collection Series A Multi-Spray Showerhead
FEATURES
• WaterSense certifi ed low-fl ow 2.0 gpm
• Multifunction showerhead with 5 spray modes
- Spray
- Spray & Massage Combo
- Massage
- Mist
- Pause
• Rubber nozzles to prevent limescale build up
• G 1/2” connection
MODELS
• TS300AL55
4-1/2" showerhead
4" diameter spray face
• TS300AL65
5-1/2" showerhead
5" diameter spray face
TS300AL55: Traditional Collection Series A
Multi-Spray Showerhead 4-1/2"
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The multi-spray showerhead shall have a maximum
fl ow rate of 2.0 gpm (7.6 lpm). TS300AL55 shall have
a 4-1/2" showerhead and a 4" diameter spray face.
TS300AL65 shall have a 5-1/2" showerhead and a 5"
diameter spray face. Product shall have 5 multifunction
spray modes. Spray modes shall be spray, spray and
massage combo, massage, mist and pause. Product
shall have rubber nozzles to prevent limescale build
up. Product shall be TOTO Model TS300AL____ #____.
TS300AL65: Traditional Collection Series A
Multi-Spray Showerhead 5-1/2"
Please note the following component
is sold separately:
TS300N6: Shower Arm 6"
Page 2
TS300AL55 & TS300AL65
Traditional Collection Series A Multi-Spray Showerhead
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass / Plastics
• Shipping Weight TS300AL55: 0.9 lbs.
TS300AL65: 1.1 lbs.
• Shipping Dimensions TS300AL55 & TS300AL65:
3-1/2"L x 5-3/4"W x 6-3/4"H
• Maximum Flow Rate 2.0 gpm (7.6 lpm)
0 100 200 300 400 500
3.0
2.5
2.0
1.5
Flow rate (gpm)
1.0
0.5
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
11. 4
9.5
Flow rate (lpm)
7.6
5.7
3.8
1.9
0.0
INSTALLATION NOTES
OPTIONAL SHOWERHEAD COMPONENT:
TS300N6: Shower Arm 6" sold separately.
TS300AL55: 4-3/8"
TS300AL65:
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
(111mm)
G 1/2"
5-5/16"
(135mm)
3-3/8"
(85mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 09/11 | Printed on recycled paper ♻
#SS-00842, v.04
