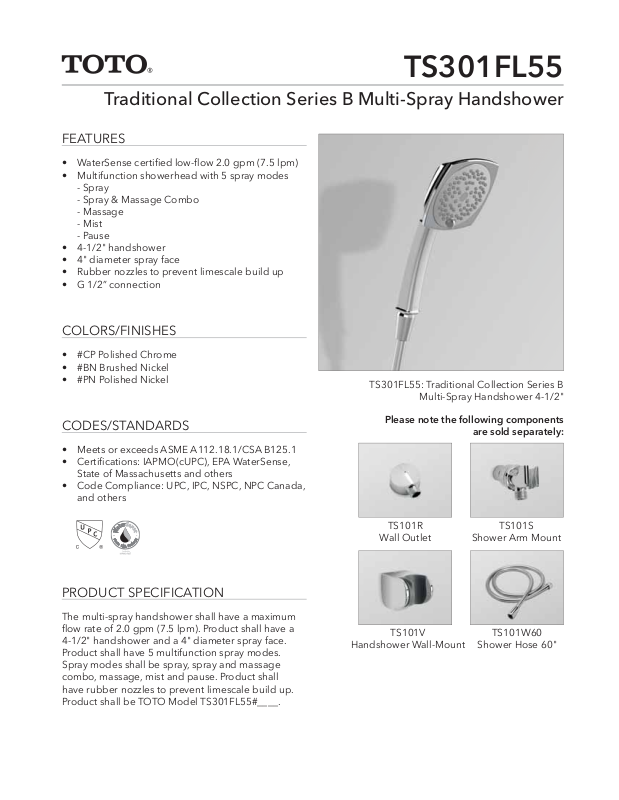

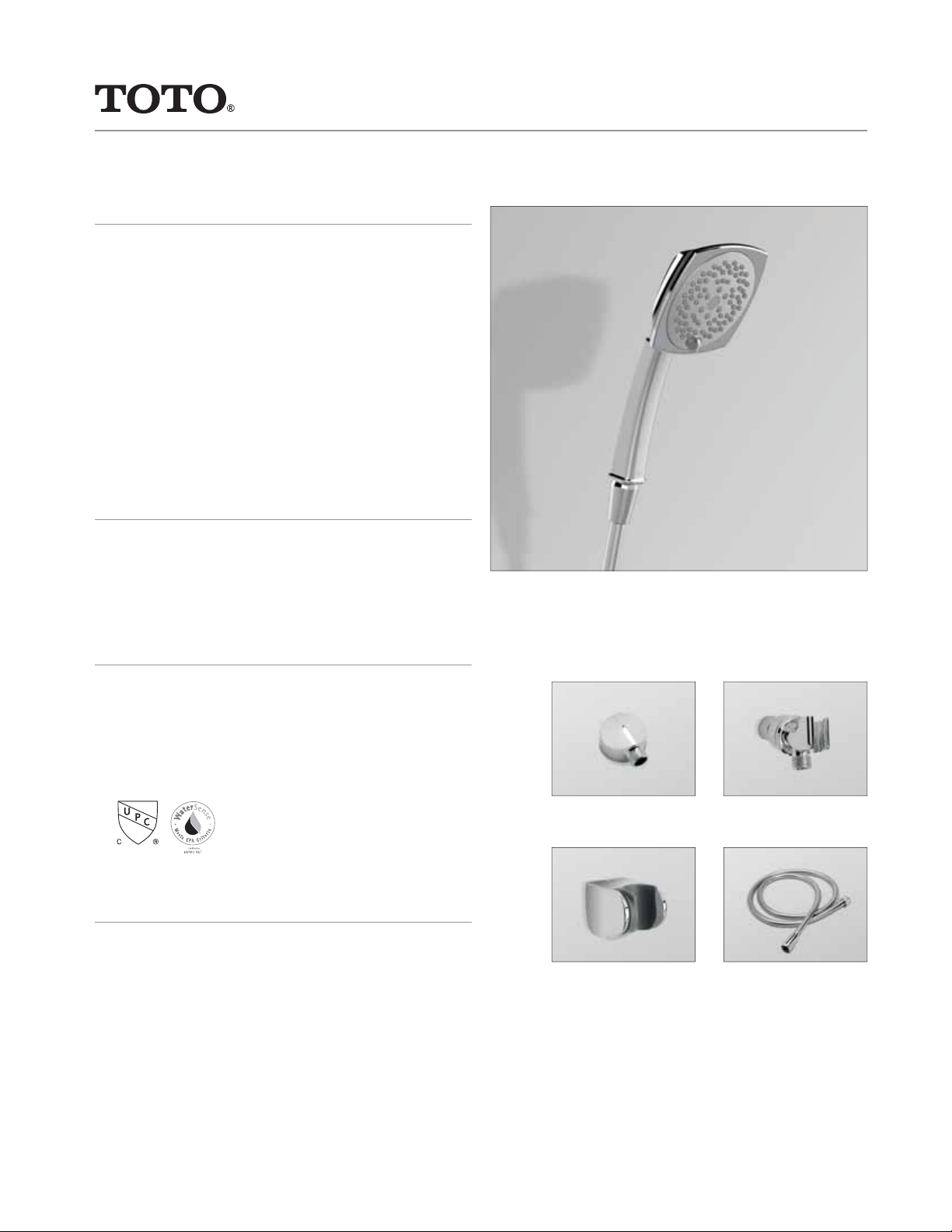

Traditional Collection Series B Multi-Spray Handshower
FEATURES
• WaterSense certifi ed low-fl ow 2.0 gpm (7.5 lpm)
• Multifunction showerhead with 5 spray modes
- Spray
- Spray & Massage Combo
- Massage
- Mist
- Pause
• 4-1/2" handshower
• 4" diameter spray face
• Rubber nozzles to prevent limescale build up
• G 1/2” connection
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TS301FL55
TS301FL55: Traditional Collection Series B
Multi-Spray Handshower 4-1/2"
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The multi-spray handshower shall have a maximum
fl ow rate of 2.0 gpm (7.5 lpm). Product shall have a
4-1/2" handshower and a 4" diameter spray face.
Product shall have 5 multifunction spray modes.
Spray modes shall be spray, spray and massage
combo, massage, mist and pause. Product shall
have rubber nozzles to prevent limescale build up.
Product shall be TOTO Model TS301FL55#____.
Please note the following components
TS101R
Wall Outlet
TS101V
Handshower Wall-Mount
are sold separately:
TS101S
Shower Arm Mount
TS101W60
Shower Hose 60"
Page 2
TS301FL55
Traditional Collection Series B Multi-Spray Handshower

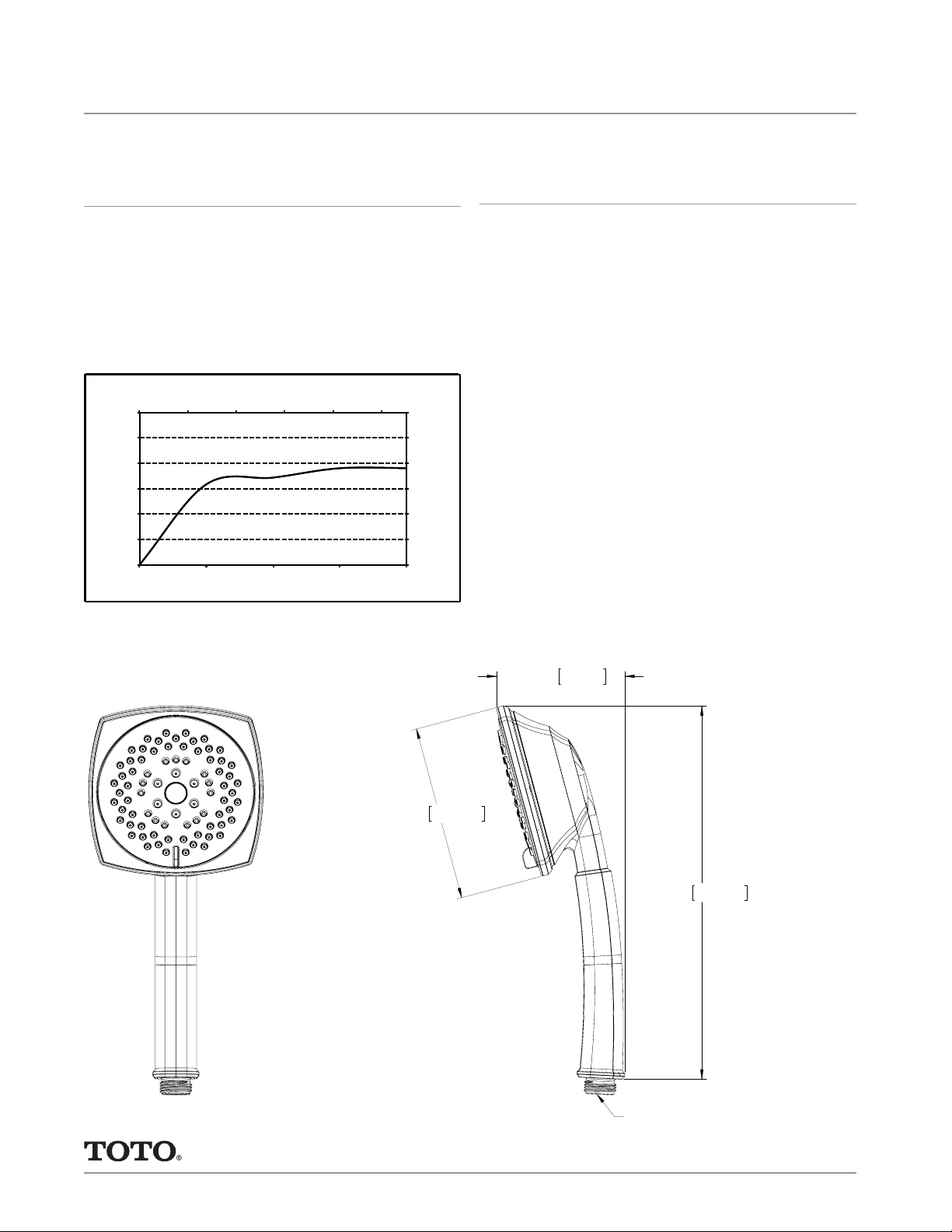

SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Plastics
• Shipping Weight 1.0 lbs.
• Shipping Dimensions 4"L x 4-1/4"W x 11-1/4"H
• Maximum Flow Rate 2.0 gpm (7.6 lpm)
0 100 200 300 400 500
3.0
2.5
2.0
1.5
Flow rate (gpm)
1.0
0.5
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
11. 4
9.5
Flow rate (lpm)
7.6
5.7
3.8
1.9
0.0
INSTALLATION NOTES
OPTIONAL HANDSHOWER COMPONENTS:
- TS101R: Wall Outlet
- TS101S: Shower Arm Mount
- TS101V: Handshower Wall-Mount
- TS101W60: Shower Hose 60"
4-1/2"
114mm
3-3/4"
95mm
9-7/16"
G 1/2"
240mm
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
#SS-00994, v.01
Printed in U.S.A. | © TOTO USA 05/13 | Printed on recycled paper ♻
