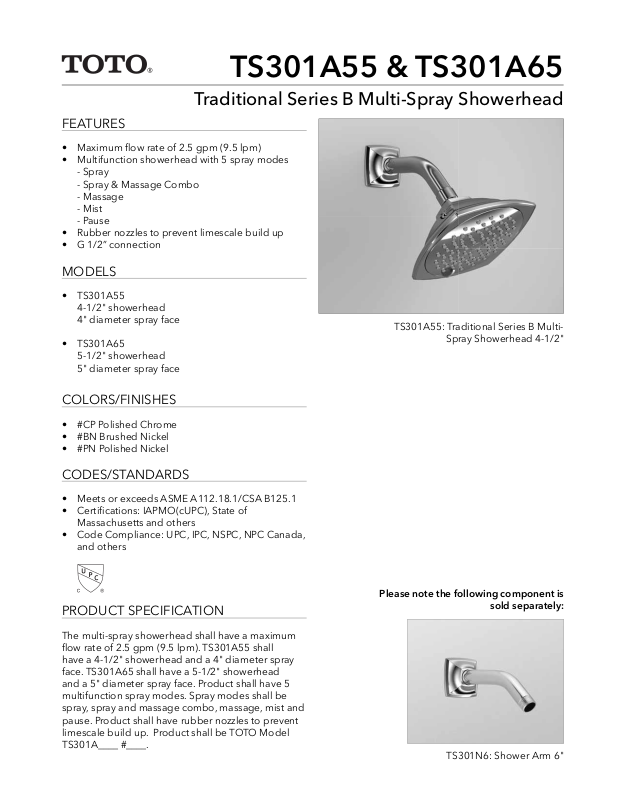

Page 1
TS301A55 & TS301A65
Traditional Series B Multi-Spray Showerhead
FEATURES
• Maximum fl ow rate of 2.5 gpm (9.5 lpm)
• Multifunction showerhead with 5 spray modes
- Spray
- Spray & Massage Combo
- Massage
- Mist
- Pause
• Rubber nozzles to prevent limescale build up
• G 1/2” connection
MODELS
• TS301A55
4-1/2" showerhead
4" diameter spray face
• TS301A65
5-1/2" showerhead
5" diameter spray face
TS301A55: Traditional Series B Multi-
Spray Showerhead 4-1/2"
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The multi-spray showerhead shall have a maximum
fl ow rate of 2.5 gpm (9.5 lpm). TS301A55 shall
have a 4-1/2" showerhead and a 4" diameter spray
face. TS301A65 shall have a 5-1/2" showerhead
and a 5" diameter spray face. Product shall have 5
multifunction spray modes. Spray modes shall be
spray, spray and massage combo, massage, mist and
pause. Product shall have rubber nozzles to prevent
limescale build up. Product shall be TOTO Model
TS301A____ #____.
Please note the following component is
sold separately:
TS301N6: Shower Arm 6"
Page 2
TS301A55 & TS301A65
Traditional Series B Multi-Spray Showerhead
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass / Plastics
• Shipping Weight TS301A55: 1.0 lbs.
TS301A65: 1.1 lbs.
• Shipping Dimensions TS301A55 & TS301A65:
3-1/2"L x 5-3/4"W x 6-3/4"H
• Maximum Flow Rate 2.5 gpm (9.5 lpm)
0 100 200 300 400 500
3.0
2.5
2.0
1.5
Flow rate (gpm)
1.0
0.5
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
11. 4
9.5
Flow rate (lpm)
7.6
5.7
3.8
1.9
0.0
INSTALLATION NOTES
OPTIONAL SHOWERHEAD COMPONENT:
TS301N6: Shower Arm 6" sold separately.
TS301A55 4-1/2" [114mm]
TS301A65 5-1/2” [140mm]
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
G 1/2"
3-5/16"
These dimensions and specifi cations are subject to change without notice
85mm
#SS-00988 v.01
Printed in U.S.A. | © TOTO USA 05/13 | Printed on recycled paper ♻
