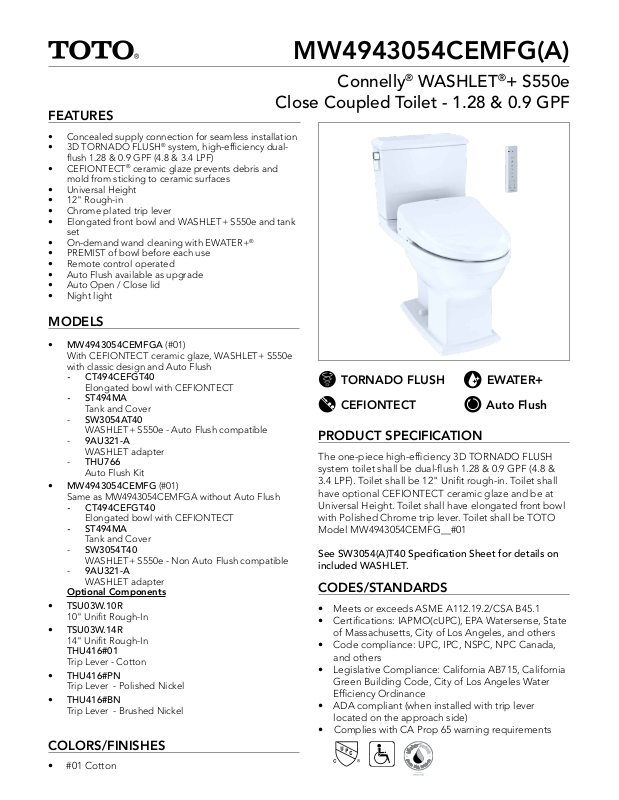

Page 1
FEATURES
MW4943054CEMFG(A)
Connelly® WASHLET®+ S550e
Close Coupled Toilet - 1.28 & 0.9 GPF
• Concealed supply connection for seamless installation
• 3D TORNADO FLUSH
flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Universal Height
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S550e and tank
set
• On-demand wand cleaning with EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Auto Open / Close lid
• Night light
®
ceramic glaze prevents debris and
®
system, high-efficiency dual-
®
MODELS
• MW4943054CEMFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S550e
with classic design and Auto Flush
- CT494CEFGT40
Elongated bowl with CEFIONTECT
- ST494MA
Tank and Cover
- SW3054AT40
WASHLET+ S550e - Auto Flush compatible
- 9AU321-A
WASHLET adapter
- THU766
Auto Flush Kit
• MW4943054CEMFG (#01)
Same as MW4943054CEMFGA without Auto Flush
- CT494CEFGT40
Elongated bowl with CEFIONTECT
- ST494MA
Tank and Cover
- SW3054T40
WASHLET+ S550e - Non Auto Flush compatible
- 9AU321-A
WASHLET adapter
Optional Components
• TSU03W.10R
10" Unifit Rough-In
• TSU03W.14R
14" Unifit Rough-In
THU416#01
Trip Lever - Cotton
• THU416#PN
Trip Lever - Polished Nickel
• THU416#BN
Trip Lever - Brushed Nickel
COLORS/FINISHES
TORNADO FLUSH
CEFIONTECT
EWATER+
Auto Flush
PRODUCT SPECIFICATION
The one-piece high-efficiency 3D TORNADO FLUSH
system toilet shall be dual-flush 1.28 & 0.9 GPF (4.8 &
3.4 LPF). Toilet shall be 12" Unifit rough-in. Toilet shall
have optional CEFIONTECT ceramic glaze and be at
Universal Height. Toilet shall have elongated front bowl
with Polished Chrome trip lever. Toilet shall be TOTO
Model MW4943054CEMFG__#01
See SW3054(A)T40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
• #01 Cotton
Page 2
MW4943054CEMFG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Connelly® WASHLET®+ S550e
Close Coupled Toilet - 1.28 & 0.9 GPF
SPECIFICATIONS
Water Use 1.28 & 0.9 GPF (4.8 & 3.4 LPF)
Flush System 3D TORNADO FLUSH
Min. Water Pressure 8 psi (Flowing)
Water Surface 5-5/8" x 4-1/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" & 14" Optional)
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
CT494CEFGT40
Shipping Weight
Shipping
Dimensions
See SW3054(A)T40 Specication Sheet for details on included WASHLET.
70 lbs
ST494MA
31 lbs
CT494CEFGT40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST494MA
17-1/4"L x 7-7/8"W x 17-1/2"H
®
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01342 v.04
